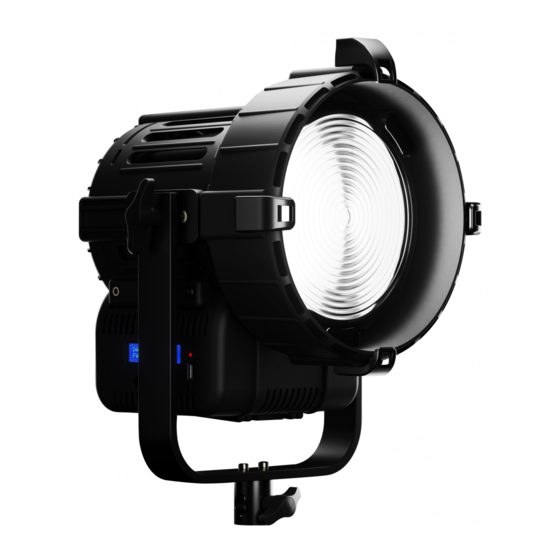

- Page 1 Fresnels PRO User Manual DAYLED 650 PRO / DAYLED 650 PRO DUAL COLOR MOVIELIGHT 300 PRO DAYLED 1000 PRO / DAYLED 1000 PRO DUAL COLOR MOVIELIGHT 300 PRO DUAL COLOR DAYLED 2000 PRO / DAYLED 2000 PRO DUAL COLOR Release 5.xx...
-
Page 2: Warranty
Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional. - Page 3 Instructions • Device for indoor use only. • Protection standard IP20. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
- Page 4 The items are also sold separately. Dayled 650 / 1000 95 Wh battery (cod.271) Dayled 2000 160 Wh battery (cod.271) This batteries allowS to power all Lupo Battery charger (cod.272) models with AC/DC functioning. This charger works with Lupo 95 Wh and 160 Wh batteries.
- Page 5 Getting Started with the Dayled PRO Dayled 2000 PRO Locking knob Tilt lock knob Barndoors DMX THROUGH screw lock (Female 5 PIN XLR) DMX INPUT Battery (Male 5 PIN XLR) connector (Male 4 PIN XLR) POWERCON IN POWERCON OUT ON/OFF (Max 15 A) FUSIBLE Barndoors...
-
Page 6: Operation Mode
Getting Started with the Movielight 300 Locking knob Parabolic DMX THROUGH Reflector (Female 5 PIN XLR) Tilt lock knob DMX INPUT Battery (Male 5 PIN XLR) connector (Male 3 PIN XLR) POWERCON IN POWERCON OUT ON/OFF (Max 15 A) FUSIBLE (15 A) Focus knob (Flood/spot) -
Page 7: Advanced Features
ADVANCED FEATURES Long press the « OK » button to enter the advanced features menu. 1. Use the buttons to navigate between the main MENU options: MANUAL / DMX / BLUETOOTH / DEVICE SETTINGS / RESET DEVICE / INFO. 2. Use the button to select an option. -
Page 8: Dmx Protocol
to adjust the light intensity from 0 to 100%. - INT.: Use the « » or « » buttons - LIGHTNING (ON/OFF): Select LIGHTNING ON by pressing the « » or « » buttons to disable the lightning effect. - MENU (ON/OFF): 1. -
Page 9: Device Settings
DMX Channel Protocol - 16 bit MODE CHANNELS USED DMX CHANNEL POSITION 1. DIMMER - byte 1 2. DIMMER - byte 2 3. COLOR TEMPERATURE - byte 1* CCT or MONOCOLOR 4. COLOR TEMPERATURE - byte 2* 5. STROBE - byte 1** 6. - Page 10 NOTE: After 1 minute of inactivity in the menu, the device automatically exits and returns to the last selected mode. Lupo srl - Via V. Sassi 28/30 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it / website: www.lupo.it...
