Daewoo AVS1322 - Compact Wooden DAB/FM Radio Manual

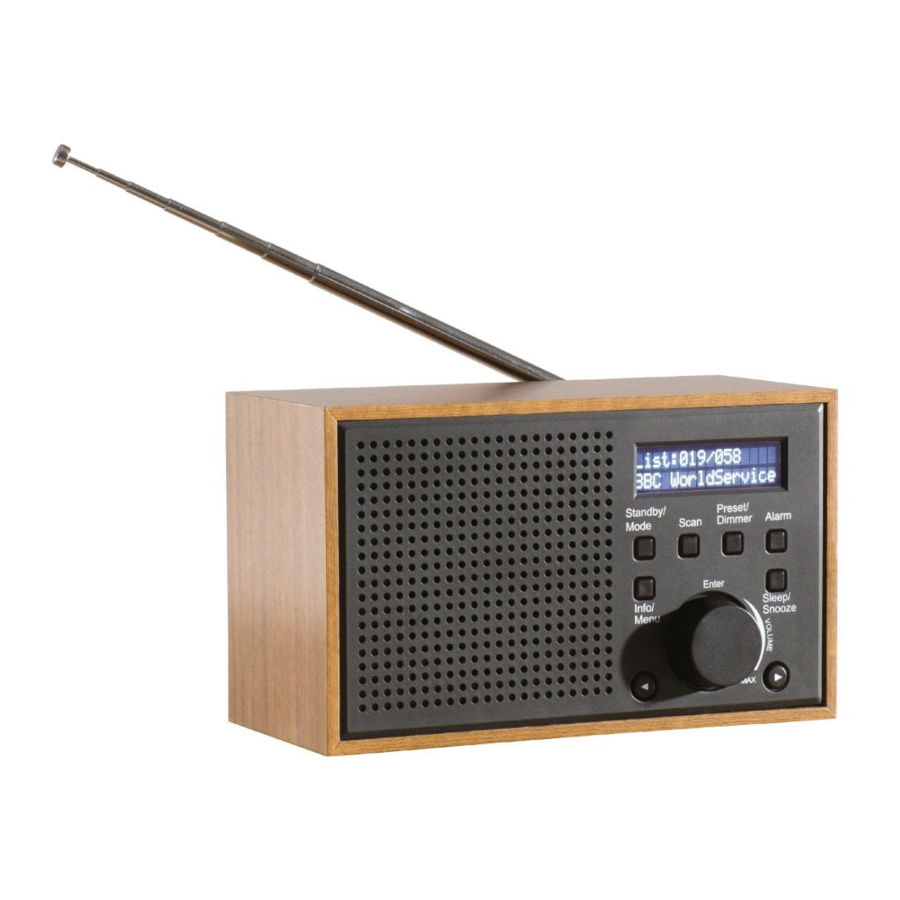

Description of Parts

Front Panel

1. Standby/Mode – Press to turn the radio on. Press and hold to put the radio into standby.
   Quickly press to select between DAB and FM radio modes.
2. Scan – Press Once to Scan the Radio Band.
3. LCD Display.
4. Preset/Dimmer – Press to Select Radio Presets. Whilst in standby, quickly press to select three brightness levels for the display.
5. Alarm – Press to enter alarm settings.
6. Wooden Outer Case.
7. Sleep/Snooze – Press and hold to enter the Sleep timer. After the alarm sounds, pressed to snooze the alarm.
8. Volume/Enter control.
9. Next button.
10. Previous button.
11. Info/Menu button – Press and hold to enter the Menu. Quick press to select the radio information on the display.
12. Loudspeaker.
13. Feet.

Rear Panel

14. Telescopic Aerial
15. Battery Compartment
16. Battery Compartment Catch
17. Micro USB DC Power Socket
18. Headphone Jack Socket
19. On/Off Switch
20. Bass Port
21. Mains Adaptor
22. Micro USB DC Power Plug

Before the first time you use your device

Please read these operating instructions thoroughly and keep them in a safe place for future reference.
Remove all packing materials and discard responsibly.

Using the Device with Batteries

• Open the Battery Compartment (15) and push the tab on the Battery Compartment Cover (16) to the right and remove (arrowed below)

• Insert four 1.5V AA Batteries (not supplied) into the battery compartment being careful to observe the polarity markings inside:
• Replace the Battery Compartment Cover.

Battery Warnings

• Do not mix old and new batteries together.
• It is recommended that batteries are removed from the radio if it is not to be used for a long period of time.
•
  There is a danger of explosion if the batteries are incorrectly fitted.
• Replace only with the same or equivalent battery type.
• Do not expose the radio to sunshine, fire, heat or similar.

• Keep new and used batteries away from children.
• If the battery compartment does not latch securely, stop using the product and keep it away from children.

Using the Device with the Mains Adaptor

• Insert the Small Micro USB DC Power Plug (22) of the Mains Adaptor (21) into Micro USB DC Power Socket (17) on the rear of the Radio.
• Insert the Mains Adaptor (21) into the nearest mains socket.
  NB if the mains adaptor is being used, it is recommended that the batteries (if fitted) are removed.

Operating Instructions

Using the DAB Radio

Listening to the unit

1. Ensure that the On/Off Switch (19) on the rear of the radio is in the on position and the Telescopic Aerial (14) is fully extended.
2. Ensure the radio has batteries inserted or has the Mains Adaptor (21) connected as described above.
3. Press Standby/Mode button (1) on the front panel until the radio powers up.
   NB If the radio is being used for the first time it will automatically scan the airwaves for DAB stations. The LCD Display (3) will show 'Scanning' and a bar to indicate the progress of the scan, and the total number of stations found so far. Once the scan has finished the radio will play the first alphanumerically found station.
4. The Date and Time will also automatically update on the LCD Display (3).
5. Adjust the volume using the Volume/Enter control (8).

Tuning in and Selecting DAB stations

Press the Previous (10) or Next (9) buttons to scroll through the available stations. Once the desired station is found, press the Volume/Enter control (8) to select the station.

Saving up to 10 DAB radio stations using the preset function

1. First tune the radio to the desired radio station as described above.
2. Press and hold the Preset/Dimmer button (4) to enter Preset save mode.
3. Press the Previous (10) or Next (9) buttons to scroll through the presets.
   NB if a preset is empty and there is no station saved the preset will show as 'Preset Store <x:(Empty)>'.
4. After selecting the desired preset press the Volume/Enter control (8) to save the tuned station into the preset selected – the LCD Display (3) will show 'Preset x stored' to confirm.
   NB x = preset number chosen.
5. Repeat the above steps to save more stations in the presets.

NB the preset number is shown at the bottom of the main screen on the LCD Display (3).

Recalling a preset DAB radio station using the preset function

• To recall a preset Radio Station, briefly press the Preset/Dimmer button (4) to enter the preset recall mode.
• Press the Previous (10) or Next (9) buttons to scroll through the presets.
  NB if a preset is empty and there is no station saved the preset will show as 'Preset Recall <x:(Empty)>'.
• After selecting the desired preset press the Volume/Enter control (8) to tune into the saved radio station.
  NB the preset number is shown at the bottom of the main screen on the LCD Display (3).

Selecting DAB Radio Information on the LCD Display

Briefly press the Info/Menu (11) button to select the various DAB radio station related information such as:

• Dynamic Label Segment (DLS) - Displays scrolling text information supplied by the broadcaster.
• Signal Strength - Displays a signal bar with the current station strength and signal error count.
• Signal error - Provides details of the signal error rate.
• Channel Frequency – Displays the radio station transmission frequency.
• Program Type (PTY) – Displays the program type and description: Pop Music, Rock Music, Talk, Jazz & Blues, etc.
• Time and Date - Displays the time and date information provided by the broadcaster.
• Audio Bit Rate – Displays the audio bit rate of the transmission.

Updating the DAB stations using the scan button

It may be necessary to retune your DAB radio in order to receive new stations being broadcast in your area or if a broadcaster has made any changes to an existing station and you can no longer receive it.
To update your DAB stations, press the Scan button (2) on the front panel and the DAB radio band will be updated. Any stations saved in the presets may need to be re-programmed after re-scanning.
NB Re-scanning may be required if the radio is moved to a new location i.e. after moving house.

DAB Radio Menu

Whilst listening to the DAB radio press and hold the Info/Menu button (11) to enter the DAB radio menu.
Use the Previous (10) or Next (9) buttons to scroll through the various menu options, press the Volume/Enter control (8) to select the desired option:

1. Time & Date – Manually set the Date and Time.
2. System Version – Shows the latest software version the radio has installed.
3. Factory Reset – Allows a full reset of the radio back to the original factory settings.

any radio stations previously saved in the presets and any personal settings will be lost after a Factory Reset.

Using the FM Radio

Listening to the FM Radio

1. Ensure the On/Off Switch (19) on the rear of the radio is in the on position and the Telescopic Aerial (14) is fully extended.
2. Ensure the radio has batteries inserted or has the Mains Adaptor (21) connected as described above.
3. Press Standby/Mode button (1) on the front panel until the radio powers up.
4. Briefly press the Standby/Mode button (1) to enter the FM radio mode.
5. Press the Previous (10) or Next (9) buttons to tune up and down the FM radio band.
   Holding either of the buttons down will search and stop at the next FM radio station.
   NB the radio tunes in 0.05MHz steps.
6. Adjust the volume using the Volume/Enter control (8).

Saving up to 10 FM radio stations using the preset function

1. First tune the radio to the desired radio station as described above.
2. Press and hold the Preset button (4) to enter Preset save mode.
3. Press the Previous (10) or Next (9) buttons to scroll through the presets.
   NB if a preset is empty and there is no station saved the preset will show as 'Preset Store <x:(Empty)>'.
4. After selecting the desired preset press the Volume/Enter control (8) to save the tuned station into the preset selected – the LCD Display (3) will show 'Preset x stored' to confirm.
   NB x = preset number chosen.
5. Repeat the above steps to save more stations in the presets.
   NB the preset number is shown at the bottom of the main screen on the LCD Display (3).

Recalling a preset FM radio station using the preset function

1. To recall a preset Radio Station, briefly press the Preset/Dimmer button (4) to enter the preset recall mode.
2. Press the Previous (10) or Next (9) buttons to scroll through the presets.
   NB if a preset is empty and there is no station saved the preset will show as 'Preset Recall <x:(Empty)>'.
3. After selecting the desired preset press the Volume/Enter control (8) to tune into the saved radio station.
   NB the preset number is shown at the bottom of the main screen on the LCD Display (3).

Selecting FM Radio Information on the LCD Display

Briefly press the Info/Menu (11) button to select the various FM radio station related information such as:

• Radio Text - Displays scrolling text information supplied by the broadcaster.
• Program Type –Displays the description of the program provided by the broadcaster.
• Signal Strength –Displays a signal bar showing the strength of the current radio station.
• Time and Date –Displays the current time and date provided by the broadcaster.
• Frequency – Displays the radio station transmission frequency.
• Audio Type – Displays whether the audio is in Mono or Stereo.

FM Radio Menu

Whilst listening to the FM radio press and hold the Info/Menu button (11) to enter the FM radio menu.
Use the Previous (10) or Next (8) buttons to scroll through the various menu options, press the Volume/Enter control (9) to select the desired option:

1. Time & Date – Manually set the Date and Time.
2. System Version – Shows the latest software version the radio has installed.
3. Factory Reset – Allows a full reset of the radio back to the original factory settings. NB any radio stations previously saved in the presets will be lost after a Factory Reset.
4. FM Scanning – Select from scanning strong stations 'Only' or scan all stations by selecting 'All'.

Setting and Using the Alarm Function

1. Press the Alarm button (5) and then press the Volume/Enter control (8) until the "Alarm 1 OFF" flashes on the LCD Display (3).
2. Press the Previous (10) or Next (9) controls to select "Alarm 1 ON", press the Volume/Enter control (8) to confirm selection.
3. The hours will flash, press the Previous (10) or Next (9) controls to select the current hour, press the Volume/Enter control (8) to confirm selection.
4. The minutes will flash, press the Previous (10) or Next (9) controls to select the current minute, press the Volume/Enter control (8) to confirm selection.
5. "Vol" will flash on the LCD Display (3), press the Previous (10) or Next (9) controls to select the alarm volume (select from 0 – 15 zero being the lowest and 15 the highest volume), press the Volume/Enter control (8) to confirm selection.
6. The alarm sound source "SRC" will flash on the LCD Display (3), press the Previous (10) or Next (9) controls to select the alarm source to wake up to: Alarm/DAB/FM, press the Volume/Enter control (8) to confirm selection.
7. The alarm"Mode" will flash on the LCD Display (3), press the Previous (10) or Next (9) controls to select when the alarm will go off: Once/Daily/Weekends/Weekdays, press the Volume/Enter control (8) to confirm selection.

NB to set alarm 2:

1. With the radio on, press theAlarm button (5) twice and then press the Volume/Enter control (8) until the "Alarm 2 OFF" flashes on the LCD Display (3).
2. Press the Previous (10) or Next (9) controls to select "Alarm 2 ON", press the Volume/Enter control (8) to confirm selection. Continue from Step 3 above to set alarm2.

NOTE: You can press the Info/Menu button (11) to skip back one step while the setting the alarm.

Display Dimming

With the radio off, press the Preset/Dimmer button (4) to vary the brightness of the LCD display (3).

Silencing the alarm

Press the Standby/Mode button (1) on the front panel to silence the alarm.

Snooze Mode

After the alarm sounds, the Sleep/Snooze button (7) can be pressed to snooze the alarm. The alarm will be silent for a further 9 minutes before sounding again. Press the Standby/Mode button (1) to cancel the snooze mode and alarm.

Switching off the alarm

Press the Alarm button (5) (once for alarm 1 twice for alarm 2) and then press the Volume/Enter control (8) until the "Alarm 1 (or 2) ON" flashes on the LCD Display (3). Press the Previous (10) or Next (9) controls to select "Alarm 1 (or 2) OFF", press the Volume/Enter control (8) to confirm selection.

Sleep Timer

The sleep timer allows you to listen to music for a set time before the radio turns itself off automatically.

1. Switch the radio on using the Standby/Mode button (1).
2. Ensure the radio is tuned into the desired station.
3. Press and hold the Sleep/Snooze button (7) to enter sleep mode.
4. Press the Previous (10) or Next (9) controls to select the sleep time duration: OFF, 120, 90, 60, 45, 30, 15 or 5 minutes. Press the Volume/Enter control (8) to confirm selection.
5. The radio will now play for the selected time which will be shown counting down on the LCD Display (3) in the top right-hand corner, then go into standby (off) mode.
6. To cancel the sleep timer, repeat the above steps and select Sleep Timer "OFF".

Using the Headphone Output

Insert the Headphones 3.5mm jack plug into the Headphone Jack Socket (18) on the rear panel.
Adjust the volume level as desired using the Volume/Enter control (8).

Care and Use of your Product

• Always disconnect the DAB Radio from the mains power supply before cleaning.
• Clean outside of the DAB Radio with a clean damp cloth. Never clean with harsh or abrasive cleaners.
• Do not submerge the DAB Radio or its Power Supply in water or any other liquids.

Technical Specification

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this DAB Radio.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Always use this appliance on a solid, level, non-flammable surface.
• Ensure that there is clearance of at least 100mm (4 Inches) minimum around the Radio for sufficient ventilation.
• Ensure that the ventilation openings are not covered with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the Radio.
• Do not position the Radio close to sources of heat such as radiators, heaters, other electronic equipment, etc.
• The Radio shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Do not immerse this appliance or its supply in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always remove the mains supply from the mains socket when the Radio is not in use, the mains supply must be accessible at all times.
• Close supervision is required when using this appliance near children.
• Never leave this appliance within reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Do not use this appliance outdoors.
• It is imperative to unplug the power supply after the appliance has been used, before it is cleaned and whilst being repaired.
• Unplug after each use. Grasp the supply, not the cord.
• Repairs to electrical appliances should only be performed by qualified personnel. Improper repairs may place the user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains supply to ensure no damage is evident. Should there be any signs of damage the product should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard
• Do not allow the power cable to hang over sharp edges or come in contact with hot surfaces.
• Do not run the power cable under carpets, rugs, etc.
• This product is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by supplier.
• Do not use this product for anything other than its intended use.
• Do not push objects into any openings as damage to the product and/or electric shock may occur.

ESG Ltd
Manchester M3 1JS
www.esgltd.com

Documents / Resources

References

• Eurosonic Group | ESG Ltd

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Daewoo AVS1322 - Compact Wooden DAB/FM Radio Manual
