Daewoo AVS1323 User Manual

Daewoo AVS1323 User Manual

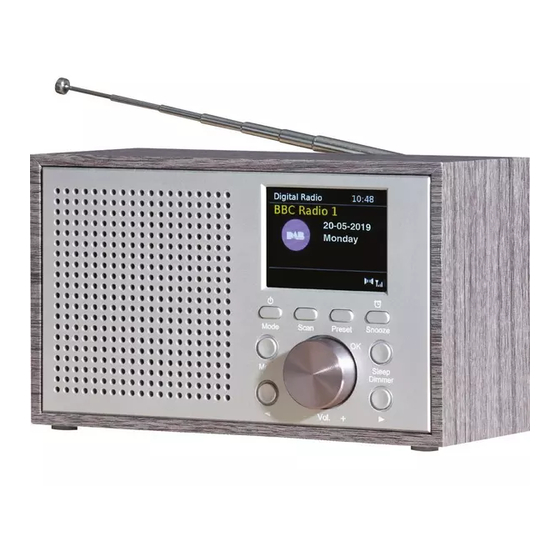

Compact wooden dab/fm radio with colour lcd display
Hide thumbs Also See for AVS1323:

Advertisement

Quick Links

Compact Wooden DAB/FM Radio
with Colour LCD Display
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVS1323 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daewoo AVS1323

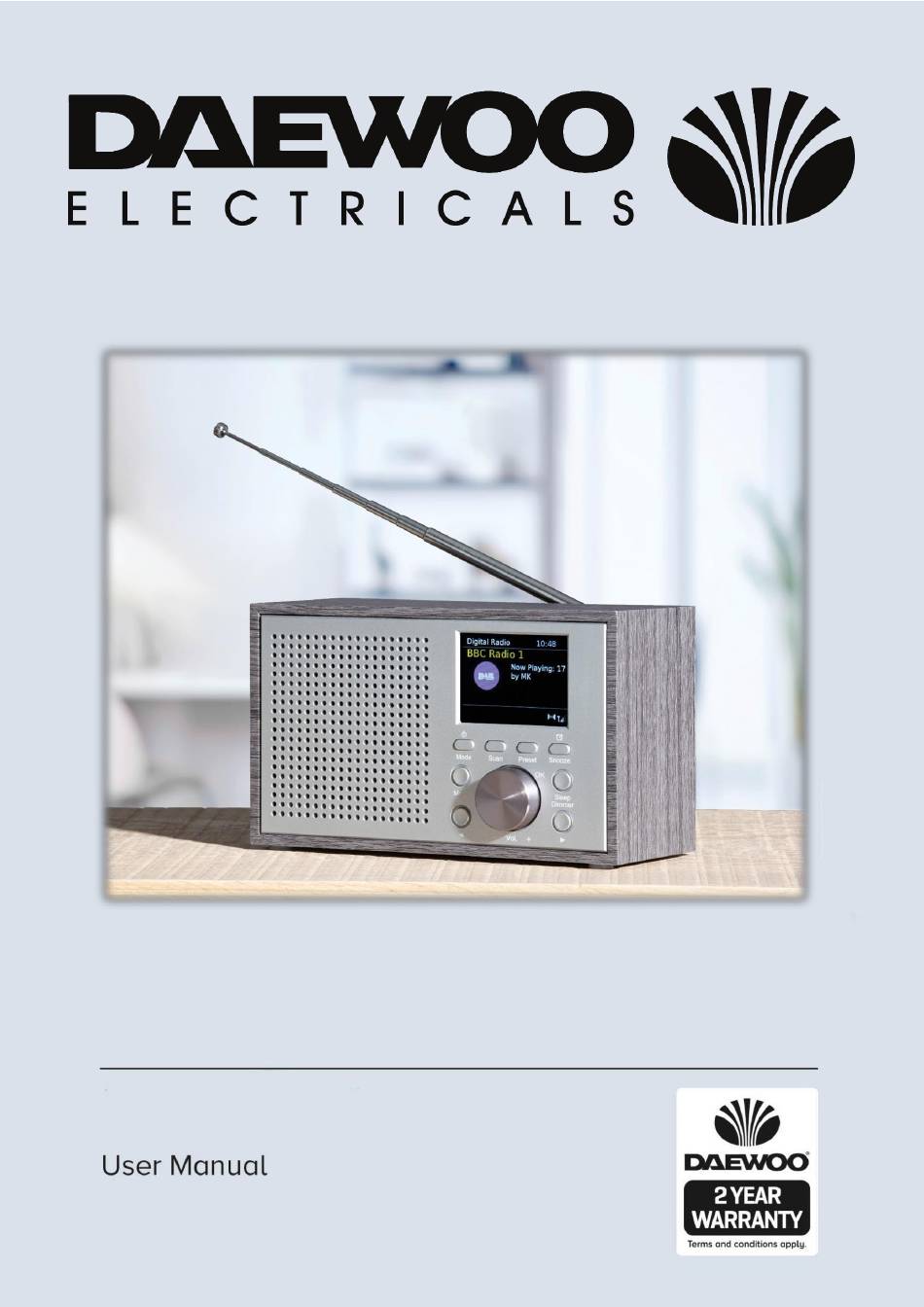

  • Page 1 Compact Wooden DAB/FM Radio with Colour LCD Display...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference: • Read and familiarise yourself with all operating instructions before using this DAB Radio. • Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
  • Page 3 and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
  • Page 4 Description of Parts – Front Panel Standby/Mode – Press to turn the radio on. Press and hold to put the radio into standby. Quickly press to select between DAB and FM radio modes. Scan – Press Once to Scan the Radio Band. Colour LCD Display Preset –...
  • Page 5 Description of Parts – Rear Panel 14. Telescopic Aerial 15. Battery Compartment 16. Battery Compartment Catch 17. Upgrade port 18. Headphone Jack Socket 19. DC Power Socket 20. On/Off Switch 21. Bass Port 22. Mains Adaptor 23. Small DC Power Plug Before the first time you use your DAB Radio Please read these operating instructions thoroughly and keep them in a safe place for future reference.
  • Page 6 Battery Warnings • Do not mix old and new batteries together. • It is recommended that batteries are removed from the radio if it is not to be used for a long period of time. • CAUTION: There is a danger of explosion if the batteries are incorrectly fitted. •...
  • Page 7 Tuning in and Selecting DAB stations Press the Previous (10) or Next (8) buttons to scroll through the available stations. Once the desired station is found, press the Volume/Select control (9) to select the station. Saving up to 10 DAB radio stations using the preset function 1.
  • Page 8 Use the Previous (10) or Next (8) buttons or rotate the Volume/Select control (9) to scroll through the various menu options, press the Volume/Select control (9) to select the desired option: a. Station List – shows a full list of DAB stations available. b.
  • Page 9 NB x = preset number chosen. 5. Repeat the above steps to save more stations in the presets. NB the preset number is shown at the bottom of the main screen on the LCD Display (3). Recalling a preset FM radio station using the preset function 1.
  • Page 10 Operating Instructions – Setting and Using the Alarm Function 1. Press the Alarm/Snooze button (5) until the Alarm 1 and Alarm 2 appears on the LCD Display (3). • Rotate the Volume/Select control (9) to select either Alarm 1 or Alarm 2. Press to confirm selection. NB Alarm 1 and 2 settings are the same procedure, follow the setting of Alarm 1 when setting Alarm 2: 2.
  • Page 11: Technical Specification

    • Clean outside of the DAB Radio with a clean damp cloth. Never clean with harsh or abrasive cleaners. • Do not submerge the DAB Radio or its Power Supply in water or any other liquids. Technical Specification AVS1323 Model Number 4x 1.5V AA Batteries or DC 5.9V @1.2A Power Supply Input: AC 100-240V ~ 50/60Hz 0.15A.
  • Page 12 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Daewoo Electricals is a registered trademark. Produced and imported under licence by ESG Ltd Manchester M3 1JS www.esgltd.com...
