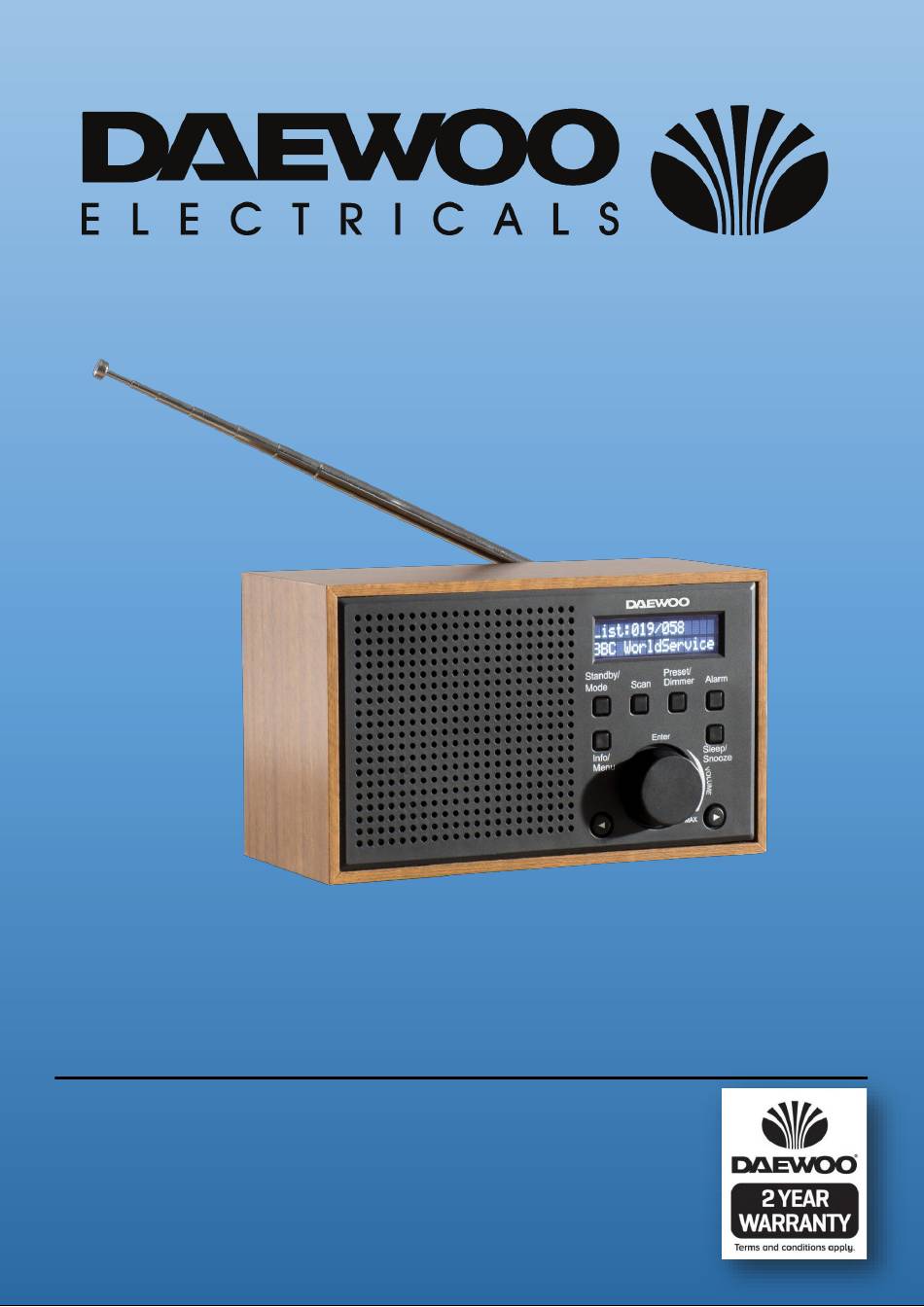

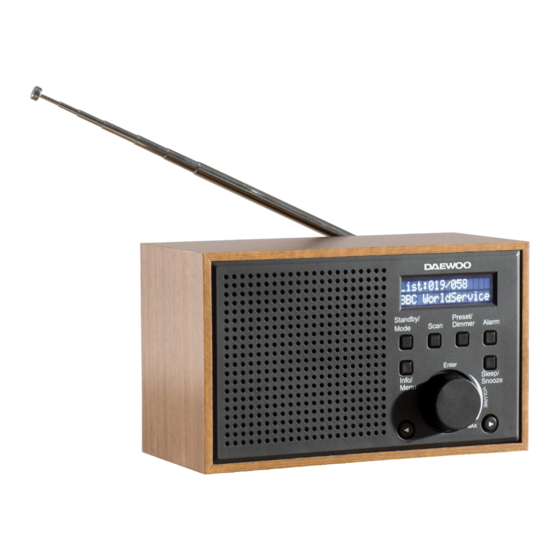

- Page 1 Compact Wooden DAB/FM Radio AVS1322 User Manual Compact Wooden DAB/FM Radio AVS1322 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Important Safeguards
Compact Wooden DAB/FM Radio AVS1322 User Manual IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference: • Read and familiarise yourself with all operating instructions before using this DAB Radio. - Page 3 Compact Wooden DAB/FM Radio AVS1322 User Manual • Children of less than 3 years should be kept away unless continuously supervised. • Do not use this appliance outdoors. • It is imperative to unplug the power supply after the appliance has been used, before it is cleaned and whilst being repaired.
- Page 4 Compact Wooden DAB/FM Radio AVS1322 User Manual Description of Parts – Front Panel 1. Standby/Mode – Press to turn the radio on. Press and hold to put the radio into standby. Quickly press to select between DAB and FM radio modes.
- Page 5 Compact Wooden DAB/FM Radio AVS1322 User Manual Description of Parts – Rear Panel 14.Telescopic Aerial 15.Battery Compartment 16.Battery Compartment Catch 17.Micro USB DC Power Socket 18.Headphone Jack Socket 19.On/Off Switch 20.Bass Port 21.Mains Adaptor 22.Micro USB DC Power Plug Before the first time you use your DAB Radio Please read these operating instructions thoroughly and keep them in a safe place for future reference.
- Page 6 Compact Wooden DAB/FM Radio AVS1322 User Manual Battery Warnings • Do not mix old and new batteries together. • It is recommended that batteries are removed from the radio if it is not to be used for a long period of time.
- Page 7 Compact Wooden DAB/FM Radio AVS1322 User Manual Tuning in and Selecting DAB stations Press the Previous (10) or Next (9) buttons to scroll through the available stations. Once the desired station is found, press the Volume/Enter control (8) to select the station.
- Page 8 Compact Wooden DAB/FM Radio AVS1322 User Manual DAB Radio Menu Whilst listening to the DAB radio press and hold the Info/Menu button (11) to enter the DAB radio menu. Use the Previous (10) or Next (9) buttons to scroll through the various menu options, press the Volume/Enter control (8) to select the desired option: a.
- Page 9 Compact Wooden DAB/FM Radio AVS1322 User Manual Selecting FM Radio Information on the LCD Display Briefly press the Info/Menu (11) button to select the various FM radio station related information such as: • Radio Text - Displays scrolling text information supplied by the broadcaster.
- Page 10 Compact Wooden DAB/FM Radio AVS1322 User Manual Display Dimming With the radio off, press the Preset/Dimmer button (4) to vary the brightness of the LCD display (3). Silencing the alarm Press the Standby/Mode button (1) on the front panel to silence the alarm.
- Page 11 Compact Wooden DAB/FM Radio AVS1322 User Manual Technical Specification Model Number AVS1322 Power Supply 4x 1.5V AA Batteries or DC 5.0V @1.0A 5.0W Mains Adaptor Input: AC 100-240V ~ 50/60Hz 0.15A Output: DC 5.0V @1.0A 5.0W Audio Output Power 2.0W...
- Page 12 • The manufacturer disclaims any liability for incidental or consequential damages. • The guarantee is in addition to, and does not diminish, your statutory or legal rights. Daewoo Electricals is a registered trademark. Produced and imported under licence by ESG Ltd Manchester M3 1JS www.esgltd.com...
