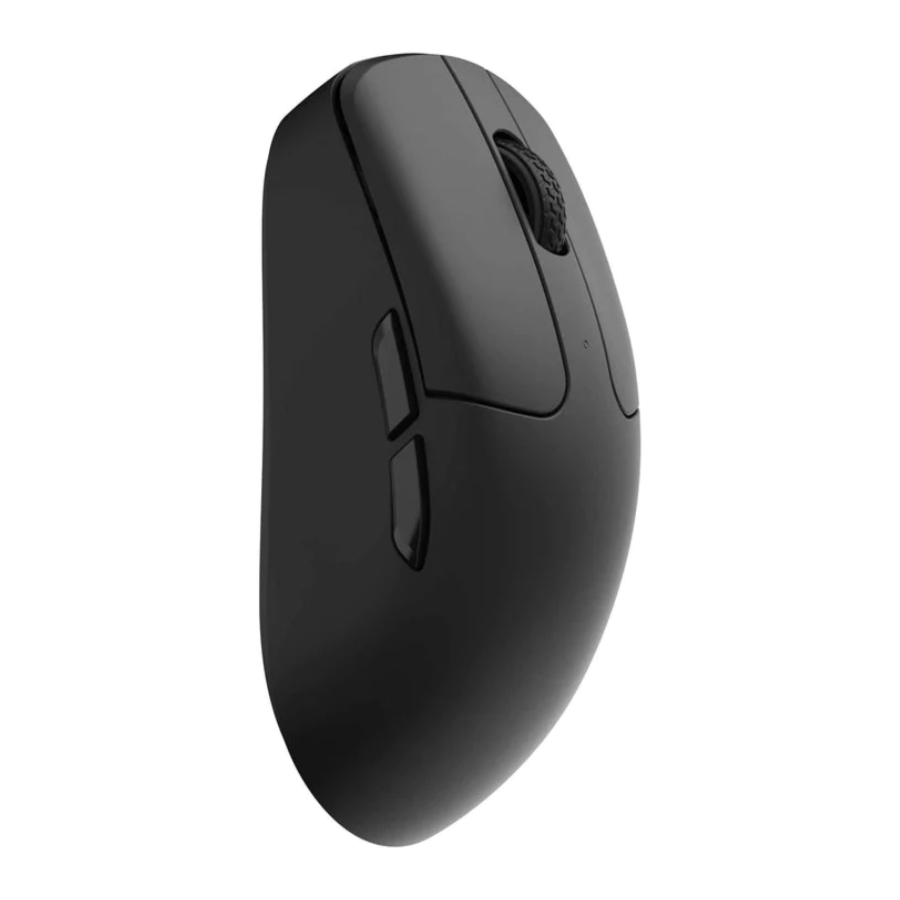

Keychron M2 Mini - Wireless Mouse Manual

Overview

1. Left button
2. Right button
3. Middle wheel button
4. Forward button
5. Backward button
6. Mouse indicator
7. DPI button
8. Modes toggle
9. Report rate button
10. 2.4GHz Type-A receiver
11. 2.4GHzType-C receiver

3 Modes of connection

Wired Mode

1. When the mode switch is in "OFF"position, the mouse won't respond if the cable is not connected
2. Connect the cable to the Type C port of the mouse and the USB port on the device. The mouse is ready to use while the indicator lights up.

   • When connected by cable, the mode will default to wired mode even if the toggle is in Bluetooth mode or2.4GHzmode.

2.4GHz Mode

1. Switch to "G" mode(2.4GHz mode), and the mouse will automatically turn on 2.4GHz paring. The mouse indicator will slowly flash green.

2. Find the 2.4GHz receiver and connect it to the device's USB/Type-C port. Once successfully connected, the mouse indicator will turn green and stay on for 3 seconds before dimming off. The mouse is now ready for use.
3. In 2.4GHzparing mode, the mouse indicator will slowly blink green for 3 minutes. If the mouse is not connected within 3 minutes, the indicator will turn off. If you need to reconnect, hold both the "Left button Forward button" for 4 seconds to reenter pairing mode.

   • If you need to repair the connection in 2.4GHzmode, please unplug the 2.4GHzreceiverfirst. Then, hold both the "Left button + Forward button" for 4 seconds, wait for the green light indicator to start flashing, and plug the 2.4GHz receiver back in to complete the pairing process.

Note: It is recommended that when pairing the M2 mini in 2.4GHzmode, the mouse should be within 20cm of the receiver.
Note: For the best wireless experience, we recommend using the extension adapter for receiver and putting the 2.4GHz receiver somewhere on your desk close to your mouse for a lower rate of latency and fewer signal interferences.

Bluetooth mode

1. Switch to "B" Mode (Bluetooth), and the mouse will automatically turn on Bluetooth pairing mode. The mouse indicator will slowly flash blue.

2. Open the Bluetooth settings, search for a device named "KeychronM2 mini", then click "connect"to complete paring.
3. When in Bluetooth pairing mode, the mouse indicator will slowly blink in blue for 3 minutes. If it's not connected within 3 minutes, the mouse indicator will turn off. If you need to reconnect, you need to hold the "Left button + Forward button" for 4 seconds to reenter pairing mode. Theindicator will slowly blink blue.
4. If the M2 mini is in Bluetooth mode and needs to pair with a new device, hold both the "Left button + Forward button" for 4 seconds and wait for the blue light to flash on. At this point, Bluetooth has re-entered pairing mode, and you can connect the new device to the M2 mini.


Status indicator

DPI indicator

Report Rate indicator

• Report Rate = Polling Rate


How to factory reset

Hold down both the "DPI" button and "Report Rate"button for 4 seconds, and all the LED lights on the mouse will blink. It will blink three times to indicate that the factory reset is successful.

Auto-Sleep mode

Auto-Sleep mode will not be activated when in wired mode. When in 2.4GHz mode or Bluetooth mode, the mouse will go to Auto-Sleep mode after15 minutes of sitting idle to save the battery. Move or click the mouse to wake it up.

Driver Software

The Keychron M2 mini mouse driver can be downloaded from www.keychron.com. If the driver software can't connect to the
mouse, please contact us for technical support.

Charging indicator explanation

• The mouse is compatible with all USB ports. For the best signal and charging speed, connecting to the USB3.0 port is recommended when charging or in use.
• If the mouse is connected by the Type-C cable when charging but not paired with any devices:
  • The mouse indicator will stay RED when charging.
  • The mouse indicator will stay GREEN when fully charged.

Note: The product supports up to 5V charging voltage and 300mA charging Current. We are not responsible for any problems caused by improper recharging.

What's in the box

Mouse x 1
Type-C to Type-C cable x 1
Type-C receiver x 1
Type-A receiver x 1
Extension Adapter x 1
Type-A to Type-C adapter x 1
User manual x 1

Mouse specification

Size: 117*64*38mm
Weight: 50 ± 3g
Report Rate (polling rate): 125Hz(White) - 500Hz(Blue) - 1000Hz(Red)
Sensor: PixArt 3395
Resolution: 100 - 26000DPI
Mouse micro switches: Huano Micro Switch (80 million clicks life time)
2.4GHz/ Bluetooth connection range: Approx10mof open space
Battery capacity: 600mAh
Usage duration: 70 Hours
Recharge time: 2 Hours
Charging port: Type-C
Connection mode: 2.4GHz - Bluetooth - Wired
Device name: Keychron M2 mini
