Pulsar PSDIN2 Manual

Holder din/ps/psb2

PSDIN2

Holder DIN/PS/PSB2

v1.1

Edition: 5 from 07

August 2012

Supercedes edition: 4 from 07

February 2012

1. Description.

The PSDIN2 holder is designed as an accessory for the following power supply units: PS1001270,

PS15012100, PS20012140, PS1002435, PS1502450, PS2002470, PSB1001270, PSB15512110, PSB1002435,

PSB1552455, PSBOC1001270, PSBOC15512110, PSBOC1002435, PSBOC1552455.. The PSDIN2 allows the

mounting of the abovementioned power supplies onto the DIN rail. Included with the holder is a set of screws (5 ea.

M3x4) for mounting of the power supply to the holder.

The PSDIN2 holder should be mounted in an enclosed space (inside the case), with normal humidity

(RH=90% maximum without condensation) and a temperature in the range of -10°C to +40° C. Free flow of a ir

around the power supply should be ensured.

Before beginning installation, ensure that the power in the 230V AC power supply circuit is

disconnected.

All service and maintenance should be performed with the 230V AC power supply

disconnected.

1. Before beginning installation, ensure that the power in the 230V AC power supply circuit is

disconnected.

2. The power supply is to be mounted to the PSDIN2 holder using the M3 screws included with the holder.

3. The power supply is to be mounted onto the DIN rail together with the holder.

4. Electrical connection should be performed according to the power supply instructions.

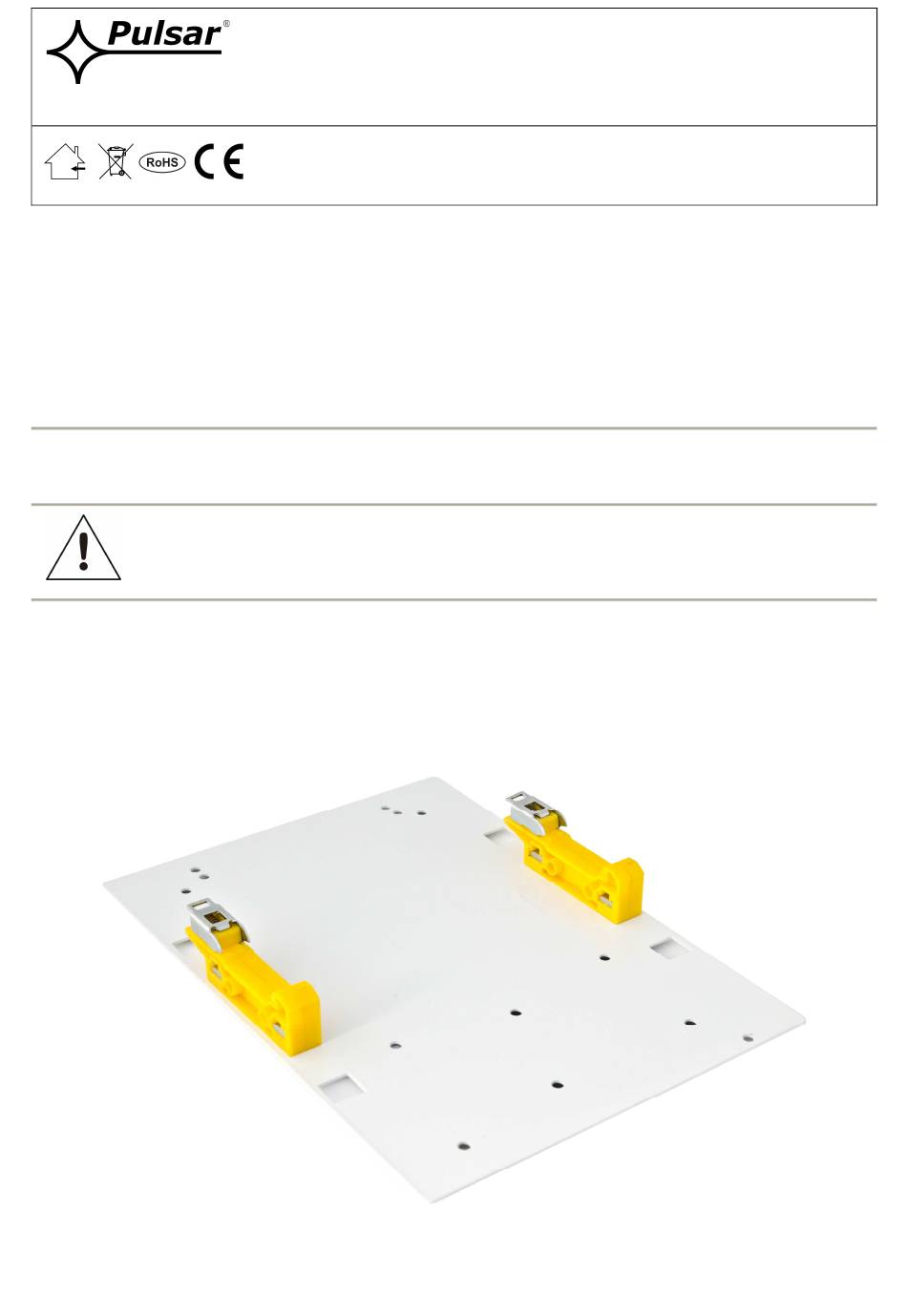

Fig. 1. View of the PSDIN2 holder.
