Extron electronics SMA-2 Installation Manual

SMA-2 • Installation Guide
IMPORTANT NOTE:
Go to www.extron.com
Overview
The Extron SMA-2 swivel mount adapter kit is used for mounting tabletop
TouchLink Pro touchpanels. For a list of all compatible TouchLink Pro
touchpanels, go the the SMA-2 product page at www.extron.com.
The assembly can be rotated up to 360°, providing easy access for multiple
users sitting around a table. The provided set screws interact with the tooth
on the swivel disk to restrict the rotation of the touchpanel in either direction
within the limits defined by the set screws. This prevents cable strain and
tangling.
ATTENTION:
• If the SMA-2 is being installed into fine furniture, it is best to hire a
licensed, bonded craftsperson to cut the access hole and perform
the physical installation so the surface will not be damaged.
• S'il est prévu d'installer le SMA-2 dans du beau mobilier, il est
préférable de faire appel à un artisan autorisé et qualifié pour
couper le trou d'accès et réaliser l'installation de telle façon que la
surface ne soit pas endommagée.
Step One — Prepare the Site
Choose a location for the SMA-2. The mounting site must be free of
obstructions above and below the table so that the touchpanel can rotate
without the cables getting tangled.
Step Two — Secure the Base Plate to the Table
Secure the set screw(s).

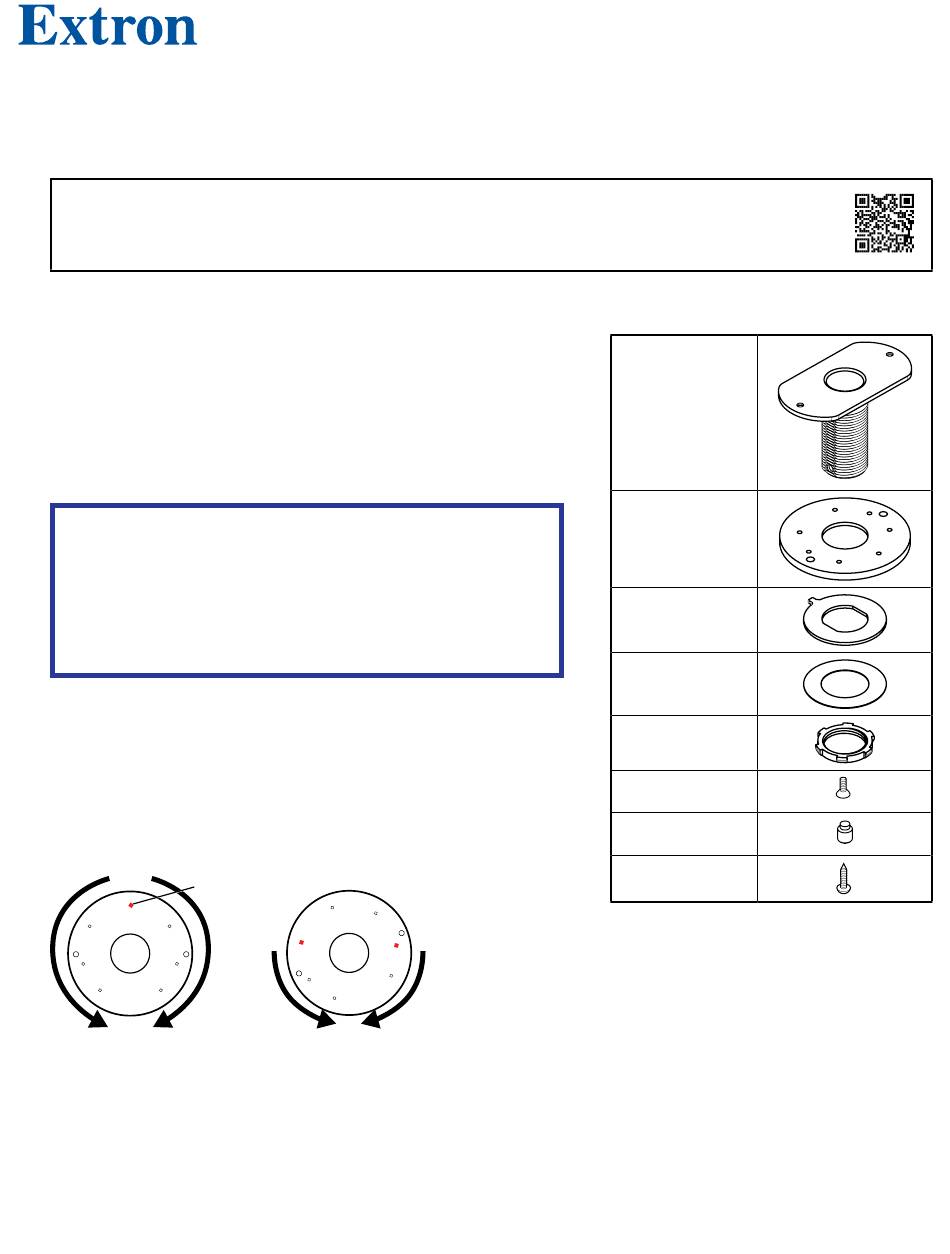

Figure 1. Placing Set Screws (shown in red)
1. Before securing the base plate to the bottom of the table, use the
provided hex key to insert the set screws into the base plate. Figure 1
shows how to position the set screws to limit clockwise and counter-
clockwise rotation. You must have at least one set screw to prevent the
cables from becoming tangled and strained.
for the complete user guide, installation instructions, and specifications.

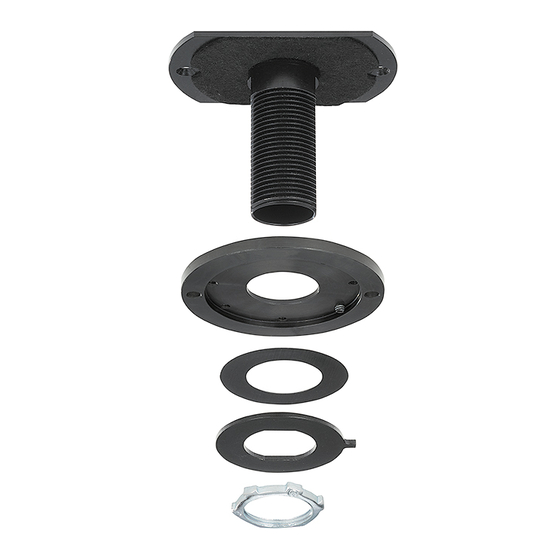

SMA-2 Parts
Touchpanel
mounting plate with
threaded barrel
Base plate
Swivel disk
Frictionless disk
Lock nut
#6-32 flat head
screws (2)
#6-32 set screws
(2)
#6 round head
wood screws (2)
The kit also includes a 1/16" (1.59 mm) hex key
(not shown).
1
