TALIA
1200W Vari-White from 2.700 to 6.500 °K - Enhanced CRI > 95
White light, with Adjustable Correlated Colour Temperature
INSTRUCTION MANUAL
MANUFACTURER
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
www.desisti.itE-mail:
desisti@desisti.it
This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA
Revised on March 2021
Advertisement
Table of Contents
Related Manuals for Desisti TALIA
Summary of Contents for Desisti TALIA

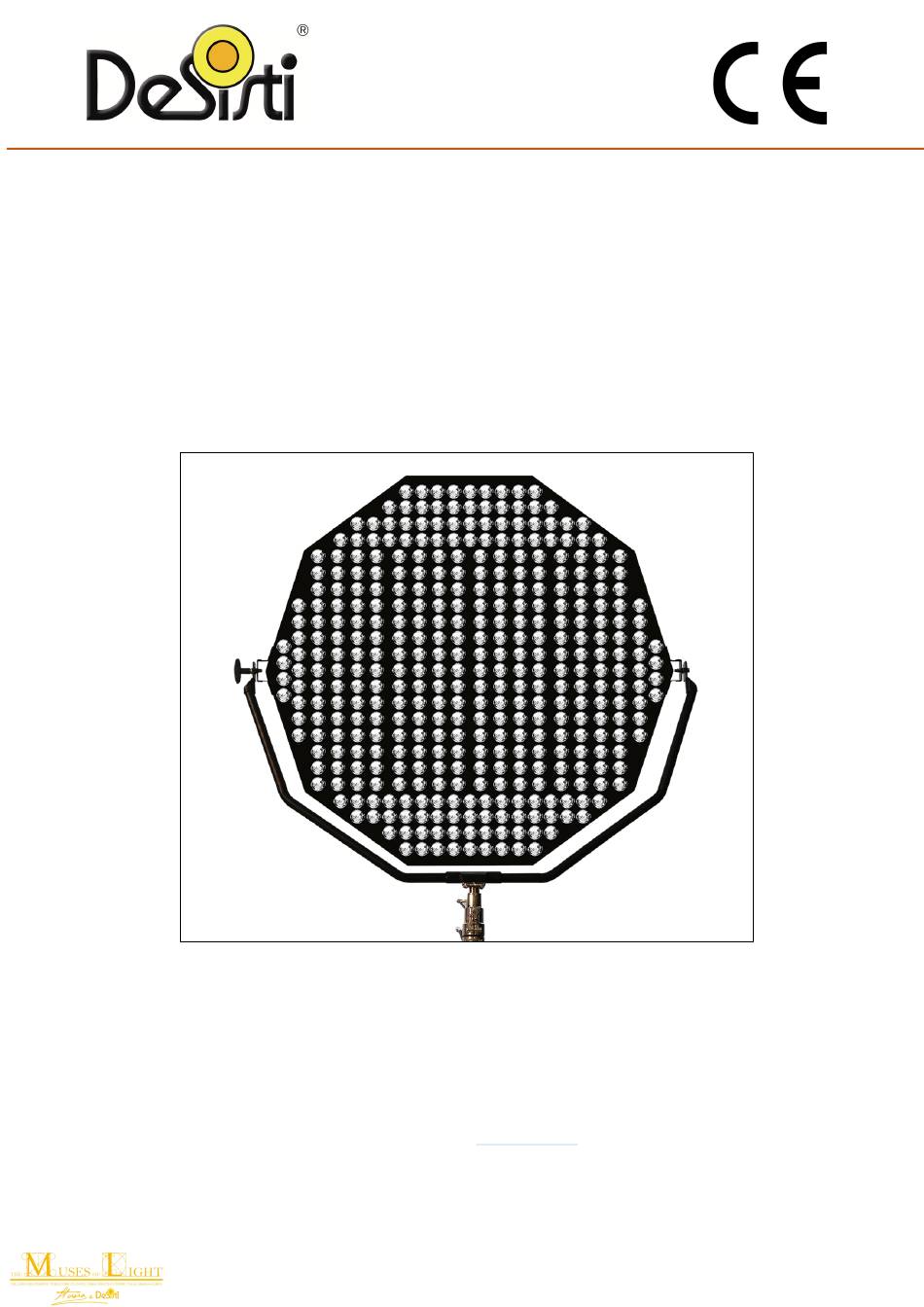

- Page 1 INSTRUCTION MANUAL MANUFACTURER ILT Italy S.r.l. Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy). Tel. +39/06/902901 Fax. +39/06/90231051 www.desisti.itE-mail: desisti@desisti.it This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 2 Congratulations on your purchase of TALIA Vari White lighting fixture. TALIA is a high power, highly efficient spotlight using DE SISTI modular PCB boards system with a total of 1720 LEDs combined with 430 Extra Wide Flood lenses. The Lighting Fixture is DMX Controlled and includes a number of param-...
-
Page 3: Safety Instructions
WARNING: THIS LUMINAIRE MUST BE GROUNDED WARNING: Disconnect Power CORDS before any maintenance work or opening the FUSE HOLDER. RISK OF SERIOUS INJURY. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021... -
Page 4: Working Conditions
D. A suitable secondary safety suspension device (safety cable, chain or equivalent) must be fitted between the sus- pension point and the eyelet at the front of the body. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021... -
Page 5: Installation Instructions
Make sure the local power voltage is within the range specified. If so; connect the power cable and turn the power on. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021... -
Page 6: Local Menu
IMPORTANT: Utilize only the safety PIN provided with the unit! 6. LOCAL MENU THE MUSES OF LIGHT – TALIA has a GRAPHIC DISPLAY backlit, with a local knob, having a push/click function in addition to the rotation, and 7 control buttons: Display It is a Graphic, backlit LCD Display. - Page 7 Home Display it will UNLINK the W-DMX LUMENRADIO MODULE from the SENDER. If pushed from inside THE MENU AND MENU VOICE will work as DOWN ARROW. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
-
Page 8: Micro Usb Port
Micro USB Port Connected to a Windows PC with the proper De Sisti software installed it will allow Firmware upgrades once released. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021... - Page 9 The following are the BASIC FUNCTIONS and COMMANDS that are provided on the LOCAL MENU of the LED DEVICE. The unit is provided with a USER MENU accessible instantly on the product. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
-
Page 10: Basic Functions
To exit the Menu push button 1, at first press the unit it will show an Info Screen showing FW version, Fan speed and LED and Driver(s) temperature. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021... - Page 11 Push Button 2 to enter the menu voice and Button 3 and 4 to se- lect the desired mode. To confirm push button 2. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 12 Push Button 2 to enter the menu voice and Button 3 and 4 to reach the desired value. To confirm push button 2. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 13 Push Button 2 to enter the menu voice and Button 3 and 4 to reach the desired value. To con- firm push button 2. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 14 DMX signal received with the wireless module through the DMX OUT cable plus. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 15 Knob to switch to the dimming (the display will write “Man. Dimming” and will show a per- centage value ). This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 16 To turn on the RF Module to con- nect to a Wireless DMX Sender keep pushed the Button 3 for 3 seconds. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 17 When the unit is in “Storaro mode” pushing the button SET 1, SET2 and SET 3 will recall 3 preset color tem- peratures: This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
-
Page 18: Firmware Upgrade
Unpack the ZIP file provided by your local reseller or the De Sisti website. You will unpack: DRIVER USB BOOTLOADER This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021... - Page 19 6) Enter the folder where you have previously saved the CPU Firmware file and open it. WARNING: The file name MUST Start with “CPU_xxxxx”. 7) Software will show the log “Hex file loaded suc- cessfully. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 20 DAMAGE the unit DRIVER it must be done by or with the support of a qualified DE SISTI assistant person. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
- Page 21 ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it 7. DIMENSIONS This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
-
Page 22: Periodic Inspection & Maintenance
Help preserve the environment! Ensure that this product is recycled at the end of its life. This product is in compliance with the RoHS and WEEE directives. This Manual is applicable to the De Sisti – Storaro The Muses of Light - TALIA Revised on March 2021...
