Piccoletto VW Vari-White (100.VW)
MANUFACTURER
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
www.desisti.itE-mail:
desisti@desisti.it
1. INTRODUCTION
This Manual is applicable to the De Sisti PICCOLETTO Vari-White
ILT ITALY srl
Via Cancelliera, 10/a
00041 Albano Laziale (Rome) Italy
tel. +39 06-902901 fax +39 06-90231051
www.desisti.it
30W Vari-White from 2.700 to 6.500 °K - Enhanced CRI > 94
White light, with Adjustable Correlated Colour Temperature
INSTRUCTION MANUAL
Congratulations on your purchase of a Piccoletto Vari White lighting fixture.
The PICCOLETTO is a high efficiency Fresnel lens spotlight using a De Sisti 30W Vari-White LED ARRAY and
with an enhanced CRI (Color Rendering Index) higher than 95 for appropriate chromacity performances. The
PICCOLETTO provides the ability to tune the Correlated Color Temperature from a minimum of 2.800°K to a
maximum of 6.600°K with an enhanced CRI (Color Rendering Index) higher than 95 at any CCT within the
range.
The fixture combines the classical SPOT/FLOOD beam control on an equivalent FOCUS RANGE to a
conventional lamp Fresnel, with an excellent barn door cutting
REPRESENTATIVE
Revised on July 2018

Advertisement

Table of Contents
loading

Related Manuals for Desisti Piccoletto VW

Summary of Contents for Desisti Piccoletto VW

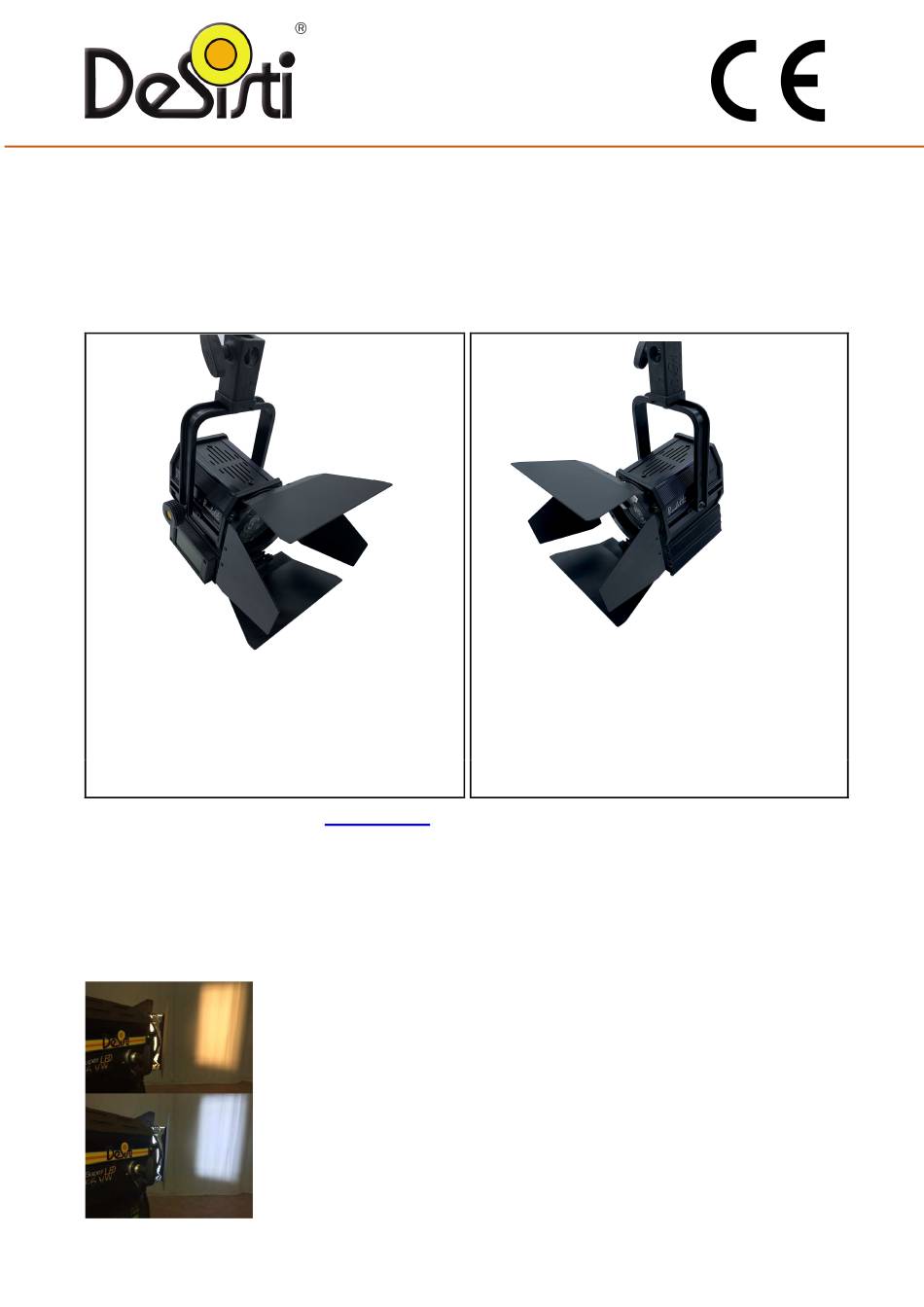

  • Page 1 Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it Piccoletto VW Vari-White (100.VW) 30W Vari-White from 2.700 to 6.500 °K - Enhanced CRI > 94 White light, with Adjustable Correlated Colour Temperature INSTRUCTION MANUAL...
