(white light, with Tunable Correlated Color Temperature from 2.800 to 6.600°K)
Manual Operated
MANUFACTURER
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
U.R.L.: www.desisti.it
1. INTRODUCTION
Congratulations on your purchase of a SOFT LED 2 Vari-White lighting fixture.
Our commitment to Total Customer Satisfaction and our consolidated experience and leadership in design innovation and manufacturing of
lighting products for the professional Entertainment Industry means you can depend upon the quality of this product.

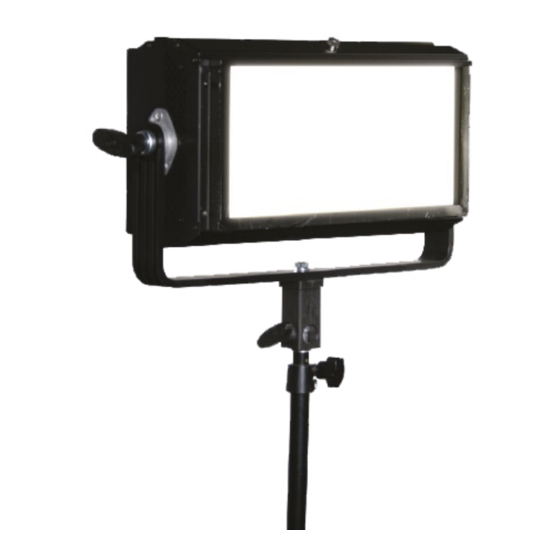

The SOFT LED 2 Vari-White is a innovative 60W LED SOFTLIGHT, with a COLOR RENDERING INDEX – CR higher than 95 at any CCT within a
range, from a minimum of 2.800°K to a maximum of 6.600°K; it provides a smooth and soft shadow projecting beam, yet within a controlled
field that makes it ideal for multiple camera set ups.
The Lighting Fixture is DMX Controlled and includes a number of parameters that can be set locally, it is equipped with either a 90-250V
50/60Hz power supply for AC feed and the front Remote Phosphors Panel is easily interchangeable and it is available with either Tungsten or
Daylight Balanced CCT.
Standard accessories are available such as Black or White Honeycombs with either narrow or medium cells for different beam shaping and
control, Colour Frame, Beam Intensifier and a special yoke for multiple fixtures configuration, for background lighting applications.
This Manual is applicable to Soft LED 2 Vari-White
SOFT LED 2 Vari-White
120W LED SOFTLIGHT 90-250V 50/60 Hz
INSTRUCTION MANUAL
E-mail:
desisti@desisti.it
(Pole Operated available, not shown)
REPRESENTATIVE
Revised August 2018
Advertisement
Related Manuals for Desisti Soft LED 2 Vari-White
Summary of Contents for Desisti Soft LED 2 Vari-White
- Page 1 Entertainment Industry means you can depend upon the quality of this product. The SOFT LED 2 Vari-White is a innovative 60W LED SOFTLIGHT, with a COLOR RENDERING INDEX – CR higher than 95 at any CCT within a range, from a minimum of 2.800°K to a maximum of 6.600°K;...
- Page 2 2. YOKE AND ACCESSORIES ASSEMBLY This Manual is applicable to Soft LED 2 Vari-White Revised August 2018...
-
Page 3: Safety Instructions
B. Use only original accessories and spares from De Sisti Lighting. C. Before hanging the luminaire ensure that the suspension point (or the stand) is properly rated to accept the luminaire weight. This Manual is applicable to Soft LED 2 Vari-White Revised August 2018... -
Page 4: Installation Instructions
Connect to DMX controller (refer to the “Channel Setting” in the “Local Menu” chapter) and Use it. 6. LOCAL MENU The SOFT LED 2 Vari-White has a GRAPHIC DISPLAY backlit, with two local knobs, each one having a push/click function in addition to the rotation: KNOB 1 It is as a DEFAULT the CCT Variation Knob, By rotating it clockwise the CCT Changes from 2.750°K up to 6.900 °K. - Page 5 KNOB 2 while keeping KNOB 1 pressed 1st MENU 2nd MENU Explanation of Each MENU FUNCTION Displayed Displayed (scrolling with the Ù and the (after pressing the X that stands for Ú buttons) ENTER) This Manual is applicable to Soft LED 2 Vari-White Revised August 2018...
- Page 6 Display of LED Case TEMPERATURE Display of DMX Leve DMX Address Display of local potentiometer level (when in local control or turned off turned DMX controller) Graphic Scale of Dimming This Manual is applicable to Soft LED 2 Vari-White Revised August 2018...
-
Page 7: Periodic Inspection & Maintenance
3. Clean the Diffuser Panel with a soft damp cloth. 4. Check the condition of the safety shield (see chapter: Installation Instructions) before every use. 5. Check Power supply cable and DMX control cable proper conditions This Manual is applicable to Soft LED 2 Vari-White Revised August 2018... - Page 8 Disposing of this product: Help preserve the environment! Ensure that this product is recycled at the end of its life. This product is in compliance with the RoHS and WEEE directives. This Manual is applicable to Soft LED 2 Vari-White Revised August 2018...
