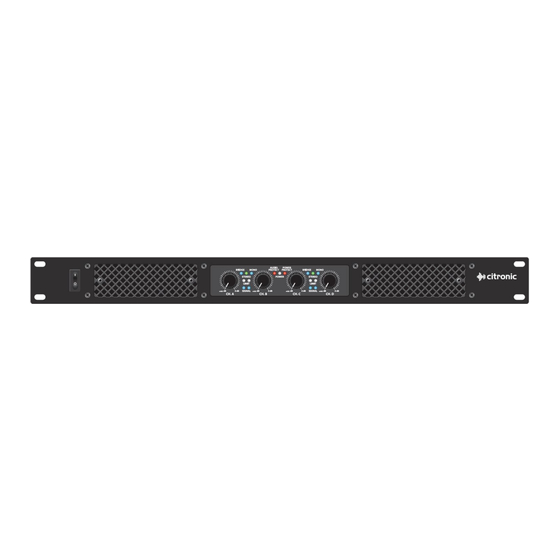

- Page 1 D-SERIES CLASS-D QUAD POWER AMPLIFIER Order ref: D4200 - 172.142UK Order ref: D4350 - 172.144UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing a Citronic D-series quad power amplifier as part of your sound reinforcement system. These amplifiers use class-D circuit architecture for light weight and efficient performance. Please read this manual fully and follow the instructions to achieve the best results from your amplifier and to avoid damage through misuse.
- Page 3 Setting up Connect speaker cabinets to the channel outputs A, B, C, D using good quality Speakon ® leads (15) and ensure that the combined load on each channel is no lower than 4Ω. Note: Most PA speakers are with 8Ω nominal impedance. Connecting a single 8Ω load to each speaker output is OK. 2 x 8Ω...
- Page 4 Specifications Model D4200 D4350 Power supply 220-240Vac, 50/60Hz (IEC) Modes 2 x Stereo, Parallel (mono), Bridge (mono) Input sensitivity 0dB = 0.775Vrms Crossover Input A 120Hz LPF and C+D 120Hz HPF (all switchable) Input connections 4 x XLR female Sound output 4 x SPK connectors Dimensions 482 x 308 x 44mm (without feet)
