Citronic CX-1608 User Manual

Hide thumbs
1
2

Advertisement

Quick Links

Download this manual

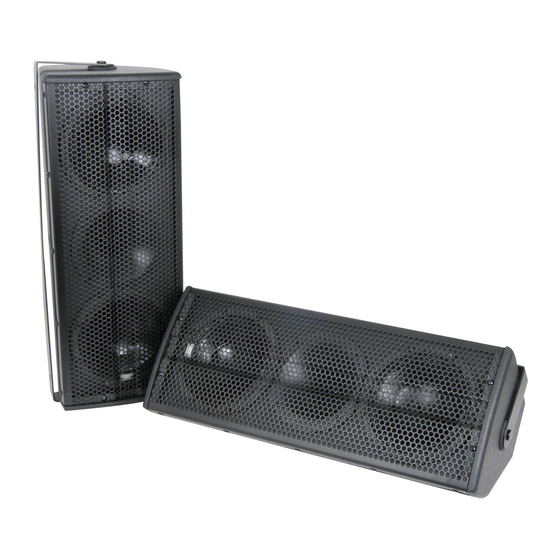

Pair of speaker enclosures made from premium Russian ply with multi-angle design for arraying and wedge monitoring.
Surface mount via the included bracket or flying points afford convenient installation in bars, restaurants, meeting rooms.
Custom designed drivers project full range output with a wide dispersion for excellent coverage to listeners.
 Full range 2-way enclosure
 Powder-coated steel grille
 Computer designed for optimal efficiency
 Wide 140° x 140° dispersion
 Supplied in pairs with wall-mount brackets
 Available in durable black or white finish
 Multi-angle cabinets for monitoring or arraying
CX-1608
SPEAKER CABINET
Order ref: 170.356, 170.357
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CX-1608 and is the answer not in the manual?

Questions and answers

Related Manuals for Citronic CX-1608

Summary of Contents for Citronic CX-1608

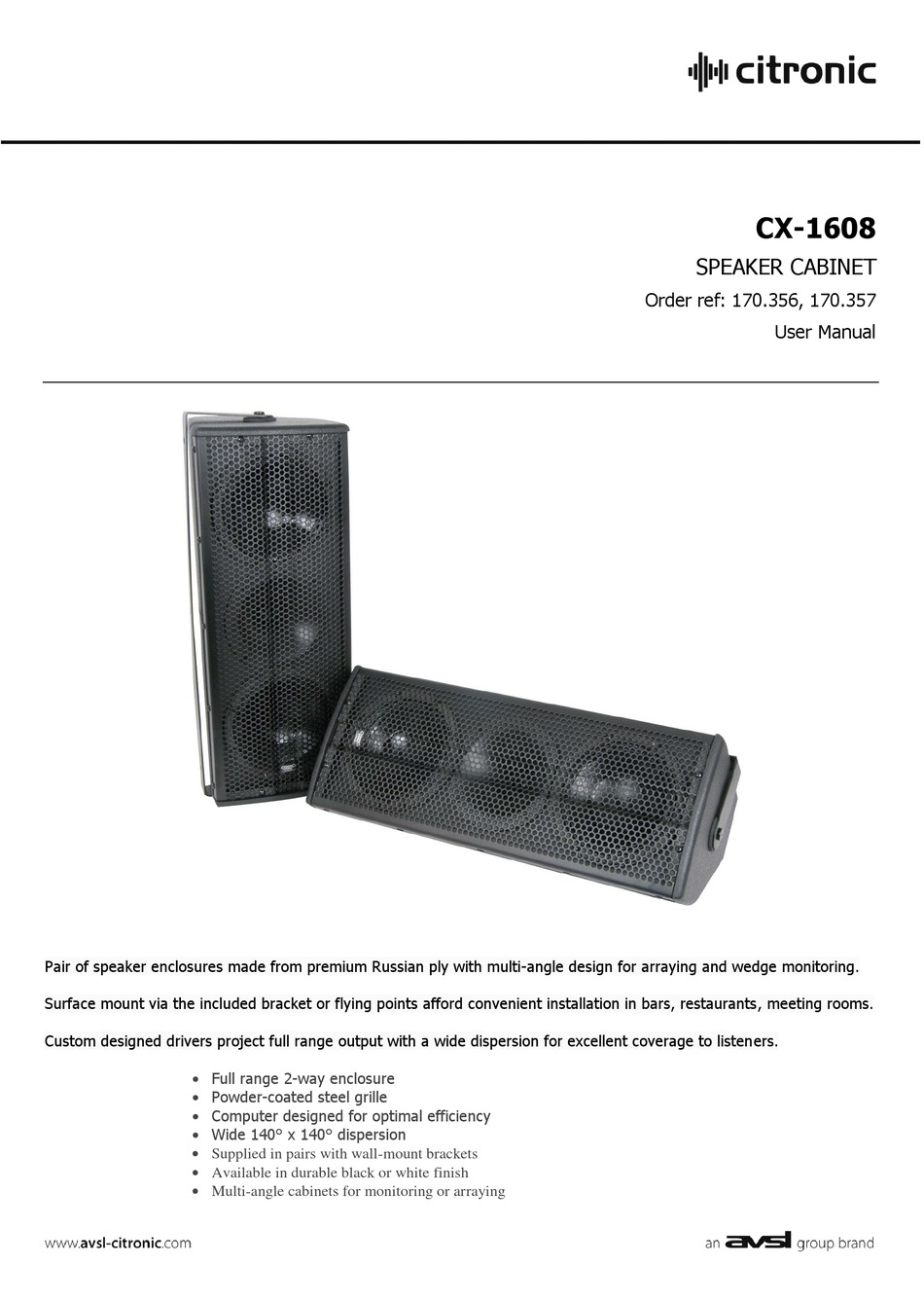

  • Page 1 CX-1608 SPEAKER CABINET Order ref: 170.356, 170.357 User Manual Pair of speaker enclosures made from premium Russian ply with multi-angle design for arraying and wedge monitoring. Surface mount via the included bracket or flying points afford convenient installation in bars, restaurants, meeting rooms.

  • Page 2: Specifications

    Specifications Power RMS 160W Power Max 320W (5 minutes max) LF driver 2 x 150mmØ (6”) HF driver Compression driver with 25mmØ titanium diaphragm Impedance 8Ω Frequency response (-3dB) 70Hz - 18KHz Sensitivity (1W/1m) 93dB Dispersion (H x V) 140 x 140 Connector 1 x Speakon®...
