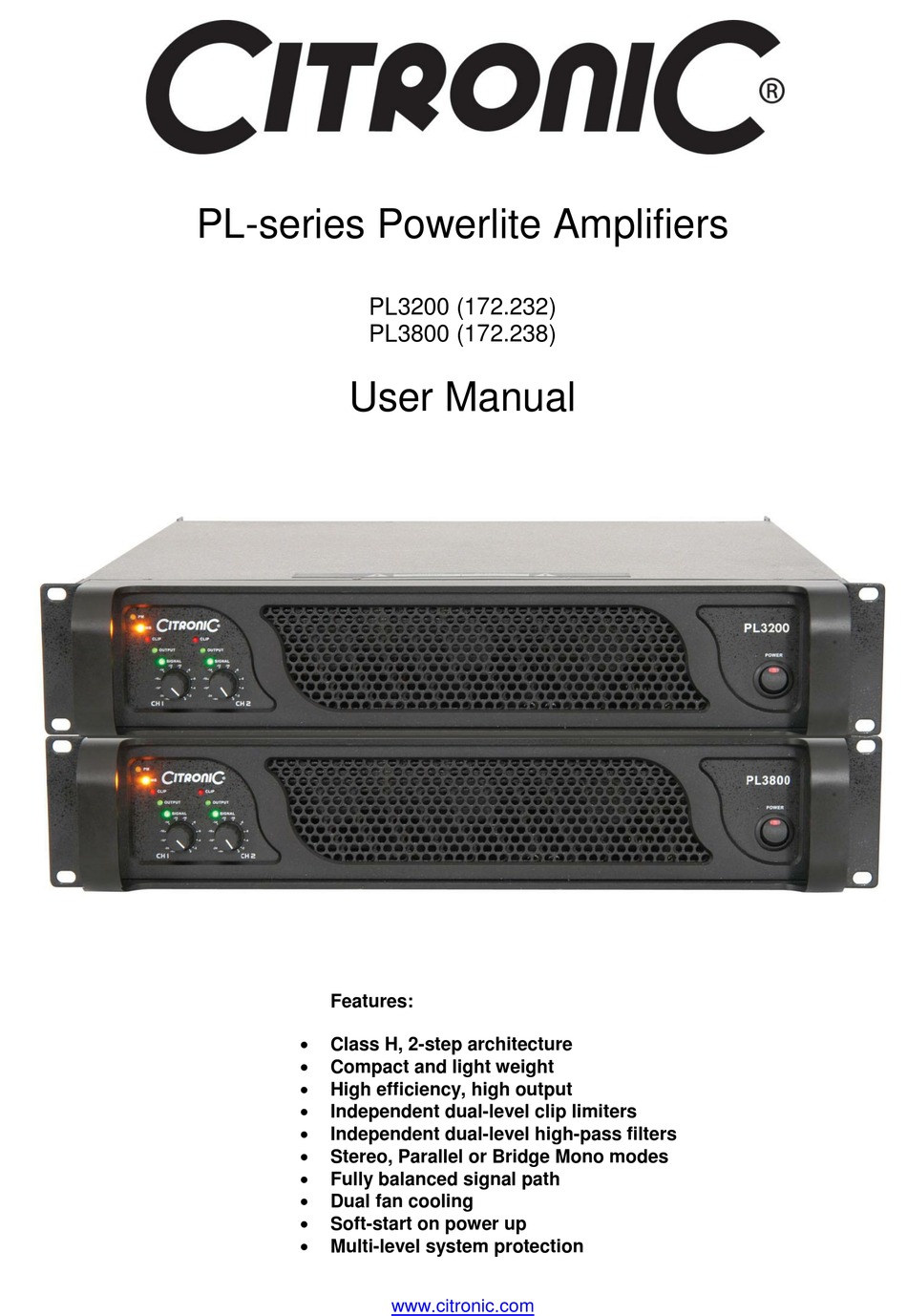

PL-series Powerlite Amplifiers
PL3200 (172.232)
PL3800 (172.238)
User Manual
Features:
Class H, 2-step architecture
Compact and light weight
High efficiency, high output
Independent dual-level clip limiters
Independent dual-level high-pass filters
Stereo, Parallel or Bridge Mono modes
Fully balanced signal path
Dual fan cooling
Soft-start on power up
Multi-level system protection
www.citronic.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Citronic Powerlite PL3200
Summary of Contents for Citronic Powerlite PL3200
-
Page 1: User Manual
High efficiency, high output Independent dual-level clip limiters Independent dual-level high-pass filters Stereo, Parallel or Bridge Mono modes Fully balanced signal path Dual fan cooling Soft-start on power up Multi-level system protection www.citronic.com... - Page 2 Introduction: Thank you for choosing this Citronic Powerlite amplifier. This product has been designed to exacting standards to provide accurate, immediate high power on demand whilst remaining very lightweight and compact for easy portability. The class H architecture and innate protection circuitry are designed to provide reliable service for many years.
- Page 3 Rear Panel Mains inlet - IEC CLIP LIMITER switch 10. CH2 output GAIN input level selector 11. Bridge mono output MODE switch (Parallel/Stereo/Bridge) 12. CH1 output CH1 and CH2 High Pass Filters (HPF) 13. Cooling vent GROUND LIFT switch 14. Combo signal inputs (XLR or jack) Signal line outputs (XLR) Operation Connect speaker cabinets to channel outputs using good quality leads and ensuring that the combined load on...
- Page 4 Increase input level from audio source Output is working but at very low level Turn up CH1 and CH2 level controls Switch GAIN at rear to a higher level Note: for further troubleshooting, refer equipment to qualified service personnel for testing © Citronic 2011...
