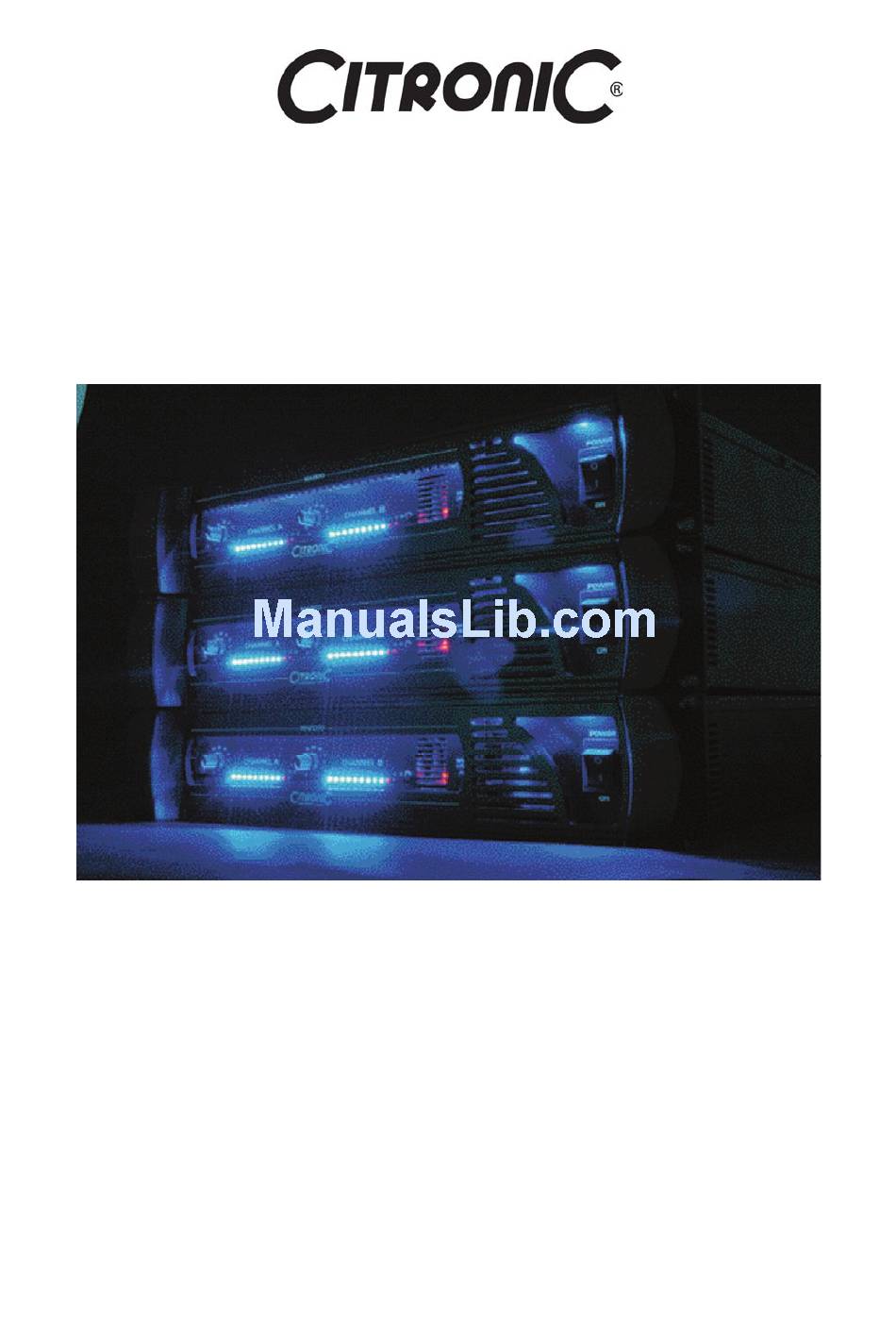

- Page 1 USER MANUAL MA SERIES MOSFET DUAL CHANNEL POWER AMPLIFIERS 171.231 – MA800 171.234 – MA1300 171.237 – MA2000...
- Page 2 Also ensure that there is no damage to the case, which may have occurred during transportation. If so do not use the equipment and contact your dealer. Introduction Dear custome r, thank you for purchasing the MA series amplifier from Citronic. Please read this user manual before use. Product Features:...
- Page 3 User Manual 171.231/234/237 Technical spec: MA-800 MA-1300 MA-2000 Rated Power 2 x 400W 2 x 650W 2 x 1000W @ 4 Ohms Rated Power RMS @ 8 Ohms 2 x 270W 2 x 430W 2 x 670W Frequency 20Hz - 25kHz 20Hz - 25kHz 20Hz - 25kHz Response...
- Page 4 User Manual 171.231/234/237 Front Panel Mains Power switch on and off LED Back light switch for full panel illumination LED Display Master output Gain control channel A Gain control channel B Rear Panel IEC Power input socket Fuse holder Ground point for DJ mixers / players Speaker output channel B Speaker output channel A Signal input combo (Balance/Unbalanced) for Channel B...
- Page 5 User Manual 171.231/234/237 Power supply Supply voltage is 230Vac ±10%, 50-60Hz A standard IEC mains inlet is fitted to all models and a power lead is supplied in the box. The IEC lead connects between the inlet socket and a suitable mains supply. Please ensure you switch off the unit on the front panel before turning the mains on or off at the wall.
