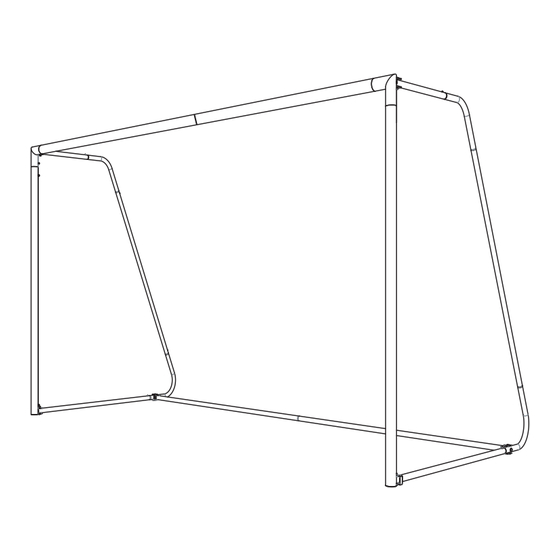

- Page 1 16x7FT PRO ALU MATCH GOAL QUICKPLAY ® @quickplay_sport / @quickplay_soccer www.quickplaysport.com / www.quickplaysport.us Customer service: info@quickplaysport.com...
-
Page 2: Parts List
PARTS LIST PARTS LIST AL16-9 AL16-1 AL16-10 Top Connector (2x) Crossbar (2x) Top Side Frame (2x) AL16-2 Upright (2x) AL16-8 AL16-3 Diagonol Side Frame (2x) Crossbar Section 2 (1x) AL16-4 F/F Basebar (2x) AL16-6 AL16-7 AL16-5 Bottom Side Frame (2x) Bottom Connector (2x) M/F Basebar (1x) Net (1x) -
Page 3: Warning Information
HANDY EXTRAS HANDY EXTRAS PARTS LIST Wrench Allen Key Ratchet with Sockets WARNING INFORMATION 1. Read through the instruction manual thoroughly before assembling the goal. 2. Check parts for any defects prior to the assembly of the goal. 3. Only use the goal on a flat surface. 4. -
Page 4: Product Assembly
HANDY EXTRAS PARTS LIST PRODUCT ASSEMBLY AL16-3 Figure.1 ALU-1 STEP 1 - Crossbar (Figure 1) AL16-1 Layout the crossbar parts (AL16-1 x2 & AL16-3) and crossbar connector (ALU-1 x2). Slide 4x Bolts parts (A1) into parts (ALU-1) ensuring they are between the holes. Repeat on second ALU-1 part Slot the connector piece (ALU-1) into the (AL16-1 &... -
Page 5: Detail View
STEP 3 - Attach Crossbar to uprights AL16-1 (Figure 3) Slide 4x bolts (A1) into both corner joints (ALU-3) Figure.3 Attach the corner joints to the crossbar and uprights (AL16-1, AL16-2) ALU-3 ALU-3 AL16-2 DETAIL VIEW STEP 4 - Fixing Crossbar to uprights (Figure 4) AL16-1 Place the Right corner bracket (ALU-5) - Page 6 STEP 5 - Fixing Bottom brackets to uprights (Figure 5) Figure.3 lide 1x Bolt (A1) into the base of both uprights (AL16-2) Place the bottom brackets (ALU-6) onto the Uprights and ensure the (A1) bolt slots through the required hole on the bottom bracket. Fix the plastic End cap (EC-1) to the bottom of the upright, lightly tap with a mallet to fix in place.
- Page 7 STEP 7 - Fix Basebar joints Figure.7 to side frames (Figure 7) lace the Basebar joint (ALU-7) over the unsecured Bolts (B3) Secure each Basebar joint to the bottom side frame (AL16-6) with an lock nut (B2) ALU-7 AL16-6 AL16-7 Figure.8 AL16-1 ALU-3...
- Page 8 STEP 9 - Side frames (Figure 9) Slot Basebar pieces (AL16-4 & AL16-5) together. The parts will need to be attached using the spring clips, to do this push on the spring clip and push the tubes together at the same time. (See diagram below) Figure.9 STEP 10 - Secure the...
- Page 9 Figure.12a STEP 12 - Attaching the Net Place the net over the frame, denote that ‘Top Corner’ tabs as per (Figure 12a). Attach net the to the frame using the net clips (NC-1). The push and twist technique is shown in the (Figure. 12b) Figure.12b NC-1...
- Page 10 Figure.12c Secure the net along the Basebar, using the cable ties (CT-1), As per Figure. 12c, you may also wish to add cable ties to the side bars which may add more tension to your goal Cable ties Place each Cable tie CT-1 three net sqaures apart...
- Page 11 Undo Cable ties connecting the net to the Basebar Undo securing pin from Basebar brackets, then remove Basebar. Fold Sidebars inwards 90 degrees towards the crossbar.
