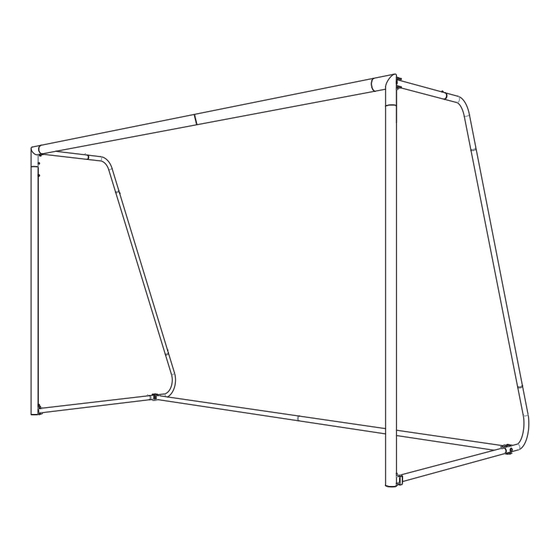

- Page 1 8x5FT PRO ALU MATCH GOAL QUICKPLAY ® @quickplay_sport / @quickplay_soccer www.quickplaysport.com / www.quickplaysport.us Customer service: info@quickplaysport.com...
-
Page 2: Parts List
PARTS LIST PARTS LIST AL8-9 AL8-10 Top Connector (2x) AL8-1 Top Side Frame (2x) Crossbar (2x) AL8-2 Upright (2x) AL8-8 Diagonol Side Frame (2x) AL8-4 F/F Basebar (1x) AL8-5 M/F Basebar (1x) AL8-6 AL8-7 Bottom Side Frame (2x) Bottom Connector (2x) ALU-1 Crossbar Connector (1x) ALU-2... -
Page 3: Warning Information
HANDY EXTRAS HANDY EXTRAS PARTS LIST Wrench Allen Key Ratchet with Socke t s WARNING INFORMATION 1. Read through the instruction manual thoroughly before assembling the goal. 2. Check parts for any defects prior to the assembly of the goal. 3. -
Page 4: Detail View
STEP 3 - Attach Crossbar to uprights AL8-1 (Figure 3) Slide 4xbolts (A1) into both corner joints (ALU-3) Figure.3 Attach the corner joints to the crossbar and uprights (AL8-1, ALU-3 AL8-2) ALU-3 AL8-2 DETAIL VIEW STEP 4 - Fixing Crossbar to uprights (Figure 4) AL8-1 Place the Right corner bracket (ALU-5) - Page 5 STEP 5 - Fixing Bottom brackets to uprights (Figure 5) Figure.5 lide 1x Bolt (A1) into the base of both uprights (AL12-2) Place the bottom brackets (ALU-6) onto the Uprights and ensure the (A1) bolt slots through the required hole on the bottom bracket. Fix the plastic End cap (EC-1) to the bottom of the upright, lightly tap with a mallet to fix in place.
- Page 6 STEP 7 - Fix Basebar joints Figure.7 Figure. to side frames (Figure 7) lace the Basebar joint (ALU-7) over the unsecured Bolts (B3) Secure each Basebar joint to the bottom side frame (AL8-6) with an lock nut (B2) ALU-7 ALU-7 AL8-6 AL8-7 NW-2...
-
Page 7: Assembly Check
STEP 9 - Side frames (Figure 9) Slot Basebar pieces (AL8-4 & AL8-5) together. The parts will need to be attached using the spring clips, to do this push on the spring clip and push the tubes together at the same time. (See diagram below) Figure.9 STEP 10 - Secure... - Page 8 Figure.11a STEP 12 - Attaching the Net Place the net over the frame, denote that ‘Top Corner’ tabs as per (Figure 11a). Attach net the to the frame using the net clips (NC-1). The push and twist technique is shown in the (Figure.11b) Figure.11b NC-1...
- Page 9 Figure.11c Secure the net along the Basebar, using the cable ties (CT-1), As per Figure. 9c, you may also wish to add cable ties to the side bars which may add more tension to your goal CT-1...
- Page 10 Undo Cable ties connecting the net to the Basebar Undo securing pin from Basebar brackets, then remove Basebar. Fold Sidebars inwards 90 degrees towards the crossbar.
-
Page 11: Product Assembly
HANDY EXTRAS PARTS LIST PRODUCT ASSEMBLY AL8-1 Figure.1 ALU-1 STEP 1 - Crossbar (Figure 1) Layout the crossbar parts (AL8-1) and crossbar connector (ALU-1). AL8-1 Slide 4x Bolts parts (A1) into parts (ALU-1) ensuring they are between the holes as per diagram. Slot the connector piece (ALU-1) into the (AL8-1) ensuring the holes align STEP 2 - Crossbar (Figure 2)
