Repacking your printer
1.
Turn off the printer; remove all cords and cables.
2.
Slide the cover release to open the top cover.
Caution
3.
Remove the paper tray and repack it for shipping:
a.

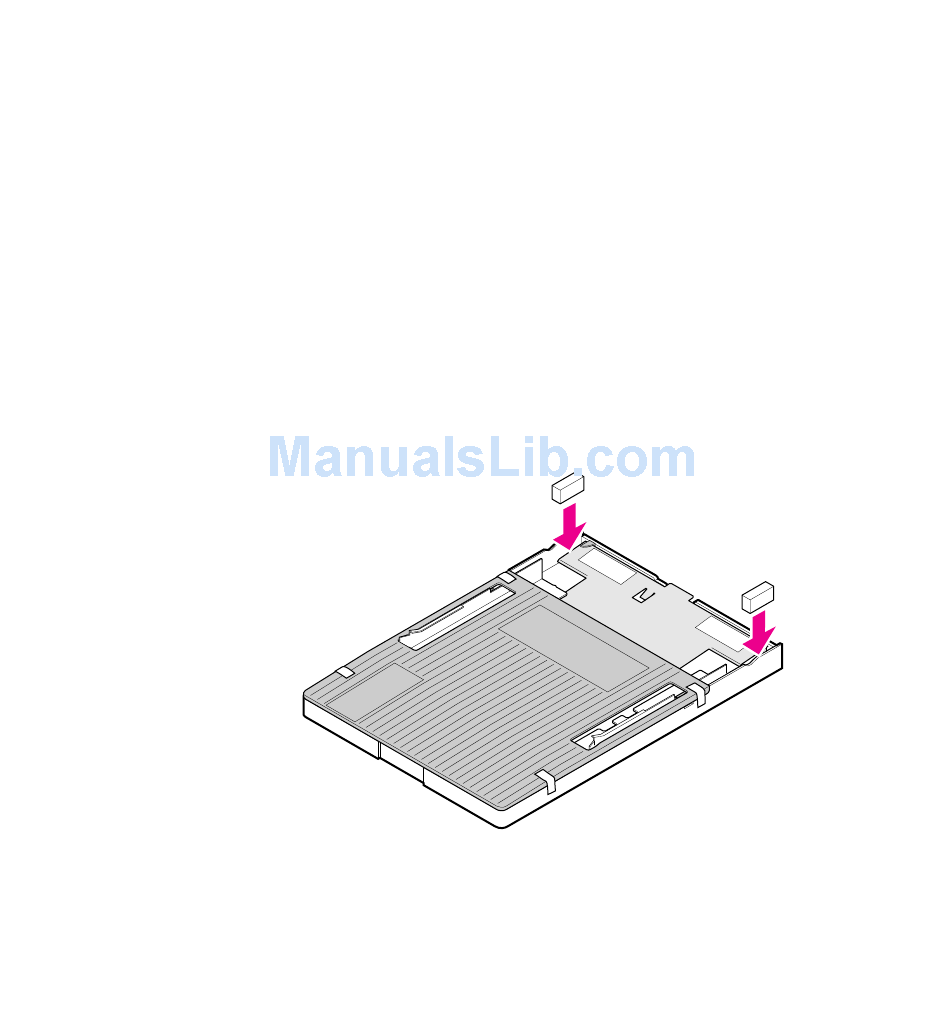

Insert the two small foam shipping blocks into the paper tray
on either side of the metal plate.
b.
Secure the cover to the paper tray. Use masking tape.
Note
If you are shipping the printer for service, you do not need to
return the paper tray.
To keep your warranty valid, you must ship the printer in its
Tektronix shipping box, taking reasonable care to repack it
properly. Failure to do so will result in damage to the printer.
Call Tektronix if you need a replacement box. Also, if you are
returning the printer for service, call Tektronix for a return
authorization number.
8849-03a
Advertisement
Table of Contents
Related Manuals for Xerox Phaser 480X
Summary of Contents for Xerox Phaser 480X
-
Page 1: Repacking Your Printer
Insert the two small foam shipping blocks into the paper tray on either side of the metal plate. Secure the cover to the paper tray. Use masking tape. Note If you are shipping the printer for service, you do not need to return the paper tray. 8849-03a... - Page 2 Remove the transfer roll tray; remove the transfer roll from the tray and wrap the tray in packing material. Insert the medium-sized foam shipping block inside the printer behind the paper guide. Attach the long foam shipping block to the paper clamp bar:...
- Page 3 The rubber cushions protect the thermal head. If they are positioned incorrectly, the thermal head will be damaged in shipping. Replace the transfer roll tray inside the printer. Close the top cover; the thermal head must be resting on the rubber cushions.
- Page 4 Repack the printer in the Tektronix shipping box. Keep the printer level when moving. 8849-50 Source: 070-9237-00 AC...
