RS-25 BIKE
MANUAL DEL USUARIO
OWNER'S MANUAL
USER'S MANUAL V032023 ENGLISH
RS-25 EASY ACCESS BIKE
This manual can be downloaded on www.salter.es

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-25 BIKE and is the answer not in the manual?

Questions and answers

Summary of Contents for Salter RS-25 BIKE

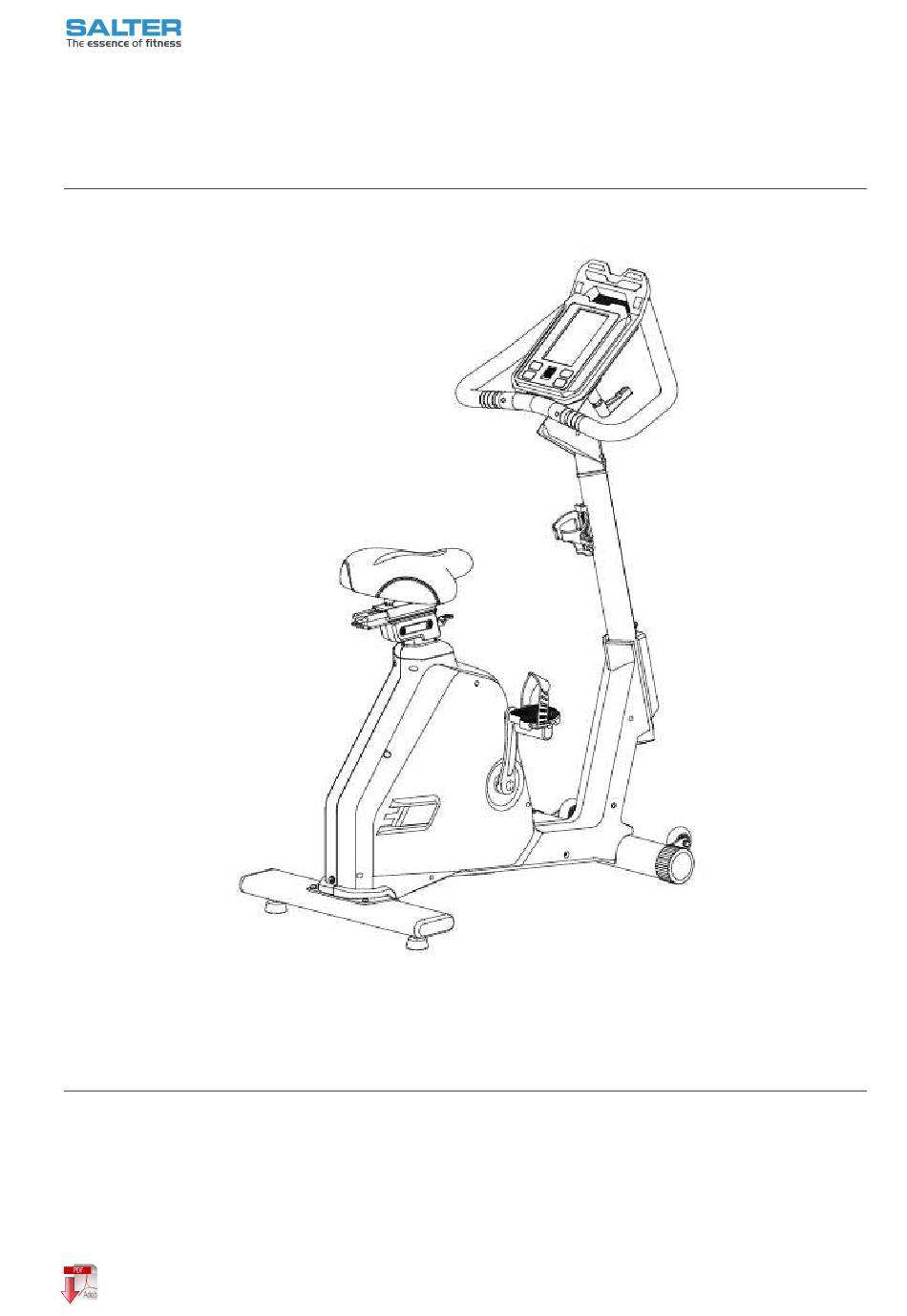

  • Page 1 RS-25 BIKE MANUAL DEL USUARIO OWNER’S MANUAL USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 2: Safety Instructions

    Always choose the workout which best fits your physical strength and flexibility level. Know your limits and train within them. Always use common sense when exercising. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 3 USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 4 FIGURE 2: Front stabilizer assembly Step 1. Loosen the screw (J1), spring washer (J2), washer (J3) from the paper strap and keep them. FIGURE 2 USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 5 Step 2. Select the central tube height (High/Low). There are central tube height guiding labels on the central tube and the main frame. FIGURE 3 a. Standard height USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 6 Step 2. Using a screw driver, tighten water bottle holder (L) to central tube (D) using the same screws (J10). FIGURE 4 FIGURE 5: Handle bar assembly USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 7 (E) to the top of it. Step 2. Stuff the plug (D3) in the hole of the handle bar (E). FIGURE 6 USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 8 Step 4. Using a screw driver, tighten the console (G) using the same screws (G1). FIGURE 7 FIGURE 8: Seat assembly Position seat (H) onto the seat basement (H4) and tighten it using screw driver. FIGURE 8 USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 9 Use a tool to tighten each pedal as tight as possible. Step 2. Insert the pedal straps into each pedal. Adjust the straps according to the user’s shoe size while on the bike. FIGURE 9 USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 10 FIGURE 10 FIGURE 11: How to use the adaptor Using the adaptor(M), there is one adaptor hole located at the rear of the machine. FIGURE 11 USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 11 Fig. 3-b. Place the J6 on J5 first. Next, place the J5 (incl. J6) in the Low Screw Holes labelled in Fig. 3-b. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 12 USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 13 4. CONSOLE FUNCTION BUTTON FUNCTIONS USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 14: Display Functions

    2. Scroll the jog dial to select the program you want and press ENTE R to confirm. Or press START/STOP button to start MANUAL mode immediately. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 15: Manual Mode

    2. User may preset exercise data (TIME, DISTANCE, CALORIES, PULSE), and press START/STOP to start exercise. User can press RESET to return to the MANUAL setting 3. Level is adjustable during training. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 16: Program Mode

    3. After start training, TIME will be counted down. When the TIME is counted to 0, the screen is flashing and the alarm is ringing. User can press any button to stop the alarm. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 17: User Program

    4. After start training (FIGURE 27~29), TIME will be counted down. When TIME is counted to 0, the screen is flashing and the alarm is ringing. User can press any button to stop the alarm. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 18: Heart Rate Control

    User can press any button to stop the alarm. If there is no HR input for 5 seconds, LCD will display until HR signal input. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 19: Watt Constant

    ● : Watt value in the Setting value 25% ---User should keep the same speed ▼ : Watt value < Setting value 25% --- User should ride faster USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 20 2. This computer requires 9V, 1A adaptor. 3. When computer act abnormal, please plug out the adaptor and plug in again. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 21 You will find the fitness apps in the app stores of Google or Apple. There you will find the apps “Kinomap” or “Zwift”. Please note that these apps are produced by an external manufacturer. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
  • Page 22: Maintenance

    7. WARRANTY CONDITIONS Consult the warranty of this equipment on www.salter.es. It is essential to indicate the serial number of the equipment for repairs under warranty. USER’S MANUAL V032023 ENGLISH RS-25 EASY ACCESS BIKE This manual can be downloaded on www.salter.es...
