MANUAL DEL USUARIO
OWNER'S MANUAL
MANUEL DE L'UTILISATEUR
OWNER'S MANUAL V.032022 ENGLISH

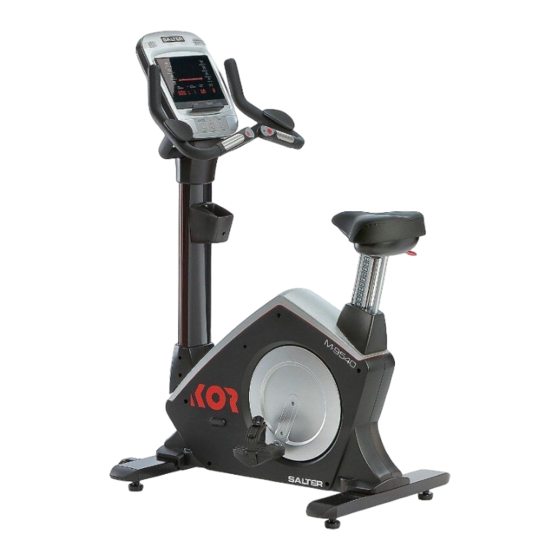

M-9540 BIKE KOR
This manual can be downloaded from the customer area on www.salter.es
KOR
BIKE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOR M-9540 and is the answer not in the manual?

Questions and answers

Summary of Contents for Salter KOR M-9540

  • Page 1 MANUAL DEL USUARIO OWNER’S MANUAL MANUEL DE L’UTILISATEUR BIKE OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 2: Safety Instructions

    21. Make sure that adequate space is available for access to and passage around the equipment; keep at least a distance of 1 meter from any obstruction object while using the machine. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 3: Before You

    THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY: HARDWARE IDENTIFICATION CHART ALLEN WRENCH SOCKET WRENCH WRENCH (17mm) COMBINATION (5 mm) (13 & 17mm) WRENCH (130mm) OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 4: Hardware Identification

    Part No. and Description Q’TY HARDWARE KIT Lock Washer (M8) Washer (8x38x2.0t) 112 Nylon Nut (M10×p1.5) 126 Bolt (M5×p0.8×15mm) 139 Bolt (M8×p1.25×60mm) 142 Bolt (M10×p1.5×20mm) OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 5: Assembly Parts

    Console Hand Wrist Pad Leveler Cover Accessory Tray Pedal Leveler Handlebar Assembly Seat Upright Post Assembly Front and Rear Stabilizer Main Frame OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 6 Bolts (M8Xp1.25x60mm)(139). NOTE: If the item is not level, review the position as the drawing 2 shown. LEVELING NOTE on the right side to level the Levelers (85). OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 7 NOTE: For clear assembly purpose, please notice that the Nuts (M8)(106) has Seat Adjustment Lever (71) been pre-assembled on the as the figure shows on the right. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 8 Attach the Left Upright Post Sleeve (63) and the Right Upright Post Sleeve (64) to the Upright Post (56) and secure with 4pcs Bolts (M5xp0.8x15mm)(126). OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 9 Plug the Pulse Sensor Wire A (90) into the Pulse Sensor Wire B (91). Be careful not to pinch the wires. Place the Console (46) onto the Stationary Handlebar (48) and fully secure with 4pcs Bolts (M5xp0.8x15mm)(126). OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 10 Left Crank as shown. For the final step, make sure all the bolts and nuts are tighten securely before using. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 11: Operational Instructions

    Hold the Rear Stabilizer up with two hands and tow the item to the desired place carefully Make sure the floor is level while towing the item OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 12 Console Kor Owner’s manual OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 13: Power Off

    CLEAR RESET c. Continue pressing , all the date will return to 0 and the console will return to POWER ON status. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 14 WEIGHT, TIME, LEVEL and Target Heart Rate. DOWN () Level. c. During the workout, press to decrease the tension OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 15: Console Functions

    15 to 250KGS / 30 to 400LBS; 1 KGS/LBS INCREMENT ; the product is not WEIGHT recommended for children’s use. • After pressing the ENTER button to confirm the desired value of WEIGHT. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 16: Set Weight

    0:00. NOTE: You can go back to re-set the value of WEIGHT by pressing CLEAR RESET button. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 17: Set Level

    10 ~ 19:59 minutes 120 seconds 20 ~ 29:59 minutes 180 seconds 30 ~ 39:59 minutes 240 seconds More than 40 minutes 300 seconds OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 18 RANDOM Program Instruction: (NOTE: The profile will be produced by randomly) Press UP (▲) or DOWN (▼) button to select and then press ENTER button to enter RANDOM PROGRAM. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 19 During workout, the is allowed to adjust at any time by pressing UP (▲) or DOWN (▼) button to match your workout goal. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 20 After the console lights up with a short beep sound, the console will enter to POWER ON status and LED will display the scrolling message “CHOOSE PROGRAM OR QUICK START”. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 21 3. Press the ENTER button to confirm the LEVEL. NOTE: You can go back to re-set the value of TIME by pressing CLEAR RESET button. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 22 TOTAL DISTANCE  TOTAL CALORIES AVG. RPM  AVG. PULSE  AVG. WATTS. 3. Press CLEAR REST button third time to leave the program and enter POWER ON status. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 23 3. Press the ENTER button to confirm the value of WEIGHT. NOTE for WEIGHT: The product is not recommended for children’s use. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 24 During workout, the is allowed to adjust at any time by pressing UP (▲) or DOWN (▼) button to match your workout goal. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 25 TARGET HEART RATE ZONE in this example is 109 to 119. The program will monitor your pulse and adjust the resistance LEVEL automatically to keep your pulse within the HEART RATE ZONE (109 – 119) during workout OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 26 CALORIES AVG. RPM  AVG. PULSE  AVG. WATTS. 3. Press CLEAR REST button third time to leave the program and enter POWER ON status. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 27 3. Press the ENTER button to confirm the value of WEIGHT. NOTE for WEIGHT: The product is not recommended for children’s use. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 28 During workout, the allowed to adjust at any time by pressing UP (▲) or DOWN (▼) button to match your workout goal. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 29 POWER OFF: The console would automatically go to SLEEP mode after 1 minutes of inactivity. NOTE: the item will keep power on if you continue pedaling OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 30 0:00. NOTE: You can go back to re-set the value of WEIGHT by pressing CLEAR RESET button. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 31 10 ~ 19:59 minutes 120 seconds 20 ~ 29:59 minutes 180 seconds 30 ~ 39:59 minutes 240 seconds More than 40 minutes 300 seconds OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 32 “CHOOSE PROGRAM OR QUICK START”. MOUNTAIN Program Instruction: Press UP (▲) or DOWN (▼) button to select and then press ENTER MOUNTAIN PROGRAM. button to enter OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 33 During workout, the allowed to adjust at any time by pressing UP (▲) or DOWN (▼) button to match your workout goal. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 34 POWER OFF: The console would automatically go to SLEEP mode after 1 minutes of inactivity. NOTE: the item will keep power on if you continue pedaling OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 35 0:00. NOTE: You can go back to re-set the value of WEIGHT by pressing CLEAR RESET button. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 36 10 ~ 19:59 minutes 120 seconds 20 ~ 29:59 minutes 180 seconds 30 ~ 39:59 minutes 240 seconds More than 40 minutes 300 seconds OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 37 TOTAL DISTANCE  TOTAL CALORIES AVG. RPM  AVG. PULSE  AVG. WATTS. 3. Press CLEAR REST button third time to leave the program and enter POWER ON status. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 38: Conditioning Guidelines

    Adjust the intensity of your exercise until your heart rate is at the proper level. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 39: Warm-Up And Cool-Down

    A proper cool-down lowers your heart rate and allows blood to return to the heart. Your cool-down should include the stretches listed above and should be completed after each strength-training session. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 40: Maintenance

    WARRANTY CONDITIONS Consult warranty conditions at www.salter.es. It is essential to indicate the serial number of the equipment for repairs under warranty. OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 41: Product Parts Drawing

    PRODUCT PARTS DRAWING OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
  • Page 42 PRODUCT PARTS DRAWING OWNER’S MANUAL V.032022 ENGLISH M-9540 BIKE KOR This manual can be downloaded from the customer area on www.salter.es...
