WARNING: For Outdoor Use Only
STOP:
IF YOU SMELL GAS
- Shut off gas to the appliance
- Extinguish any open flame
- If odor continues, keep away from the appliance and immediately call your gas supplier or fire department
FBD-0001
|
AWEIS Ignition System
ALL WEATHER ELECTRONIC IGNITION SYSTEM
Standard Capacity Models
SCGNG
290k BTU
|
24VAC
|
Natural Gas
SCGLP
290k BTU
|
24VAC
|
Liquid Propane
SCGNG30
290k BTU |30VDC
|
Natural Gas
SCGLP30
290k BTU |30VDC
|
Liquid Propane
Battery Models
BPAWEISNG
290k BTU
|
Battery
|
Natural Gas
BPAWEISLP
290k BTU
|
Battery
|
Liquid Propane
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
AWEIS
Ignition System
If you cannot read or understand these instructions,
STOP:
do NOT attempt to install or operate this appliance.
- 1 -
INSTRUCTIONS
High Capacity Models
HCGNG
780k BTU
|
24VAC
|
Natural Gas
HCGLP
780k BTU
|
24VAC
|
Liquid Propane
HCGNG30
780k BTU |30VDC
|
Natural Gas
HCGLP30
780k BTU |30VDC
|
Liquid Propane
REV
|
120623
Advertisement
Table of Contents
Related Manuals for Fire By Design AWEIS
Summary of Contents for Fire By Design AWEIS

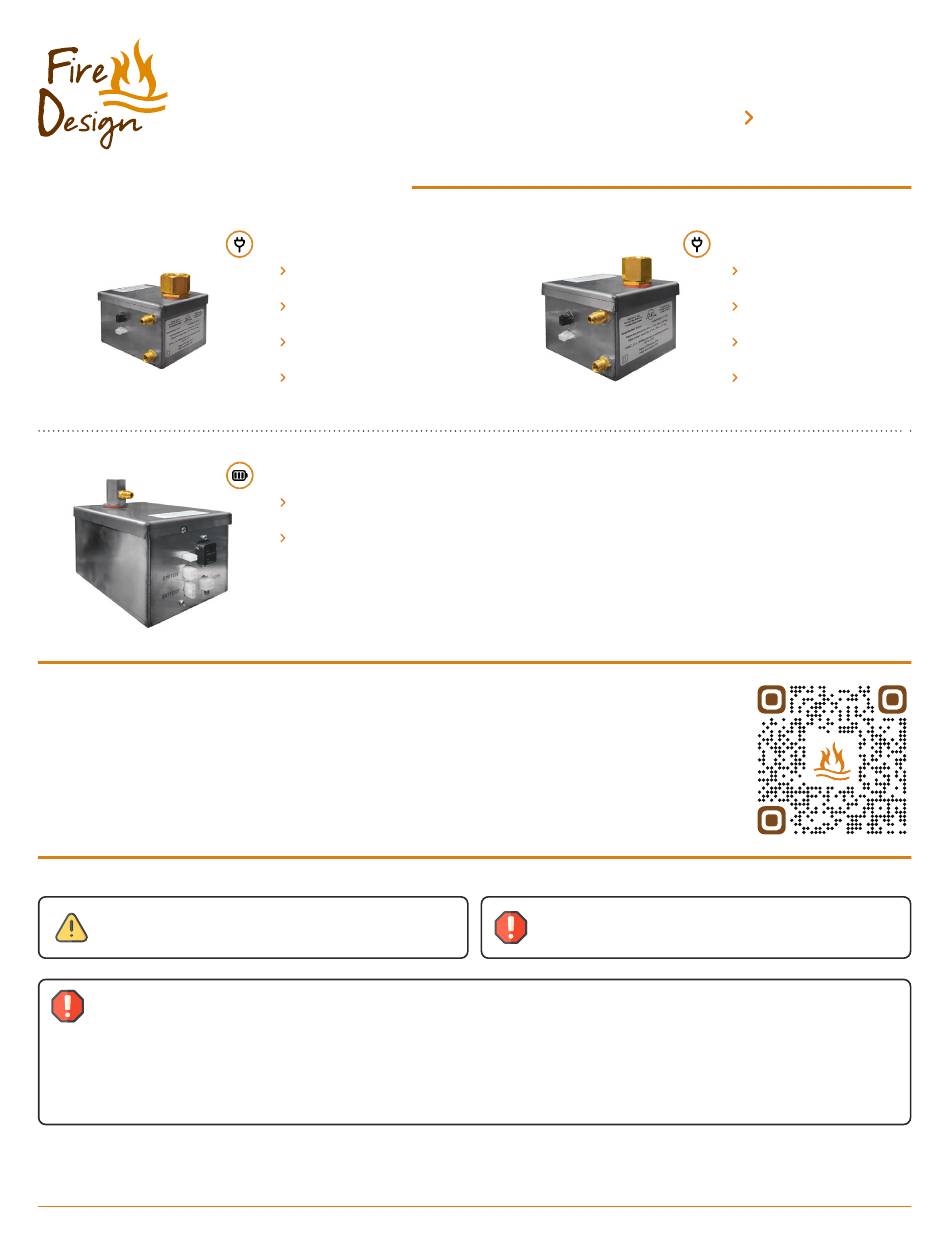

- Page 1 Battery Liquid Propane Product Certifications This QR Code will always take you to the most recent certifications for the entire Fire by Design product line. You can also type in the URL directly: https://qr.devsiteview.com/g/1mSc4f5YYZU If you cannot read or understand these instructions,...
- Page 2 Ne jamais utilizer cet appareil dans un espace clos comme un vehicule Si l'odeur persiste, éloignez-vous de l'appareil et appelez de damping, une tente, une automobile ou une maison. immédiatement le fournisseur de gaz ou le service d'incendie. FBD-0001 AWEIS Ignition System - 2 - 120623...
-
Page 3: Table Of Contents
Daisy Chain Wiring Clearance to Combustibles Cross Ventilation AWEIS Installation AWEIS Completed Diagrams Operation of the AWEIS Burner System Maintenance of the AWEIS Burner System Troubleshooting the AWEIS Burner System Replacement Parts Automated Pool Control Wiring Media Information & Installation Return Policy &... -
Page 4: What's In An Aweis System
What’s in an AWEIS System? Below is a list of the base contents that each AWEIS system. If you purchased a different model that includes a type of enclosure, please refer to that specific model number instruction set. Standard Capacity AWEIS... -
Page 5: Daisy Chain Wiring
30 Volt DC versions have a Black and a wire. These are the power wires. When daisy chaining multiple AWEIS, the polarity between the AWEIS MUST be the same. To achieve this, all the Blue... -
Page 6: Aweis Installation
STATUS to install the control panel either on the enclosure (shown to the right) or run the control elsewhere (either to a separate location or perhaps inside a column underneath the enclosure). FBD-0001 AWEIS Ignition System - 6 - 120623... - Page 7 Leak Test – it is highly recommended to perform a gas leak test at this point in the install. Turn on the gas supply and then, using a soapy water solution spray the bottom of the AWEIS where it is connected to the gas line to ensure no leaks exist.
- Page 8 Female and the other is Male - please make sure you are connecting the correct terminal - you should not have to apply too much force to connect them. Finally, thread the 1/4” Flare Fitting on to the top of the AWEIS Ignition Control Box. DO NOT apply Teflon Tape or Pipe Dope to this fitting.
- Page 9 Hardwired 24/30V & Battery Powered Models In steps 1 - 4 we have been setting up the AWEIS iteslf - now it’s time to attach everything to the pan / burner. But, in order to do that we need to talk about the actual connection from the Control Box to the Burner via the Gas Orifice. Each AWEIS system comes with the proper gas orifice (either Natural Gas or Propane) that was selected at the time of purchase.
-
Page 10: Aweis Completed Diagrams
AWEIS Completed Installation Diagrams The below diagrams are representations of a final & complete installation of an AWEIS system. The top diagram is for 24/30V Models, and the bottom diagram is for Battery Operated Models. Hardwired 24/30V Models Burner (Holes facing up) -
Page 11: Operation Of The Aweis Burner System
Operation of the AWEIS Burner System Do NOT use this appliance if any part has been HOT! - DO NOT TOUCH - SEVERE BURNS MAY under water. RESULT - CLOTHING IGNITION MAY RESULT! Immediately call a qualified service technician Carefully supervise children in same area as to inspect the appliance and to replace any part appliance. -
Page 12: Maintenance Of The Aweis Burner System
LED Status Indicator Troubleshooting The LED light incorporated in the ON/OFF Switch is programmed to indicate failure modes within the Battery Powered AWEIS System. Assuming there is a good gas source supplying gas to the feature the system should operate normally. If it does not the indications from the LED will help troubleshoot the problem. -
Page 13: Replacement Parts
PBA Thermopile PBA Hot Surface Igniter Replacement Part Installation Indstrutions This QR Code will always take you to the Field Serviceable AWEIS Replacement Parts Install Instructions. You can also type in the URL directly: https://qr.devsiteview.com/g/3JJk7f7KXwn Battery Powered Models Replacement Parts... -
Page 14: Automated Pool Control Wiring
Wiring to Pool Controller when 2 Features Turn ON Separately 24 Volt AC Systems Automated Pool Controller (Aqualink, Pentair Intellitouch, etc.) Junction Box with (2) 24 VAC Transformers Relay Relay 24VAC 24VAC Transformer Transformer Ground Neutral Conduit to Each Feature FBD-0001 AWEIS Ignition System - 14 - 120623... -
Page 15: Media Information & Installation
DO NOT COMPLETELY COVER THE PILOT BURNER. When installation of the media is complete the top of the Pilot Burner Protective Cover should be visible. FBD-0001 AWEIS Ignition System - 15 - 120623... - Page 16 When using smaller fireglass you may not be able to cover it as well due to the fact the smaller rock may “smother” the Pilot Burner and prevent oxygen from getting to it. FBD-0001 AWEIS Ignition System - 16 - 120623...
- Page 17 Return Policy All orders from Fire by Design (FBD) may be returned within 30 days for a full refund. In order to return or exchange (under the warranty guidelines described in the Fire by Design Limited Warranty section of this instruction set) all or part of your order, you must contact us for a Return Merchandise Authorization number (RMA#).
