Models Covered in this Instruction Set
MUST INSTALL IN WATER
The Fire By Design SUBEIS is designed to be installed and operated in water. Installing and operating the SUBEIS unit outside of
water will cause the unit to not function properly.
WARNING: For Outdoor Use Only
STOP:
IF YOU SMELL GAS
- Shut off gas to the appliance
- Extinguish any open flame
- If odor continues, keep away from the appliance and immediately call your gas supplier or fire department
Proposition 65 Warning
Operating, servicing and maintaining this appliance can expose you to chemicals including
Carbon Monoxide and Lead which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more
information go to www.Prop65Warnings.ca.gov
FBD-0002
|
SUBEIS Ignition System
SUBMERSIBLE ELECTRONIC IGNITION SYSTEM

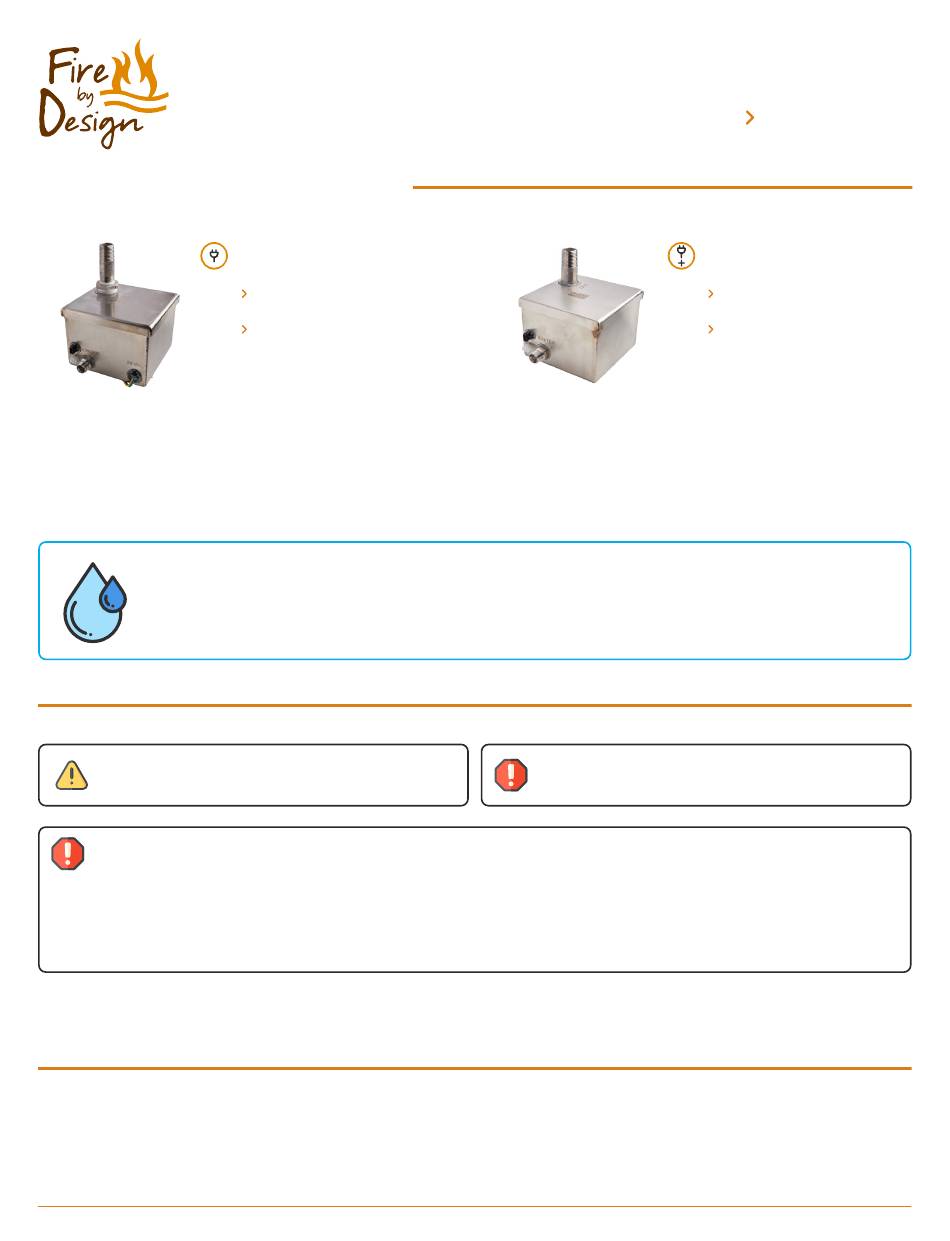

Standard Capacity Models
SSC-FS
290k BTU |24VAC
|
NG or LP
SSC30-FS
290k BTU |30VDC
|
NG or LP
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
SUBEIS
Ignition System
If you cannot read or understand these instructions,
STOP:
do NOT attempt to install or operate this appliance.
- 1 -
INSTRUCTIONS
High Capacity Models
SHC-FS
510k BTU |24VAC
|
NG or LP
SHC30-FS
510k BTU |30VDC
|
NG or LP
REV
|
080124
Advertisement
Table of Contents
Related Manuals for Fire By Design SUBEIS SSC-FS
Summary of Contents for Fire By Design SUBEIS SSC-FS
- Page 1 NG or LP MUST INSTALL IN WATER The Fire By Design SUBEIS is designed to be installed and operated in water. Installing and operating the SUBEIS unit outside of water will cause the unit to not function properly. If you cannot read or understand these instructions,...
- Page 2 WARNING WARNING Improper installation, adjustment, alteration, service or maintenance For use with NATURAL or LP GAS Only can cause injury or property damage. Read the installation, operating NO SOLID FUELS TO BE USED WITH THIS SYSTEM and maintenance instructions thoroughly before installing or servicing this equipment WARNING Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any other appliance.
-
Page 3: Table Of Contents
Table of Contents What’s in the SUBEIS System? Gas Requirements Electrical Requirements Daisy Chain Wiring Water Level for Pilot Burner Clearance to Combustibles Submersible Manifolds SUBEIS Installation SUBEIS Completed Diagrams Operation of the SUBEIS Burner System Maintenance of the SUBEIS Burner System Troubleshooting the SUBEIS Burner System Replacement Parts Automated Pool Control Wiring... -
Page 4: What's In The Subeis System
What’s in the SUBEIS System? Below is a list of the base contents that come with each SUBEIS system. If you purchased a different model that includes a type of enclosure, please refer to that specific model number instruction set. Standard Capacity SUBEIS High Capacity SUBEIS 1/2”... -
Page 5: Daisy Chain Wiring
30VDC Power Supply Blue Yellow wire protruding from it, while 30 Volt DC versions have a Black The Fire by Design 24 Volt AC SUBEIS has a and a and a wire. These are the power wires. When daisy chaining multiple SUBEIS, the polarity between the SUBEIS MUST be the same. -
Page 6: Submersible Manifolds
Submersible Manifolds We offer many different submersible manifolds for our SUBEIS ignition system. Below is a list of all the different manifolds available. Below all the manifolds is a separate cheat chart for determining the pressure required. Ring Manifold Hoop Manifold Model Number Size PSI Min. - Page 7 Gas Plumbing Transition In order to connect the incoming gas to the SUBEIS Ignition System, you will need to transition the gas plumbing to the input on the SUBEIS ignition system. Below is an illustration showing the preferred method of transitioning from a gas line (housed inside a PVC sleeve) to the submerged SUBEIS system.
-
Page 8: Subeis Installation
SUBEIS Installation STOP: The installation should be done by a Qualified Service Technician that is Locally Licensed NOTE: For this installation instruction, we will be using a Linear Manifold. If you have a different style manifold, you can still follow this installation process, but please refer to page 6 for your specific manifold positioning. Step 1 - Attaching the SUBEIS Ignition Control Module to the Incoming Gas Plumbing We recommend installing the SUBEIS Ignition Control Module to the incoming gas plumbing before attaching all other components, as installing a completely assembled ignition control box &... - Page 9 Step 2 - Attaching the Pilot Burner Assembly to the Control Box Below are identifying images of the Pilot Burner Assembly and the Ignition Control Box. They ship separated in order to prevent damage during shipping. There is an igniter Molex, a thermopile Molex, a 1/4 Flare Fitting, and wires to connect to the incoming power source.
- Page 10 Step 3 - Installing the Submersible Manifold Install the Submersible Manifold Gas Fitting onto the The direction the fitting should face is determined by which type of Manifold you have. Please see page 6 of a list of all approved outlet of the SUBEIS Ignition Control Box.
-
Page 11: Installation
Finished Installation Diagram Side View of Finished Installation Pilot Cage Thermopile 1 Thermopile 2 Submersible Gas Fitting Igniter Submersible Manifold SUBEIS Ignition Control Module Electrical Connection to Power Source Back View of Finished Installation Pilot Cage Thermopile 1 Thermopile 2 Submersible Manifold SUBEIS Ignition Control Module... -
Page 12: Operation Of The Subeis Burner System
Operation of the SUBEIS Burner System WARNING! HOT! - DO NOT TOUCH - SEVERE BURNS MAY RESULT - CLOTHING IGNITION MAY RESULT! This appliance should be inspected before use and at least annually by a Qualified Service Technician Carefully supervise children in same area as that is Locally Licensed. -
Page 13: Maintenance Of The Subeis Burner System
Maintenance of the SUBEIS Burner System Maintenance should be done by a Qualified Service Technician. The appliance should be inspected WARNING! before use and at least annually. Ensure gas & power are shut off and the appliance is cool before servicing. Any guard or protective WARNING! device removed for servicing must be replaced prior to operation. -
Page 14: Replacement Parts
Replacement Parts for the SUBEIS Burner System Hardwired 24/30V Models Replacement Parts Identifier Part # Description PBAFOW Pilot Burner Assembly Fire on Water SSCBX-FS SUBEIS Standard Capacity Box SHCBX-FS SUBEIS High Capacity Box 50VA-24VAC 24VAC Transformer PS-30V185 30 VDC Power Supply TBRNR-SSFOW SUBEIS Fire on water Stainless Steel Tip Wind Cage for Fire on Water Pilot Burner... -
Page 15: Automated Pool Control Wiring
Automated Pool Controller Wiring Wiring to Pool Controller when 2 Features Turn ON at the same time 24 Volt AC Systems Automated Pool Controller (Aqualink, Pentair Intellitouch, etc.) Junction Box with (2) 24 VAC Transformers Relay Relay 24VAC 24VAC Transformer Transformer Ground Neutral... - Page 16 Wiring to Pool Controller when 2 Features Turn ON at the same time 30 Volt DC Systems Automated Pool Controller (Aqualink, Pentair Intellitouch, etc.) Junction Box with 30 VDC / 185 Watt Power Supply INPUT OUTPUT HLG-185H-30 Relay Relay Ground Neutral Conduit to Each Feature...
-
Page 17: Return Policy
Return Policy All orders from Fire by Design (FBD) may be returned within 30 days for a full refund. In order to return or exchange (under the warranty guidelines described in the Fire by Design Limited Warranty section of this instruction set) all or part of your order, you must contact us for a Return Merchandise Authorization number (RMA#).
