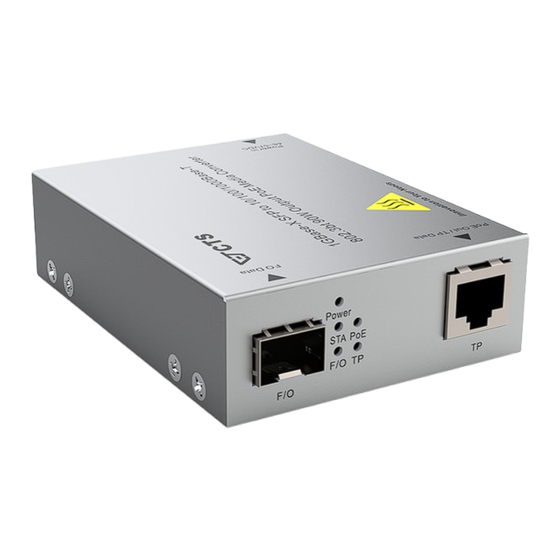

SRC/CVT Series Media Converter
Slim Type Mounting
Installation Guide
V1.0
1. Introduction
This Installation Guide is for SRC/CVT Slim Type Mounting, which is suitable for
the SRC and CVT series media converter.
For wall mounting, please refer to the SRC/CVT Slim Wall Mount Kit.
For DIN-rail mounting, please refer to the SRC/CVT Slim Wall+DIN Rail Kit.
Follow the guide to install the SRC or CVT series models in slim mounting type.
2. Order Information
We offer two combinations for you to choose from, and the item listed below
should be in the package.
SRC/CVT Slim Wall Mount Kit
- 1 x wall mounting bracket (L-shaped)
- screws
SRC/CVT Slim Wall+DIN Rail Kit
- 1 x wall mounting bracket (L-shaped)
- 1 x DIN-rail bracket
- screws
Advertisement
Table of Contents
Related Manuals for CTS SRC/CVT Series
Summary of Contents for CTS SRC/CVT Series
- Page 1 For wall mounting, please refer to the SRC/CVT Slim Wall Mount Kit. For DIN-rail mounting, please refer to the SRC/CVT Slim Wall+DIN Rail Kit. SRC/CVT Series Media Converter Follow the guide to install the SRC or CVT series models in slim mounting type.
- Page 2 3. Dimension - Wall mounting - DIN-rail mounting...
- Page 3 The following diagrams will take SRC-3002 for example. 4. Installation of Slim Type Wall Mounting 5. Installation of Slim Type DIN-Rail Mounting Step 1. Step 1. Align the wall mounting bracket with the media converter according to the Follow Section 4, 'Installation of Slim Type Wall Mount,' step 1 and step 2 to diagram below.
