Trademarks
CTS is a registered trademark of Connection Technology
Systems Inc. Contents subject to revision without prior
notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright Connection Technology Systems Inc.
This publication may not be reproduced as a whole or in
part, in any way whatsoever unless prior consent has been
obtained from Connection Technology Systems Inc.
FCC Warning
The CVT-5002SFP-MG media converter has been tested
and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These
standards are designed to provide reasonable protection
against harmful interference when these devices are
operated in a commercial environment. These devices
generate, use, and can radiate radio frequency energy and
may cause harmful interference to radio communications
unless installed in accordance with this User's Guide.
Operation of these devices in a residential area is likely to
cause harmful interference which will make the user
responsible for the appropriate remedial action at his / her
own expense.
CE Mark Warning
These are Class A products. In a domestic environment
these products may cause radio interference in which case
the user will need to consider adequate preventative
methods.
1. Overview
Thank you for purchasing CTS CVT-5002SFP-MG Media
Converter. In this user's guide, "Media Converter" will be
used as an alternative name for the CVT-5002SFP-MG.
Major Features:
- TP Auto-Negotiation
- MDI/MDIX Auto-Crossover
- 16K Bytes Jumbo Frame
- Store and Forward switching mechanism
- 4K MAC address
- Link Alarm
- Data-diode
- Flow Control *
* Automatically enabled when the F/O port operates at 10G, and
the copper port operates at 100M, 1G, 2.5G, or 5G.
2. Checklist
The items listed below should be included in the package:
- Media Converter
- AC-DC Power Adapter
- Quick Guide
Please contact your sales representative for assistance
immediately if any item is missing or damaged.
3. Installation
Set the DIP switch according to section four.
Insert the SFP transceiver into the SFP slot.
Attach fiber cable from the media converter to the fiber
network. The fiber connector must be matched –
transmit socket to receive socket.
Attach a UTP cable from the 100M/1/2.5/5/10GBASE-T
network to the RJ-45 port on the media converter.
Connect the power source to the media converter and
check that the Power LED lights up. The TP
Link/Act/Speed and F/O Link/Act/Speed LEDs will light
up when all the cables are properly connected.

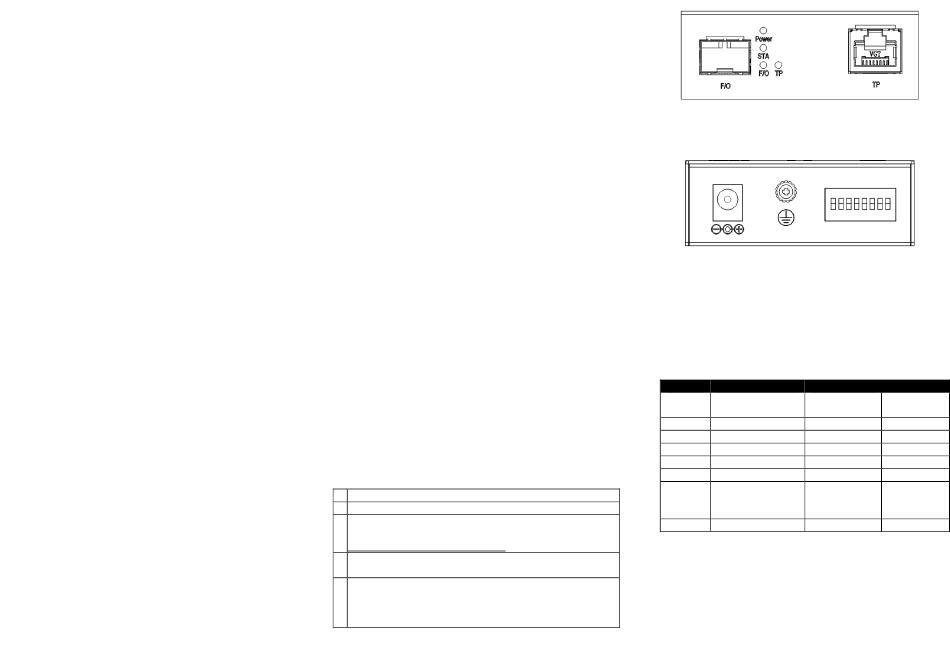

Figure 1. Front Panel of Media converter
Figure 2. Rear Panel of Media converter
4. DIP SWITCH Setting
The default setting for PIN 1 through PIN 3 are ON, PIN 4
through PIN 8 are OFF.
Pin NO.
Function
OFF / Down
Maximum
Up to
1
RJ-45 Speed
2.5Gbps
2
Fiber Mode
Force
3
Fiber Speed
1Gbps
4
Reserve
5
Link Alarm
Disabled
6
Data-diode
Disabled
Block TP to
Data-diode
7
fiber port
Direction
direction
8
Reserve
NOTE:
Please power off the device first when you change DIP
switch.
Pin 3 can only be activated when Pin 2 is in the OFF position.
Pin 7 can only be activated when Pin 6 is in the ON position.
Pin 7 can determine the blocking direction of Data-diode
when Pin 6 is in the ON position.
ON / Up
Up to
10Gbps
Auto
10Gbps
-
-
Enabled
Enabled
Block fiber
to TP port
direction
-
-
