Jabra 6670-904-102 How Do

Jabra Motion Office
How do I connect my Jabra wireless headset with the Jabra
Link 14201-41 to my Cisco 8941 or 8945 desk phone so I have
remote call control using my headset?

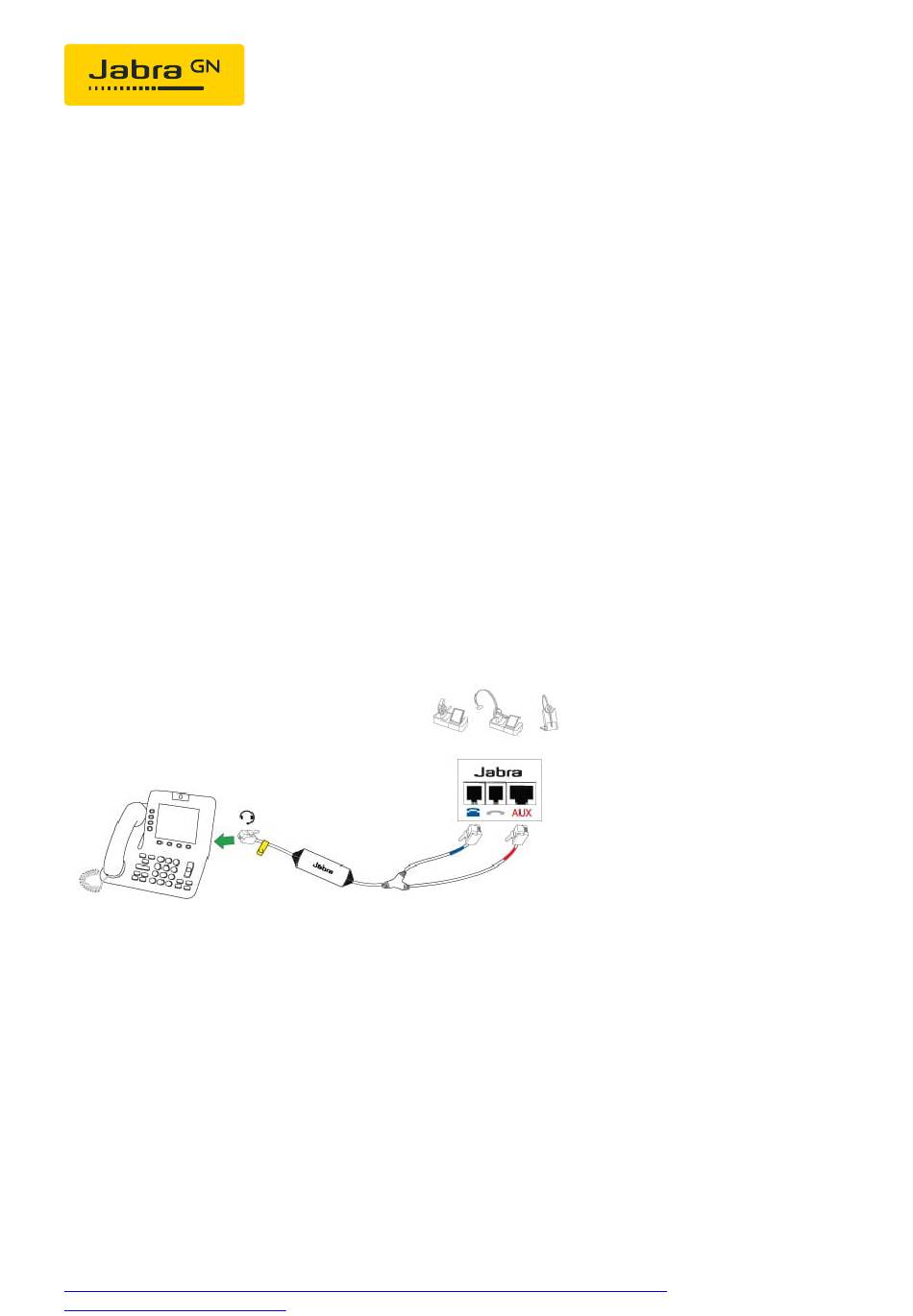

Connection:

1. Connect the AC adapter that is supplied with the headset to the
headset base. Connect the other end to an electrical outlet.
2. Connect the Jabra Link 14201-41 EHS cable with the red band to the
AUX interface on the headset base. Connect the end with the blue
band to the headset base socket that is marked with a phone icon.
3. Connect the single end of the Jabra Link 14201-41 EHS cable to the
headset interface on the Cisco 8941 or 8945 desk phone.

Configuration:

1. Ensure the EHS headset function on the desk phone is enabled. To
enable, press the Applications button on the desk phone. Use the
navigation pad and select buttons to scroll and select your
preferences. For Selected E-Hookswitch connected, select Yes.
2. Follow the setup instructions for your Jabra wireless headset. If the
headset base requires manual configuration, set the Electronic Hook
Switch setting to "IQ" and set the dial tone switch to position "A".
3. Make a call to the headset. If the volume of your voice is too loud or
