Evikon E2608-CO2-10K User Manual

Carbon dioxide
Synonyms: Carbonic acid gas, Carbonic anhydride, Carbon (IV) oxide; Dry ice (in
solid state).
Chemical formula CO
2
Molar weight 44
Relative gas density (to air) 1.52
Conversion 1 ppm = 1.80 mg/m
Boiling point Sublimes
Flammability Nonflammable
Odour Odourless
Hazards Dusts of various metals (Mg, Zr, Ti, Al,
Cr, Mn) are ignitable and explosive when
suspended in carbon dioxide.
In concentrations up to 1% (10 000
ppm), it will make some people feel
drowsy and give the lungs a stuffy
feeling. Concentrations of 7% to 10%
(70 000 to 100 000 ppm) may cause
suffocation, even in the presence of
sufficient
dizziness, headache, visual and hearing
dysfunction, and unconsciousness within
a few minutes to an hour.
Exposure limits TWA 9000 mg/m
(Directive 2006/15/EC)
STEL Not specified
Conversion of ppm to mg/m 3 is calculated for 25°C and 1 atm.
Indoor air quality in nonresidential buildings
CO2 level Description
< 450 ppm High quality (fresh air)
450-600 ppm Medium quality
600-1000 ppm Moderate quality
> 1000 ppm Low quality
Installation guidelines
(See Installation and connections section for general information.)
Since CO is heavier than air, it is recommended to locate the sensor not higher, than
2
the potential leakage. For air quality control place the sensor in the breathing zone.
Calibration
E2608-CO2 series devices have been calibrated by Manufacturer with standard
gas mixtures before delivery. Provided that the sensor is used under moderate
conditions, field recalibration is recommended every 5 years. Please contact your
dealer for more information.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with soft damp cloth. Do not use any abrasive cleaning agents. Do
not immerse the device into water or any cleaning media.
Delivery set
–Detector-transmitter E2608 (wall mount or duct mount version)
– Mounting accessories:
4 cross-shaped mounting lug with screws and 4 screws with plastic dowels
for wall mount version
rubber flange for duct mount version
fixing clamp for remote probe versions
E2608-CO2-10K_UM_EN
Specifications
Sensor type
Sampling method
Detection range
Resolution / digital unit
3
Accuracy
Response time T90
Sensor lifetime
Calibration interval
Signal update
Power supply options
Power consumption
Analog outputs
Outputs assignment
oxygen, manifesting as Output scale width
Digital interface
3
/5000 ppm
Load resistance
Relay otputs
Alarm setpoints
Cable connections
Enclosure
Dimensions
Operating conditions
CE marking
Other options
*Ambient pressure
compensation option
Warranty
This product is warranted to be free from defects in material and workmanship for a
period of one year from the date of original sale. During this warranty period
Manufacturer will, at its option, either repair or replace product that proves to be
defective. This warranty is void if the product has been operated in conditions outside
ranges specified by Manufacturer or damaged by customer error or negligence or if
there has been an unauthorised modification.
Evikon MCI OÜ
Tel. +372 733 6310
Rev 11.07.2019
optical (NDIR)
diffusion
0...10 000 ppm
1 ppm
± (50 ppm + 3% of reading)
in the range 300...5000 ppm
ca. 2 minutes
ca. 10 years
up to 5 years
every 1 second
11...30 VDC, 24 VAC
or 90...265 VAC (with mains power unit)
< 2 VA
2 × 4-20 mA / 0-10 V, user settable
OUT1 2 gas; OUT2 2 gas
> 10 × resolution
Recommended: 20-100% of the detection range
RS485, Modbus RTU protocol
no galvanic isolation
R < (Us - 2 V) / 22 mA for 4-20 mA
L
R > 250 kOhm for 0-10 V mode
L
2 × SPST, max 5 A, 30 VDC / 250 VAC
Determined by user within 5-95% of the detection range
screwless spring loaded terminals
light grey ABS, wall or duct mount, protection class IP65
H85 × W82 × D55 mm
0...+50 °C, 0...85 %RH; atmospheric pressure ±10%*
non ATEXrated areas, non-aggressive atmosphere
according to 2014/30/EU and EN61326-1 requirements
in the range 0,5...2 bar of absolute pressure
Teaduspargi 7, Tartu info@evikon.eu
50411 Estonia www.evikon.eu

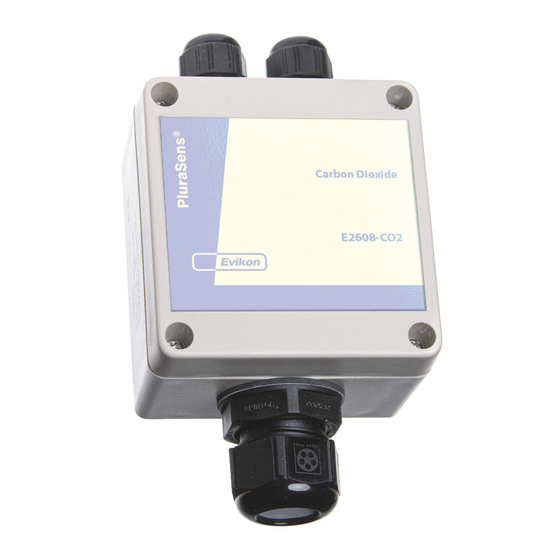

Carbon Dioxide Detector-Transmitter
E2608-CO2-10K
User Manual
®
PluraSens
