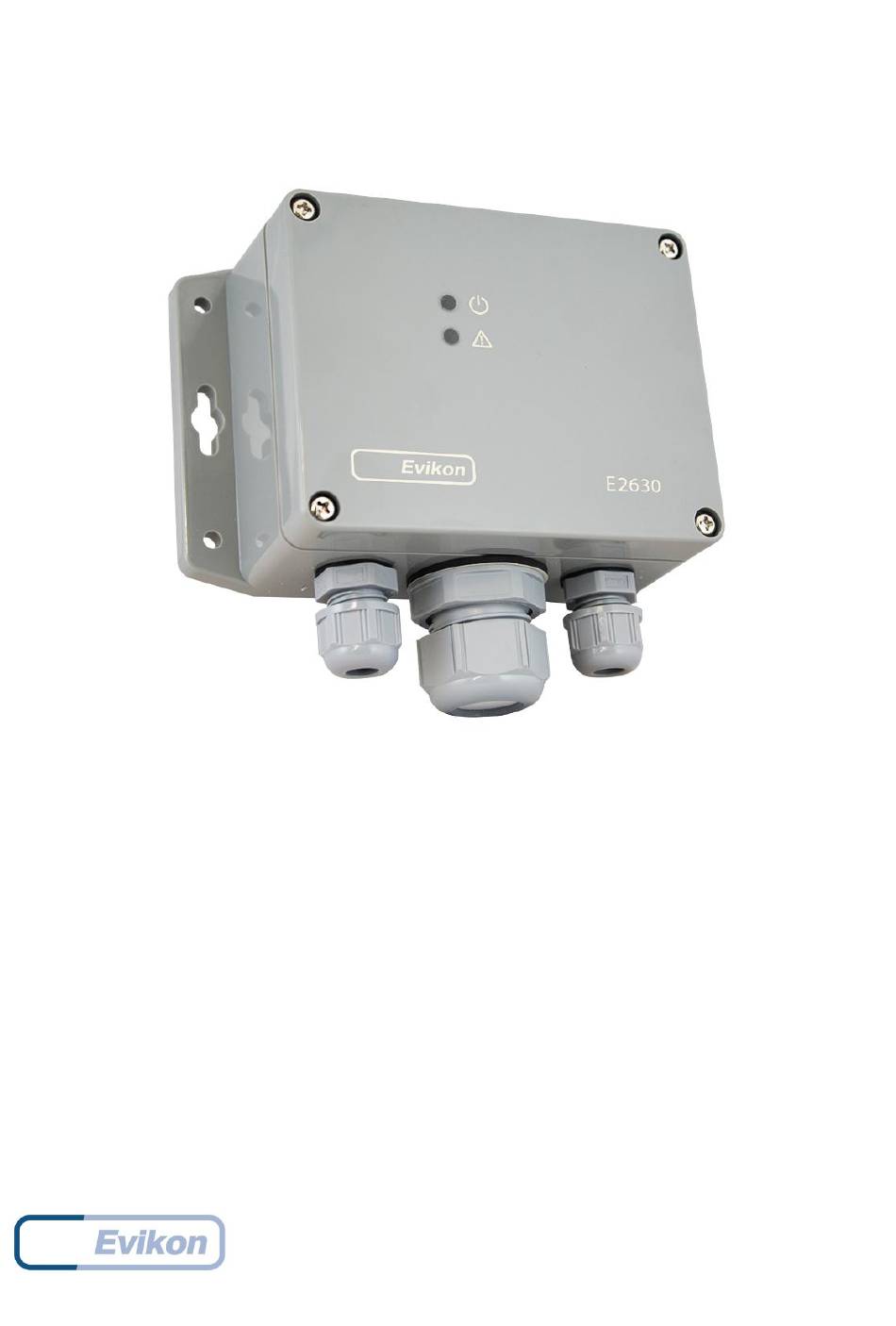

- Page 1 Refrigerant Detector E2630-HFC User Manual...
-
Page 2: Table Of Contents
E2630-HFC Rev 23.03.2021 Table of contents Hydrofluorocarbons Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Connections Operation Sensor probe handling Maintenance Calibration Delivery set Order code for E2630-HFC options Warranty Manufacturer contacts... -
Page 3: Hydrofluorocarbons
E2630-HFC Rev 23.03.2021 Hydrofluorocarbons HFCs are relatively non-flammable, chemically stable, and nonreactive. Classification of halocarbon refrigerants Group Refrigerants Chlorofluorocarbons (CFC) R11, R12 Hydrochlorofluorocarbons R22, R141b, R142b (HCFC) Hydrofluorocarbons (HFC) R32, R125, R134a, R143a Hydrofluoroolefins (HFO) R 1234ez, R1234yf, R1336mzz Chlorine containing refrigerants (CFC and HCFC) are considered to be damaging to the ozone layer and contributing to the greenhouse effect. - Page 4 E2630-HFC Rev 23.03.2021 asphyxiation in confined spaces. At higher temperatures (>250°C) decomposition products may include hydrofluoric acid (HF) and carbonyl halides. An escape of refrigerant through a leak may damage the refrigerating facilities.
-
Page 5: Specifications
E2630-HFC Rev 23.03.2021 Specifications Sensor type Metal oxide semiconductor Sampling method Diffusion Typical detection range 0-500 ppm Alarm setpoints 70-100-300 ppm (release-LOW-HIGH) Response time T90 <120 s Signal update Every 1 second Sensor lifetime > 5 years Calibration interval 12 months Power supply 24 VAC/DC or 90...265 VAC... -
Page 6: Product Description
E2630-HFC Rev 23.03.2021 Product description E2630 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent repeatability, stability, and long lifetime. Two relays RE1 and RE2 with switching contacts can be used to control alarm sirens, ventilation fans, shut-off valves, or other actuators. -
Page 7: Installation Guidelines
E2630-HFC Rev 23.03.2021 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ● Application (air quality control or leakage detection.) Properties of the space under investigation (room geometry, direction, and ●... -
Page 8: Mounting Dimensions
E2630-HFC Rev 23.03.2021 Mounting dimensions... -
Page 9: Connections
E2630-HFC Rev 23.03.2021 Connections 1. Unscrew four lid screws and detach the lid from the device; 2. Attach the device to the wall using provided screws through the side mounting holes or key slots (This step may be done before step 1, consider your convenience). -
Page 10: Operation
E2630-HFC Rev 23.03.2021 Operation During the first ca. 60 seconds after powering on E2630 performs a warming-up and self-diagnostic routine, indicated by the flashing of each LED. The upper dual-color LED remains continuously green in normal operation and blinks red in case of device or sensor fault. -
Page 11: Sensor Probe Handling
E2630-HFC Rev 23.03.2021 Sensor probe handling The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. The filter may be replaced if it gets strongly contaminated. To replace the PTFE filter, unscrew the sensor head cap and remove the old filter. -
Page 12: Maintenance
Calibration E2630-HFC detectors have been calibrated by the Manufacturer with standard gas mixtures before delivery. Provided that the sensor is used under moderate conditions, field recalibration is recommended every 12 months Please contact your dealer for more information. -
Page 13: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
