TECHNICAL DATA
MODEL
SKU
MAX WATTS
IP RATING
HOLDER
BODY TYPE
INPUT POWER
DIMENSION
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. This product is
warranted for manufacturing defects only.
This marking indicates that this product
should not be disposed of with other
household wastes.
WARNING
1.
Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. Proper grounding should be ensured throughout the installation.
4. User should prepare necessary accessories and spare parts (Not
Provided)
5. For Indoor Use only
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

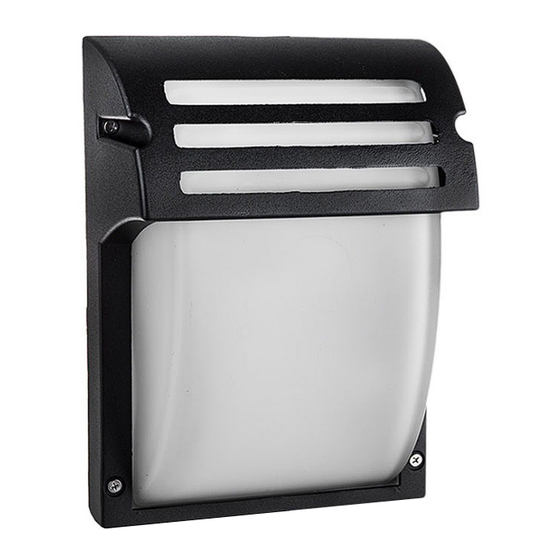

WALL LAMP
VT-754
7076, 7077
60W
IP44
E27 [Bulb not included]
Aluminium + Glass
AC: 220-240, 50Hz
245x180x93 mm
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code to
access the manual in multiple languages.
