Chicco FIT360 User Manual

Chicco FIT360 User Manual

Rotating convertible car seat
Hide thumbs Also See for FIT360:

Advertisement

For future use, store user guide
in compartment at front of base.
User Guide
IS0224E_03 08/23 (c)2023 Artsana USA, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIT360 and is the answer not in the manual?

Questions and answers

Aaron garza
February 9, 2025

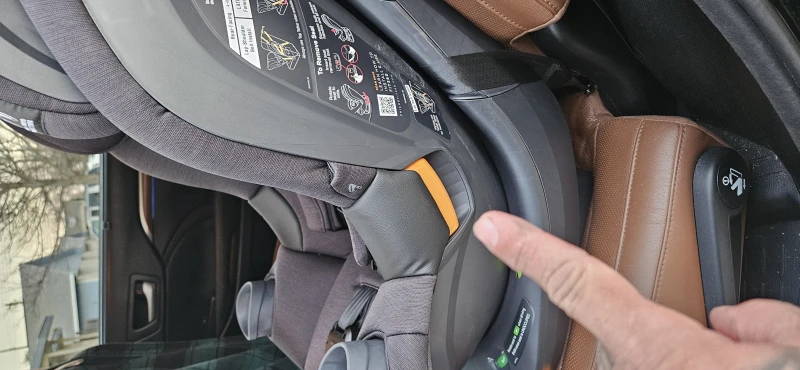

One of my Handel levers is broke because I tried to turn the cars eat and it just stays in place.

User image 67a7f44a2f9cf
1 comments:
Mr. Anderson
May 14, 2025

To fix a broken handle lever on a Chicco FIT360 car seat, follow these steps:

1. Identify the bottom and top pieces of the lever lock.
2. Locate the two small metal springs. Ensure the hooks on the springs face upward.
3. Align the hooks so they go inside the holes on each piece.
4. Position the spring so it rests inside the notch on the main buckle.
5. Assemble the top and bottom pieces together, ensuring the springs are correctly installed.

This will restore the lever function.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Chicco FIT360

  • Page 1 For future use, store user guide in compartment at front of base. User Guide IS0224E_03 08/23 (c)2023 Artsana USA, Inc.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Registration and Recall BASE INSTALLATION Child Guidelines If you have any problems with your Chicco Child Restraint, Base Install Safe Use Checklist or any questions regarding installation or use, please call: Install Using LAP-SHOULDER BELT Important Warnings...
  • Page 3: Registration And Recall

    REGISTRATION AND RECALL REGISTRATION AND RECALL Please complete the Registration Card that came with your Child Restraint and mail it promptly. Child Restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available, and the restraint’s model number and manufacturing date to: Artsana USA, Inc.
  • Page 4 CHILD GUIDELINES CHILD GUIDELINES This Child Restraint is designed for children ages Birth to 6 years old. See Select ONLY use this Child Restraint if the child meets BOTH of the following Rear-Facing Weight and Height requirements: on page 24. •...
  • Page 5 SAFE USE CHECKLIST SAFE USE CHECKLIST Ensure that the Child Restraint is properly leveled when installed: YOUR CHILD’S SAFETY DEPENDS ON YOU! You MUST follow the detailed instructions in this User Guide to ensure the steps below are performed correctly! BASE INSTALL requirements on page 50.
  • Page 6 IMPORTANT WARNINGS IMPORTANT WARNINGS WARNING WARNING DEATH or SERIOUS INJURY CAN OCCUR DEATH or SERIOUS INJURY CAN OCCUR FAILURE TO FOLLOW THESE INSTRUCTIONS AND THE PRODUCT Secure Child Properly LABELS CAN RESULT IN SERIOUS INJURY OR DEATH TO YOUR CHILD. •...
  • Page 7 IMPORTANT WARNINGS IMPORTANT WARNINGS WARNING WARNING DEATH or SERIOUS INJURY CAN OCCUR DEATH or SERIOUS INJURY CAN OCCUR Install Child Restraint Correctly Install Child Restraint Correctly • ALWAYS use the top tether strap on this child restraint, if a tether anchor is available. •...
  • Page 8 • DO NOT use any accessories, pads or products not included with this Child Restraint, unless PAGE INTENTIONALLY LEFT BLANK approved by Chicco USA. Doing so will void the warranty of this Child Restraint. • You MUST replace this Child Restraint if it has been involved in a crash, even if you cannot see visible damage.
  • Page 9: Best Practices

    In the event of a sharp turn, sudden stop, or crash, loose objects can be thrown • Contact Chicco USA by visiting our website at www.chiccousa.com or around and possibly cause serious injury to vehicle occupants. calling our Customer Service 1-877-424-4226. Please have Model and •...
  • Page 10 SEAT COMPONENTS SEAT COMPONENTS Adjustment Handle (Head Rest) Head Rest Newborn Buckle Tongue Harness Head Positioner Pockets Strap (Each Side) Shoulder Pads Newborn Body Cup Holders Positioner Chest Clip Flex-Forward Harness Seat Release Crotch Pad Buckle Handle Harness Harness (Each Side) Adjustment Release Button Strap...
  • Page 11 BASE COMPONENTS BASE COMPONENTS Tether Shoulder Belt Shoulder Belt Strap Path Path LeverLock LeverLock Release Door Handle LATCH Connector Recline Storage Bubble Level Adjustment Indicator Recline Handle LATCH (Each Side) Foot Ready to Ride Ready to Ride Indicator Indicator Instruction Manual Seat Lock Release Storage...
  • Page 12: Latch And Tether Components

    LATCH AND TETHER COMPONENTS LATCH AND TETHER COMPONENTS TETHER: Tether Strap Tether Strap Adjuster Tether Hook Tether LATCH: LATCH LATCH Strap LATCH Strap Adjuster LATCH Hooks...
  • Page 13 LATCH AND TETHER STORAGE LATCH AND TETHER STORAGE Always make sure LATCH components are properly stored in the compartment when not in use. LATCH STORAGE: Store each LATCH strap in the compartment located on the back side of the Child Restraint Base when not in use (a). TETHER STORAGE: Store Tether on the back of Child Restraint Base when not in use.
  • Page 14 SELECT REAR-FACING POSITION SELECT REAR-FACING POSITION WARNING! REAR-FACING use of this Child Restraint is ONLY for REAR-FACING: REAR - FACING children who meet ALL of the requirements shown here. If the child is not With Newborn Head and within these requirements because the child is too large, review the Body Positioner: NEWBORN POSITIONERS NO LATCH...
  • Page 15 SELECT FORWARD-FACING POSITION SELECT FORWARD-FACING POSITION WARNING! FORWARD-FACING use of this Child Restraint is ONLY for FORWARD-FACING: FORWARD - FACING children who meet ALL of the requirements shown here. If the child is not 25 – 65 lbs (11.4 – 29.5 kg) within these requirements because they are too large, select a different child NO LATCH seat.
  • Page 16: Removing Flex-Forward Crotch Pad

    REMOVING FLEX-FORWARD CROTCH PAD REMOVING FLEX-FORWARD CROTCH PAD Undo the Chest Clip and Buckle Tongues.
  • Page 17 REMOVING FLEX-FORWARD CROTCH PAD REMOVING FLEX-FORWARD CROTCH PAD Undo the snap button (a) and pull the strap out from behind the Harness Buckle (b). Pull the Harness Buckle down, and at the same time pull up on the Flex-Forward Crotch Pad to remove.
  • Page 18: Adjusting Crotch Strap

    ADJUSTING CROTCH STRAP ADJUSTING CROTCH STRAP Adjust Crotch Strap if strap is underneath child. When using Lap Belt Only installation (page 72), crotch strap must be in Position 1 at all times. Tuck the Buckle Tongues into the Buckle Tongue Pockets. Slide the lower section of the Backrest Padding down and remove it from the sleeve behind the top section of the Backrest Padding.
  • Page 19 ADJUSTING CROTCH STRAP ADJUSTING CROTCH STRAP With the Crotch Strap in Position 1 (a), Guide the Crotch Strap forward through the Crotch Strap Compartment (b) and pull the Crotch Strap into Position 2 (c). Thread Crotch Strap through the correct Crotch Strap Position 1 opening in the Seat Bottom Pad and reposition the Seat Bottom Pad.
  • Page 20: Newborn Head And Body Positioner

    To ensure a better fit for smaller infants the Newborn Head and Body Positioner may be needed. Do NOT use any other infant head rest, insert or pillows. Only use the one provided by Chicco for this Child Restraint. Fold the ends of the Newborn Head Positioner in towards the center of the Head Positioner.
  • Page 21 NEWBORN HEAD AND BODY POSITIONER NEWBORN HEAD AND BODY POSITIONER Pull Harness Buckle through slot in the bottom of Newborn Body Positioner. Pull both Harness Straps over the side panels of Newborn Body Positioner. Push Newborn Body Positioner firmly into Child Restraint(a) to make sure it is properly positioned (b).
  • Page 22: Install Flex-Forward Crotch Pad

    INSTALL FLEX-FORWARD CROTCH PAD INSTALL FLEX-FORWARD CROTCH PAD To attach the Flex-Forward Crotch Pad, slide the Harness Buckle up through the Flex-Forward Crotch Pad. Make sure to insert the bottom winged section of the Flex-Forward Crotch Pad down behind the Harness Buckle and into the Newborn Body Positioner opening.
  • Page 23: Vehicle Seating Positions

    VEHICLE SEATING POSITIONS VEHICLE SEATING POSITIONS Some vehicles have no seating positions which are compatible with this Child Restraint. If in doubt, contact the vehicle manufacturer for assistance. Only forward-facing vehicle seats can be used with this Child Restraint. Do not use on a folded Make sure no more than 3 inches down vehicle seat back.
  • Page 24: Vehicle Seat Belts

    VEHICLE SEAT BELTS VEHICLE SEAT BELTS The following types of vehicle belts MUST NOT be used to install this Child Restraint. The information in this section only applies to installation with vehicle seat belts. If any of the belt types listed below are in the chosen seating position, choose another vehicle seating position or use LATCH if available.
  • Page 25: What Is Latch

    WHAT IS LATCH? WHAT IS LATCH? Vehicle Top Tether Anchor Points WARNING: This Child Restraint is designed to be used with lower LATCH anchors at the standard spacing (11 inches (28 cm)) ONLY! Refer to vehicle owner’s manual for information about LATCH and Child Restraint installation positions.
  • Page 26: What Is A Tether

    WHAT IS A TETHER? WHAT IS A TETHER? The tether is a strap on your child restraint that connects to a tether anchor in your vehicle. Tether anchor locations vary from vehicle to vehicle. Check your vehicle owner’s Rear Shelf manual and look for the tether anchor symbol as shown.
  • Page 27 Failure to properly recline the Child Restraint could increase the child’s risk of serious injury or death. To install the Fit360 to the vehicle, the seat must be removed from the base. The Base can be installed using Lap/Shoulder Belt Install, LATCH Install, or Lap Belt Install.
  • Page 28 BASE INSTALL BASE INSTALL Before placing the Base in the vehicle, remove Tether from the storage clip on the back of Base. Place the Base on selected vehicle seat. Make sure it is not blocking the vehicle belt buckle. Lay Tether Strap over the back of the vehicle seat.
  • Page 29 BASE INSTALL BASE INSTALL Locate the Recline Adjustment Handle, as shown. Lift up on the Recline Adjustment Handle to adjust the Base by sliding it forward or backward. Locate the Bubble Level Indicator and adjust the Base recline to any position that the Bubble falls between the lines on the Bubble Level Indicator.
  • Page 30 BASE INSTALL BASE INSTALL Check that the headrest of the vehicle seat does not interfere with the Headrest of the Child Restraint. If the vehicle headrest pushes the Child Restraint forward, check your vehicle owner’s manual to see if headrest removal is permitted. If so, follow the vehicle owner’s manual to remove the headrest.
  • Page 31 INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT Lap-Shoulder Belt with Tether Strap is the Recommended Installation Method With the Base adjusted to the correct recline, open the LeverLock Door. Locate the LeverLock Release Handle in the middle of the LeverLock Door.
  • Page 32 INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT Pull any slack out of the lap and shoulder belt. Make sure the Lap Belt lays flat over the Belt Path on both sides of the Base Frame (a). Then guide the Shoulder Belt across the back of the Base Frame and slide it into the Shoulder Belt Path on the opposite side of the vehicle buckle (b).
  • Page 33: Install Using Lap-Shoulder Belt

    INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT Push the LeverLock Door closed, making sure the door clicks into place. Locate Tether Anchor in your vehicle (see pg. 48), and attach Tether “CLICK” Hook. Pull Tether Adjuster Strap to tighten. Always use the Tether Strap for installation.
  • Page 34 INSTALL USING LATCH INSTALL USING LATCH Lap-Shoulder Belt with Tether Strap is the Recommended Installation Method Do not use the lower anchors of the child restraint anchorage system (LATCH system) to attach this Child Restraint when restraining a child weighing more than 30 lbs (13.6 kg) for Rear-Facing and 35 lbs (15.9 kg) for Forward-Facing.
  • Page 35 INSTALL USING LATCH INSTALL USING LATCH Pull LATCH straps through the Base Frame opening (a). Then route the straps between the Base Frame and the LeverLock Door, as shown (b).
  • Page 36: Install Using Latch

    INSTALL USING LATCH INSTALL USING LATCH Locate the LATCH anchor bars in your vehicle. Attach both LATCH Connectors to the vehicle LATCH anchor bars. Pull up on the end of the LATCH Adjuster strap until strap is tight. Make Do not install by this method for sure to remove all of the slack in the LATCH straps.
  • Page 37 INSTALL USING LATCH INSTALL USING LATCH Make sure the LATCH strap lays flat over the belt guides on both sides of the Base Frame. Push the LeverLock Door closed, making sure the door clicks into place. “CLICK” Locate Tether Anchor in your vehicle (see pg. 48), and attach Tether Hook.
  • Page 38: Install Using Lap Belt Only

    INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY Lap-Shoulder Belt with Tether Strap is the Recommended Installation Method With the Base adjusted to the correct recline (see page 54), open the LeverLock Door. When installing with Lap Belt Only for Forward-Facing child weighing 25-40 lbs (11.4-18 kg), adjust the Base to Recline 2 ONLY (a).
  • Page 39 INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY Pull out the Vehicle Lap Belt. Then route the strap between the Base Frame and the LeverLock Door, as shown. Buckle the Vehicle Lap Belt. Remove any slack from the lap belt. Make sure the Lap Belt lays flat over the belt guides on both sides of the Base Frame.
  • Page 40 INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY Push the LeverLock Door closed, making sure the door clicks into place. Locate the Tether Anchor in your vehicle (see pg. 48), and attach Tether “CLICK” Hook. Pull Tether Adjuster Strap to tighten. Always use the Tether Strap for installation.
  • Page 41: Rear-Facing Setup

    REAR-FACING SETUP REAR-FACING SETUP WARNING - The seat cannot be used without being attached to the base. Infants may have difficulty breathing when in a sitting position. Make sure the seat is reclined properly so that your child’s head does not fall forward.
  • Page 42 REAR-FACING SETUP REAR-FACING SETUP Rotate the seat to the Rear-Facing position (a). Make sure the Ready to Ride Indicator is GREEN and not RED (b). If the Ready to Ride Indicator is RED, rotate the Seat without depressing the Release Handles to lock it into position.
  • Page 43: Forward-Facing Setup

    FORWARD-FACING SETUP FORWARD-FACING SETUP WARNING - The seat cannot be used without being attached to the base. Make sure the Base is installed securely. Holding the Seat at a 90 degree angle, line up the Seat Bottom to the Base. Insert the Seat into the Base until it clicks into position. “CLICK”...
  • Page 44 FORWARD-FACING SETUP FORWARD-FACING SETUP Rotate the seat to the Forward-Facing position (a). Make sure the Ready to Ride Indicator is GREEN and not RED (b). If the Ready to Ride Indicator is RED, rotate the Seat without depressing the Release Handles to lock it into position.
  • Page 45 SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS For a better fit in the Child Restraint with smaller infants, the Newborn Head and Body Positioner provided may be needed. See page 36 for more details. If Crotch Strap is under child, the crotch strap will need to be re-positioned, refer to page 32 “Adjusting Crotch Strap”.
  • Page 46 SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS To hold the straps out of the way, locate the Buckle Tongue Pockets on both sides of the Child Restraint. Slide each Buckle Tongue into the coordinating side pocket, as shown. Note: If Base is installed with Lap Belt Only (page 72) in Forward-Facing mode, see special instruction on page 100.
  • Page 47 SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS Place child in Child Restraint with child’s back flat against the back of the seat. Pull Harness Straps over the child’s shoulders and around the child’s waist. Make sure there are no twists in Harness Strap. Clothing, such as bulky winter coats that interfere with the proper placement or adjustment of the Harness system should never be used.
  • Page 48 SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS Adjust Harness Strap height position up or down by squeezing Adjustment Handle on top of Head Rest. Harness must be loose to avoid interfering with Head Rest height adjustment. Make sure Head Rest locks into position before tightening Harness.
  • Page 49 SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS Insert each Buckle Tongue into Harness Buckle; listen for a click (a). Pull up firmly on both Buckle Tongues to make sure that they are securely latched (b). “CLICK”...
  • Page 50: Securing Child With Harness

    SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS Fasten Chest Clip by moving the button half of the clip over top of the post side and bring them together; listen for a click. “CLICK” Harness straps must fit snugly and lay flat on the center of your child’s shoulders.
  • Page 51 SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS Tighten the harness by pulling slowly on Harness Adjustment Strap until the harness is snug on child (a). If you can pinch a fold in the strap at the child’s shoulders, the harness is too loose (b). If the harness is too loose pull the Harness Adjuster strap more.
  • Page 52 SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS Special Instructions for Grip Pads when using Fit360 with Lap Belt Only installation in Forward-Facing mode. Grip Pads are for Lap Belt Only Install (page 72) with a Forward-Facing child weighing 25 to 65 lbs (11.4 to 29.5 kg). DO NOT use Grip Pads for any other installation.
  • Page 53: Secure Child Checklist

    SECURING CHILD CHECKLIST SECURING CHILD CHECKLIST   Harness Straps must be snug. If you can pinch a fold in the Check the position of Chest Clip: Chest Clip should be centered on the child’s chest, level strap at the shoulders, the harness is too loose. A snug strap with the armpits.
  • Page 54: Installation On An Aircraft

    • This Child Restraint is certified for use on aircraft. Contact the airline prior to travel to discuss their Child Restraint policy. • Use this Child Restraint only on FORWARD-FACING aircraft seats. Lift the aircraft seat armrest up and place Fit360 on the seat. Rotate 90 degrees...
  • Page 55 Buckle the belt and remove all slack making sure the belt lays flat over the belt guides on both sides. Then rotate the Fit360 Seat into the Rear-Facing or Forward-Facing position. Make sure the Ready to Ride Indicator is GREEN and not RED. If the Ready to Ride Indicator is RED, rotate the Seat without depressing the Release Handles to “CLICK”...
  • Page 56: Cup Holder

    CUP HOLDER CUP HOLDER WARNING - Do NOT use Cup Holder to hold hot liquids. PLASTIC CONTAINERS ONLY - No glass or metal containers. Only use cups with less than 12 oz. (355 ml) capacity. Never place sharp or pointed objects in Cup Holder.
  • Page 57 CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE REMOVING SHOULDER PADS: Unhook the Velcro and remove Shoulder Pads as shown. INSTALL SHOULDER PADS: Re-attach Shoulder Pads by folding the hook and loop Tab over the Harness Strap (a). Secure both hook and loop Tabs together (b). Make sure they are oriented as shown (c).
  • Page 58 CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE REMOVING FLEX-FORWARD CROTCH PAD: Undo the snap button and pull the strap out from the Harness Buckle Strap (a). Pull the Harness Buckle down, and at the same time pull up on the Flex-Forward Crotch Pad to remove (b). See page 40 to install Flex-Forward Crotch Pad.
  • Page 59 CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE SOFTGOODS REMOVAL: Before you start, make sure Shoulder Pads, Waist Belt Pads, Flex-Forward Crotch Pad, Newborn Head and Body Positioner, and Cup Holders are removed. Also, undo the Harness Buckle and Chest Clip. Adjust Head Rest to its highest position (a). At the back of the Head Rest undo both snap buttons (b).
  • Page 60 CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE SOFTGOODS REMOVAL: Adjust Head Rest to its lowest position (a). At the back of the child restraint locate the fabric loop (b). Pull up and forward on the seat pad- ding. Then guide around the Head Rest and off the seat back frame. Pull the front edge of the seat padding up and guide the seat padding from around the Harness Release Button.
  • Page 61 CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE SOFTGOODS REMOVAL: At both sides of the seat frame, pull down the edge of the seat padding (a). Then guide the padding off and around the frame above the Seat Release Handle (b). Remove the Seat pad. INSTALL SOFTGOODS: Reverse the removing instructions above to reinstall.
  • Page 62 INSTALL CROTCH STRAP: Reverse the removing instructions above to reinstall. DO NOT USE Child Restraint if any part of the harness is damaged. For proper removal and installation of the harness straps visit the Chicco website at www.chiccousa.com or call 1-877-424-4226.
  • Page 63: Cleaning And Maintenance

    • Cleaning Plastics: water. Air dry. See page 116 for removal instructions. Sponge clean using warm water and mild soap. Towel dry. Do NOT remove LATCH or Adjuster straps. For additional information visit the Chicco website at www.chiccousa.com or call 1-877-424-4226.
