Xerox DocuColor 30 Settings Manual

Fiery X40 with version 1.0 Software, Digital Front End for DocuColor 40/30
Customer Support
Server Installation
The physical installation of the Fiery X40 server is done by a
Xerox Customer Service Engineer.
number below for a status if a Xerox Customer Service
Engineer has not arrived to perform this installation within one
day of delivery.
Installation on the network is a customer responsibility.
Some Software options are Customer Installable (i.e.
DocBuilder Pro).
Software Upgrades
Periodically, Xerox will make available bug fixes and other
software releases. Future releases will be designed to be
customer installable.
responsibility to perform the software upgrade activities.
Hotline numbers
The Xerox Customer Support Centers are available to provide
general information, answer questions, and dispatch service
calls. You can reach the Customer Support Center at the
following toll-free phone numbers:
United States
Canada
Analyst Services
A variety of services are available from your Xerox Systems
Analyst. All services are billable. Please contact your Sales
Representative for more information.
Customer Training
Customer Training is available on the Fiery X40. All training is
billable. Please contact your Sales Representative for more
information.
Reference Material
The X40 is shipped with a complete set of documentation for the
installation and use of the server on CD only. This documentation
is in one of two formats and is provided in the Customer Media
Package bundled with each server.
The following documentation
Documentation CD and is in Adobe Acrobat PDF format.
Setup: How to set-up and configure the Fiery X40 from the
LCD interface.
Installing Software: How to install client software and printer
files onto workstations from CD or WebTools.
Printing: How to print to the Fiery X40 from Macintosh,
Windows, and UNIX workstations.
Utilities: How to use remote utilities and WebTools to spool,
download files, and fonts, scan and calibrate.
The following documentation is in hardcopy format.
Customer Release Notes: Contains customer information
about the controller and client software that was not included
in the electronic customer documentation. This information
includes caveats and workarounds.
Terms and product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.
Customer Expectation Setting Document
December 1, 2000
Please call the Hotline
For those, it will be the customer's
1-800-821-2797
1-800-939-3769
is available on the

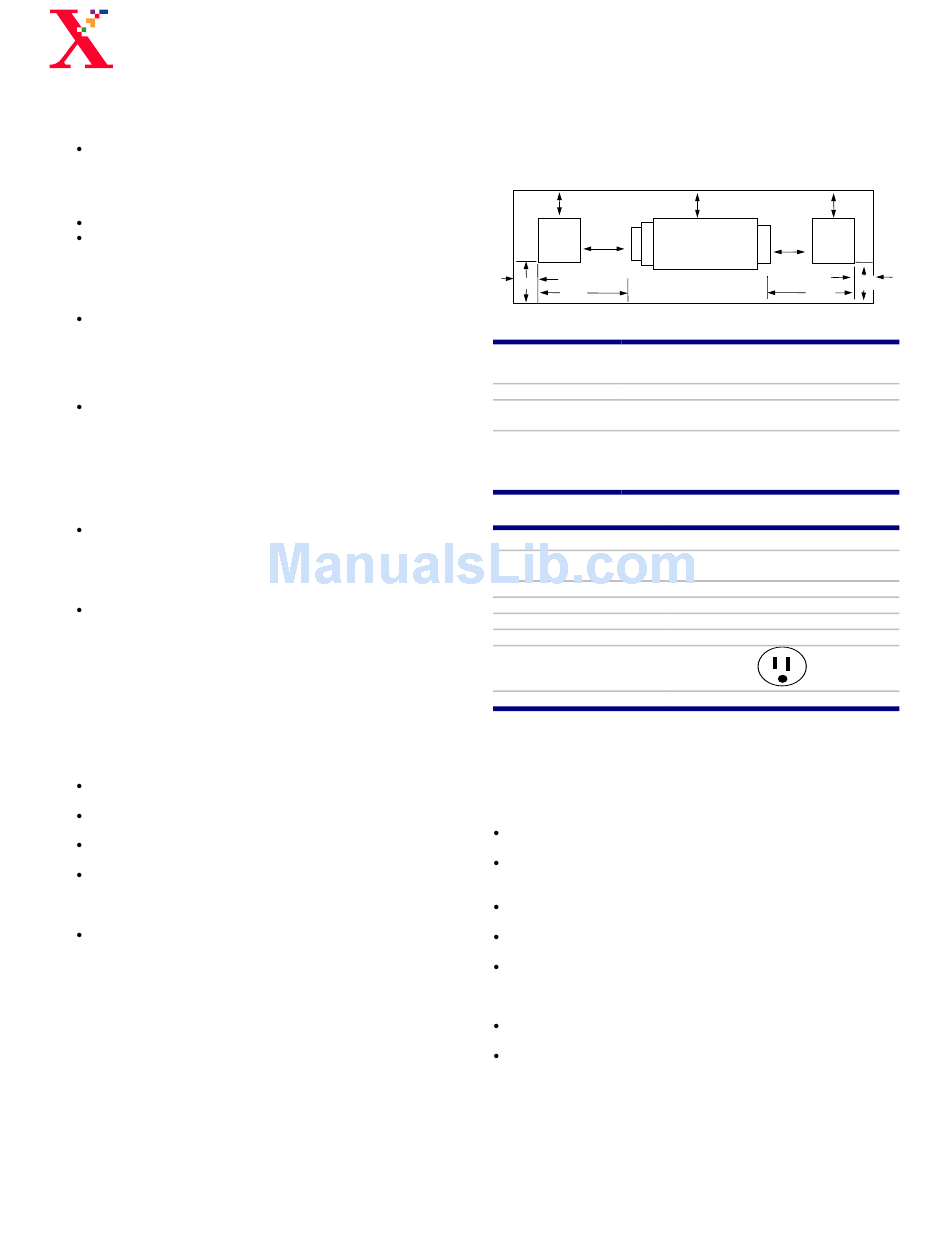

Space Requirements / Service Space Envelope
The following diagram is intended only as a representation of the
installation requirements of a fully configured DocuColor 30/40 with the
Fiery X40.
610 mm /
24 in
Work Surface
356 mm
or CWS
furniture 14 in
(if on left side)
50mm
25.8 in
2 in
655 mm
33.7 in
856 mm
Dimensions:
Weight:
Length of Server
Power cord
Length of cable
connecting the
Server to the
DocuColor 30/40
Electrical Requirements
Voltage
Amperage
Cycles (single phase)
Xerox Receptacle Part No.
Receptacle NEMA Part No.
Receptacle Diagram
Power
Note:
1. Surge protection is strongly recommended for all DFE installations.
2. The power source for the DFE must be continuous and not
User
interrupted by an on-site power failure.
Installation Considerations
Electrical requirements and space requirements must be satisfied
prior to equipment delivery.
A Xerox Customer Service Engineer (CSE) physically installs the
Fiery X40. The customer is responsible for configuring the DFE to
the network.
To enable System Administrators and others to work at the DFE,
the work surface should be desk height.
To enable Xerox Service Representatives to safely repair the
system, the work surface should measure at least 36" x 36 ".
The work surface of the DFE must not infringe on the space
required by the IOT and any attached accessories unless the work
surface is a table that has wheels and can be easily moved. Refer
to the DocuColor 30/40 Customer Expectations Setting Document.
There should be a minimum of 78 inches (1,981 mm) clearance
from the floor to the nearest overhead obstruction.
One Network drop is required for installation.
610 mm /
24 in
DocuColor 30/40 356 mm
WS
WS
14 in.
Minimum Space
Requirements for the
Fiery X40 Server
16.0" (H) x 25.0" (W) x 21.0" (D)
40.6 cm (H) x 63.5 cm (W) x 53.3 cm (D)
55.5 lbs. (25.5 kg)
88" (2.2 meters)
191" (4.8 meters)
Server
100 to 125 / 200 to 240 VAC RMS,
single phase, automatically configured
15
60 Hz, single phase
600S3704
5-15R
150 W maximum
610 mm /
24 in
Work Surface or
CWS furniture
(if on right side)
50 mm
25.8 in
2 in
655 mm
33.7 in
856 mm
