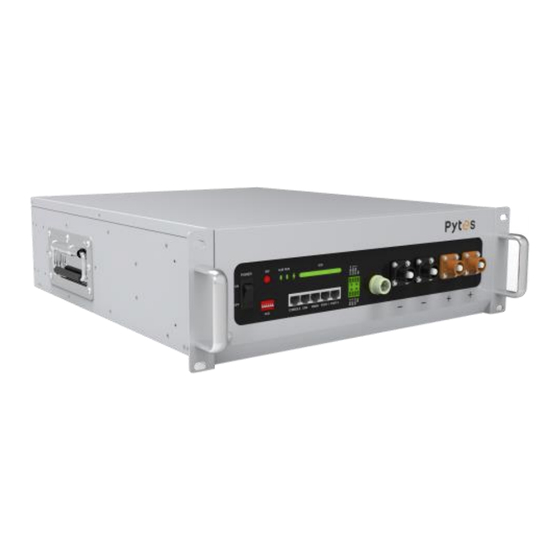

- Page 1 Installation and configuration manual With hoymiles Pytes Lithium Battery V5° series With hoymiles Inverter HYS-(3-6)LV-EUG1, HAS-(3-5)LV-EUG1...
-
Page 2: Table Of Contents
CONTENTS BOM LIST ....................3 1. Power Cable Connection ..............5 Step.1 ....................6 Step.2 ....................6 Step.3 ....................6 2. Communication Cable Connection ............7 3. Set The DIP Switch ................8 4. Start up the system ................8 5.Change the battery setting of the inverter .......... -
Page 3: Bom List
☐ The DC cables must be sized for (DC) connection method the maximum battery voltage and the maximum battery current (see battery manufacturer documentation). CAN communication or RS485 Com. Cable communication Depends on the number of V5° series Battery batteries and the connection method Inverter Hoymiles 、... - Page 4 Version of V5° Pin number of com. cable V5° & V5°α 2.We have already listed by hoymiles. But please confirm that the ARM version of inverter is 0.2.18 or above. If not, please updating it before setup the whole system.
-
Page 5: Power Cable Connection
HOW TO INSATLL communication cable Power cable connection connection Set the DIP switch Start up the system change the battery Check the battery soc setting of the inverter System monitoring CAUTION: If you want to get more inverter-related settings, please refer to the inverter user manual first. -
Page 6: Step.1
1. Power Cable Connection Step.1 Connect the red and black cables to the inverter DC connector as shown in Pic 1.1.1. Pic 1.1.1 Step.2 At the other end of the cable, connect to the battery as shown Pic 1.1.2.（Ensure that the battery power switch is off）... -
Page 7: Communication Cable Connection
Pic 1.1.2 2. Communication Cable Connection Connect the end of the cable to the inverter communication port as shown in pic 1.2.1. Make sure which communication port to use. Pic 1.2.1 Connect the other end of the cable to the battery communication port... -
Page 8: Set The Dip Switch
as shown in pic 1.2.2. (Ensure the correct sequence of communication cable) Pic 1.2.2 3. Set The DIP Switch Set the DIP switch as shown in Pic 1.3.1. Version of V5° ADD setting V5° & V5°α Pic 1.3.1 4. Start up the system Once the unit has been properly installed and the batteries are connected well, turn on the batteries, then turn on the Battery Breaker (if have), Grid Breaker, Backup Breaker and Main breaker to power the system. -
Page 9: Change The Battery Setting Of The Inverter
5.Change the battery setting of the inverter ※CAUTION:If you want more details about the batteries settings， please check the operating manual of inverters. Step1. Log in with your account and password on S-MILES Cloud. Pic 2.2.1 Select Li-ion Battery and PYTES BMS protocol. - Page 10 Pic 2.2.2...
-
Page 11: System Monitoring
Please download the S-Miles Cloud App from the Google Play Store or the Apple App Store. The QR code below can also be scanned to download the App. Please refer to the S-Miles Cloud User Manual from www.hoymiles.com/resources/download/ for details. Download the app from the app store. Pic 3.2.1...
