- Page 1 Portable Resonant Vertical Antenna (CHA PRV) Operator’s Manual Nevada - USA WWW.CHAMELEONANTENNA.COM VERSATILE – DEPENDABLE – STEALTH – BUILT TO LAST Rev. 9/27/2023...
-
Page 2: Table Of Contents
Chameleon Antenna Products ......................23 Be aware of overhead power lines when you are deploying the CHA PRV. You could be electrocuted if the antenna gets near or contacts overhead power lines. Photographs and diagrams in this manual may vary slightly from current production units due to manufacturing changes that do not affect the form, fit, or function of the product. -
Page 3: Introduction
Thank you for purchasing and using the Chameleon Antenna Portable Resonant Vertical (CHA PRV) antenna. The CHA PRV is a finely crafted lightweight and rugged antenna -- intended for extreme portable use, such as: Parks On the Air (POTA), Summits On the Air (SOTA), and other outdoor radio adventures where an efficient but highly portable antenna is required. -
Page 4: Hf Propagation
Table 1. Maximum Surface Wave Range by ionosphere again during multi-hop Frequency. propagation longer range communication. The most important thing The MUF is the frequency for which for the operator to understand about HF successful communications between two CHA PRV Page 4... - Page 5 Therefore, NVIS propagation can normally only be used on frequencies from around 2 to 10 MHz. Frequencies of 2 – 4 MHz are typical at night and 4 – 8 MHz during the day. The CHA PRV, like most vertical antennas, is not designed to utilize NVIS propagation.
-
Page 6: Cha Prv Sota Kit Components

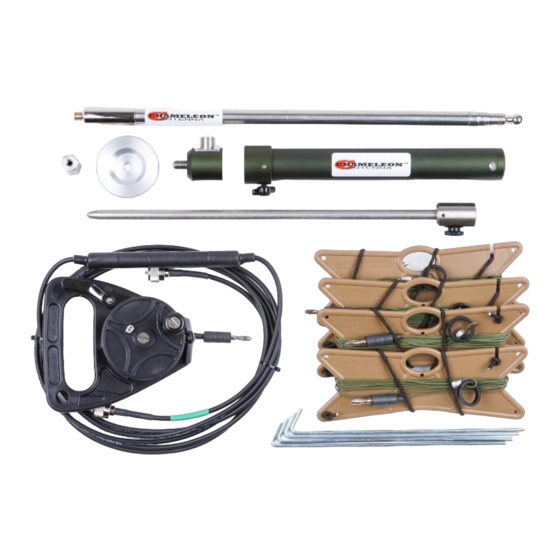

CHA PRV SOTA Kit Components The CHA PRV SOTA kit is comprised of the following components, see plates (2) and (3). Plate 2. Antenna Components. A. Multi-Configuration Coil. The Multi-Configuration Coil (CHA MCC) provides base-loaded inductance for the vertical antenna and is continuously adjustable for resonance at the operating frequency. - Page 7 F. Coaxial Cable. Coaxial Cable is 12 feet of RG-58 with an integrated RF Choke. It is used to connect the CHA PRV to the Radio Set. Longer lengths available as options. This antenna requires an RF Choke in the feedline.
- Page 8 N. Insulator Ring. An Insulator Ring is located at the end of each Counterpoise Wire. O. Variable Length Counterpoise. The Variable Length Counterpoise is a highly flexible method of providing the CHA PRV a necessary counterpoise from 5.3 to 54.0 MHz (60 – 6 meters).
-
Page 9: Cha Prv Pota Kit Components
CHA PRV POTA Kit Components In addition to the components included in the CHA PRV SOTA kit, the CHA PRV POTA kit contains the following (as shown in Plate [4]): P. CHA UCM. The Universal Clamp Mount is a heavy-duty clamp-style mount intended for use on balcony railings, tables, and other fixtures with flat horizontal surfaces with edges. -
Page 10: Ground Spike Mount Setup
Ground Spike Mount Setup Setup of the CHA PRV is quick and easy. Use the following procedure to setup the CHA PRV antenna using the ground Spike Mount. Refer to figure (1) while performing setup procedure. Caution: Do not attempt to drive the assembled antenna into the ground by grasping the Multi-Configuration Coil or striking the top of the Multi-Configuration Coil. - Page 11 9. Fully extent the Counterpoise Wire 14. Connect the other end of the Coaxial in a reasonably straight line away Cable to the radio set. from the antenna. 15. Perform an operational check (see “Operation of the Portable Resonant Vertical” section). CHA PRV Page 11...
-
Page 12: Operation Of The Portable Resonant Vertical
Operation of the Portable Resonant Vertical We’ve made operation of the CHA PRV easy. When using the basic antenna, it is tuned on 40 through 10 meters only by adjusting the height of the Multi-Configuration Coil and selecting the number of Counterpoise Wires. Use the following procedure to tune the CHA PRV. - Page 13 The initial settings in tables (2) and (3) were made in a typical operating environment, but could vary greatly from your values. Plate 5. Tuning Adjustment. CHA PRV Page 13...
-
Page 14: Operation On 6 And 2 Meters
Figure (2). Tuning Chart (40 – 10 meters). Operation on 6 and 2 meters The CHA PRV can be used on the 6 and 2 meter ham bands. To operate on these band: • Fully lower the Multi-Configuration Coil. • On 6 meters, install one or more Counterpoise Wires per that are ¼ wavelength long or use the optional Stinger Kit. -
Page 15: Tuning Theory
Figure (3) shows an actual photograph from an antenna analyzer for the CHA PRV tuned for 20 meters. When you initially set the height of the Multi- Configuration Coil, using Tables (2) or (3), you don’t know which region on the graph you will be, as an SWR meter only provides a number. -
Page 16: Recovery Procedure
Recovery Procedure To recover the CHA PRV, perform the following steps: 1. Disconnect the Coaxial Cable from the radio set and antenna. 2. Carefully roll (do not twist) the Coaxial Cable. 3. Unplug the Counterpoise Wires from the Puck hub. -
Page 17: Modular Upgrades
Chameleon Antenna products. Some upgrades shown below may be included in the CHA PRV SOTA and POTA kits, but can also be used with other Chameleon Antenna products you already own. These upgrades will increase the utility of your... - Page 18 RV or an apartment balcony. It enables operation on 7.0 through 54.0 MHz (40 through 6 meters). A tuner may be needed on 40 meters. You will need to use the 58 in. Telescopic Whip collapsed to the correct length to operate on 6 meters. CHA PRV Page 18...
- Page 19 It is suitable for semi-permanent installation. The CHA PRV with the Stinger Kit would be ideal for an RV, apartment, or condominium. CHA PRV...
- Page 20 • Type: Military-style collapsible whip antenna • Frequency: Approximately 5 to 22 MHz continuous (includes the 60 - 15 meter ham bands), when used with the CHA PRV • Length: 9 ft. 4 in. extended, less than 20 in. collapsed • Color: OD Green •...
-
Page 21: Accessories
• COIL LOCK – The Coil Lock is a device used to help support the added weight and momentum of the CHA SS17 17 ft. telescoping whip when used with the CHA PRV antenna. • CHA DPACK – A small to medium bodied/shoulder pack that is perfect to store the components of the CHA PRV and other portable station equipment ready for your next deployment. -
Page 22: Specifications
American Radio Relay League, Newington, CT. 2. 1987, Tactical Single-Channel Radio Communications Techniques (FM 24-18), Department of the Army, Washington, DC. 3. Turkes, Gurkan, 1990, Tactical HF Field Expedient Antenna Performance Volume I Thesis, U.S. Naval Post Graduate School, Monterey, CA. CHA PRV Page 22... -
