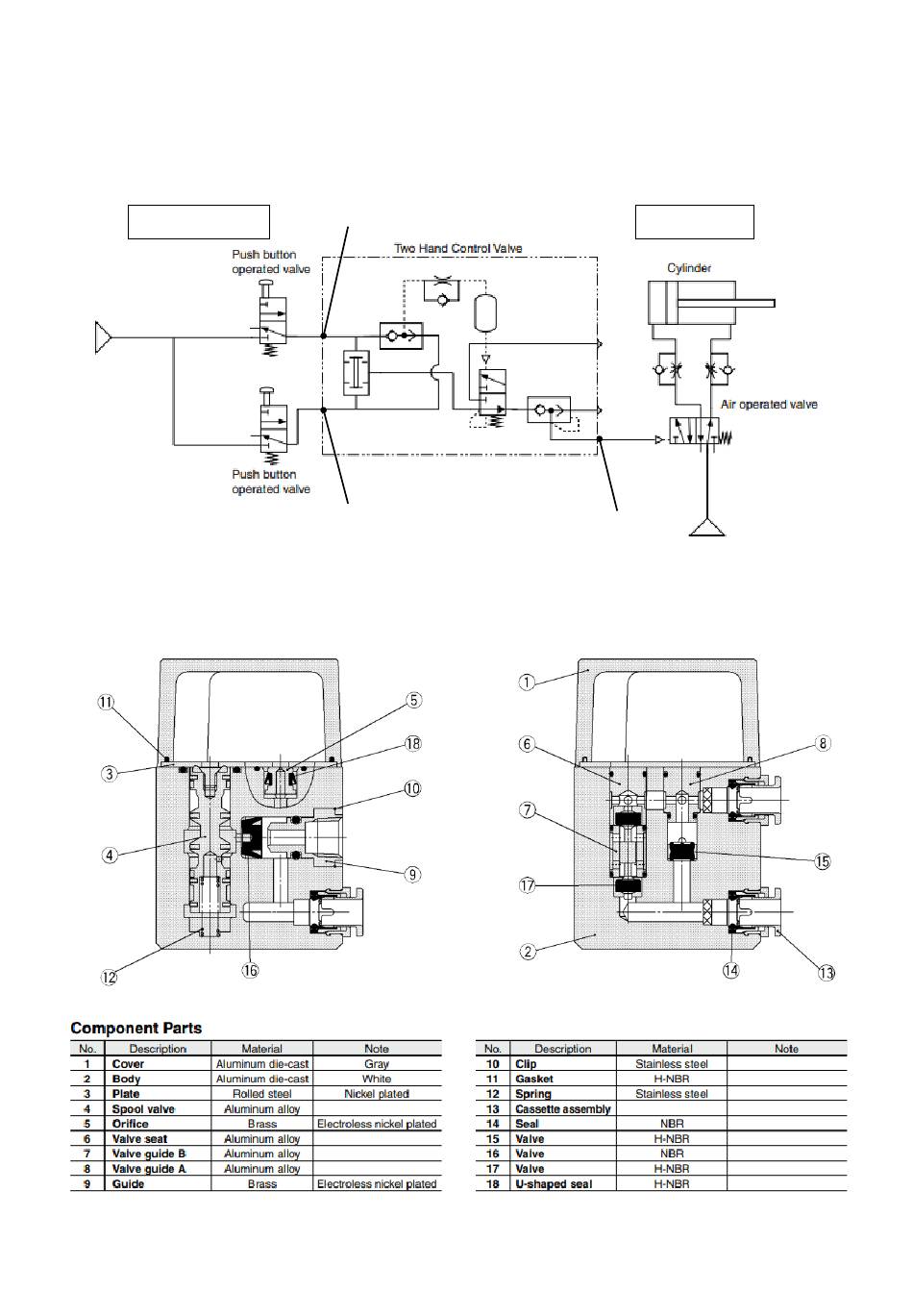

6. Example of a Basic Circuit Diagram
The basic circuit for use of VR51 is shown below.
Each value in parentheses indicates a port number of VR51-C07.
Operation side

7. Construction

Supply port P1(11)
Supply port P2(12)
- 10 -
Driving side
Output port A(2)
