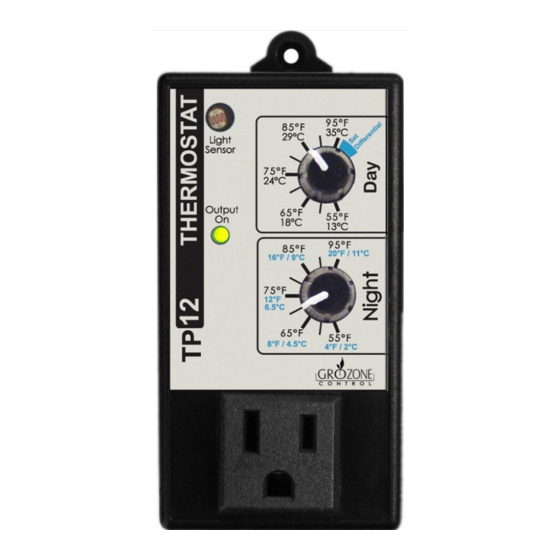

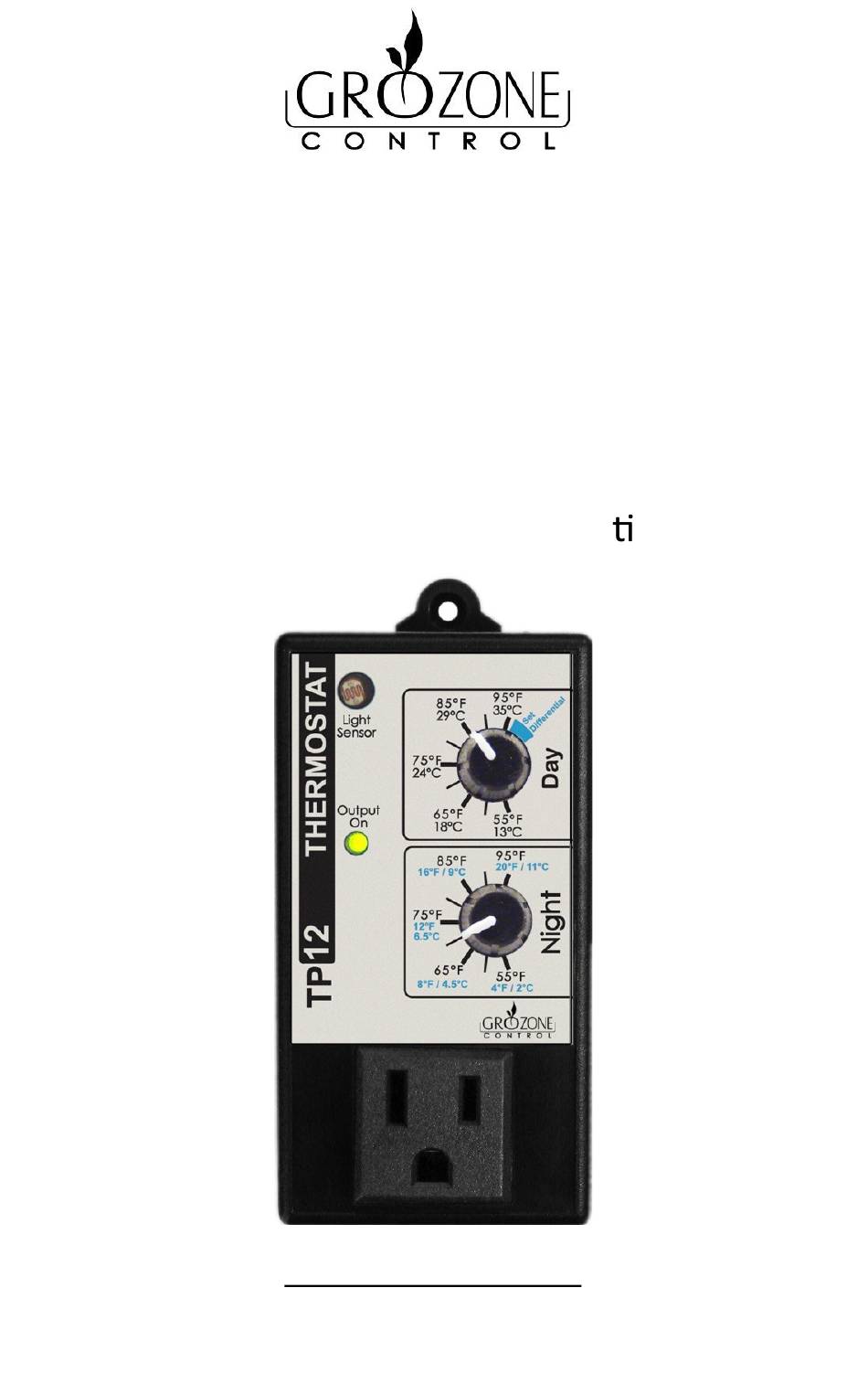

- Page 1 USER GUIDE TP12 Day & Night Thermostat with Adjustable Differen al www.grozonecontrol.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY NOTICE PRODUCT DETAILS INSTALLATION & OPERATION OPTIONAL SETTINGS/HEATING OPTIONAL SETTINGS/COOLING QUICK TROUBLESHOOTING GUIDE COMPLETE TROUBLESHOOTING GUIDE 10-11 WARRANTY & CUSTOMER SERVICE 12-13... -
Page 3: Safety Notice
SAFETY NOTICE IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS. To reduce the risk of electric shock, disconnect power to the 120V electrical outlet before installing or removing the unit. When removing the electrical wall plate, it may fall across plug pins or become displaced. -
Page 4: Product Details
PRODUCT DETAILS Opera on and Specifica ons Temperature setpoint between 55°F and 95°F / 13°C to 35°C. Adjustable Differen al from 4°F to 20°F / 2°C to 11°C. Example: In Cooling mode, if Setpoint is 75°F and Differen al is 10°F (±5°F), then the output will turn ON at 80°F and turn OFF at 70°F. -
Page 5: Installation & Operation
INSTALLATION & OPERATION Note: This unit has been set to perform in Cooling Mode. For Hea ng Mode, refer to Op onal Se ngs. Plug into 120 VAC outlet (see security no ce on page 1). 2-Set Differen al Light sensor (photocell) Turn Knob to ‘’Set differen al’’... -
Page 6: Optional Settings/Heating
Change to Hea ng Mode A. Unplug the unit. Set both values to minimum. B. Within 5 seconds, plug in the unit then set both values to maximum. C. "Output On" light turns ON TP12 is now in hea ng mode... -
Page 7: Optional Settings/Cooling
OPTIONAL SETTINGS/DAY CONTROL ONLY Change to Cooling Mode A. Unplug the unit. Set both values to maximum. B. Within 5 seconds, plug in the unit then set both values to minimum. C. "Output On" light turns ON TP12 is now in cooling mode... -
Page 8: Quick Troubleshooting Guide
QUICK TROUBLESHOOTING GUIDE... - Page 9 QUICK TROUBLESHOOTING GUIDE...
-
Page 10: Complete Troubleshooting Guide
COMPLETE TROUBLESHOOTING GUIDE Day & Night Thermostat with adjustable differen al TP12 1 – Before you start ***IMPORTANT: READ AND FOLLOW THESE INSTRUCTIONS BEFORE STARTING THE TEST. THE UNIT MUST BE UNPLUGGED. · DO NOT PLUG A LOAD INTO THE OUTLET UNTIL STEP 9. - Page 11 COMPLETE TROUBLESHOOTING GUIDE STEP HANDLING AND TEST DESCRIPTIONS EXPECTED RESULTS Cover the Light Sensor completely · with the palm of your hand or black Output On indicator will electrical tape (a single finger will turn OFF a er 6 to 8 NOT cover the sensor seconds.
-
Page 12: Warranty & Customer Service
WARRANTY & CUSTOMER SERVICE DO YOU HAVE A PROBLEM WITH YOUR CONTROLLER ? PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE THEM FOR FUTURE REFERENCE. 1. I think my controller is damaged, or it simply does not work as indicated in the user guide, what should I do? Please refer to the troubleshoo ng steps. - Page 13 To avoid being charged for the accessories, be sure to include all pieces. Thanks for your coopera on. Any Grozone Control product that is returned with obvious signs of user · neglect will not be covered by the warranty. Grozone Control exercises the right to make final decisions in these ma ers.
