- Page 1 USER GUIDE Short cycle mer www.grozonecontrol.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY NOTICE INSTALLATION & OPERATION OPTIONAL SETTINGS/24-HOUR CONTROL OPTIONAL SETTINGS/DAY CONTROL ONLY OPTIONAL SETTINGS/NIGHT CONTROL ONLY QUICK TROUBLESHOOTING GUIDE COMPLETE TROUBLESHOOTING GUIDE 10-11 WARRANTY & CUSTOMER SERVICE 12-13 PRODUCT DETAILS... -
Page 3: Safety Notice
SAFETY NOTICE IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS. To reduce the risk of electric shock, disconnect power to the 120V electrical outlet before installing or removing the unit. When removing the electrical wall plate, it may fall across plug pins or become displaced. -
Page 4: Installation & Operation

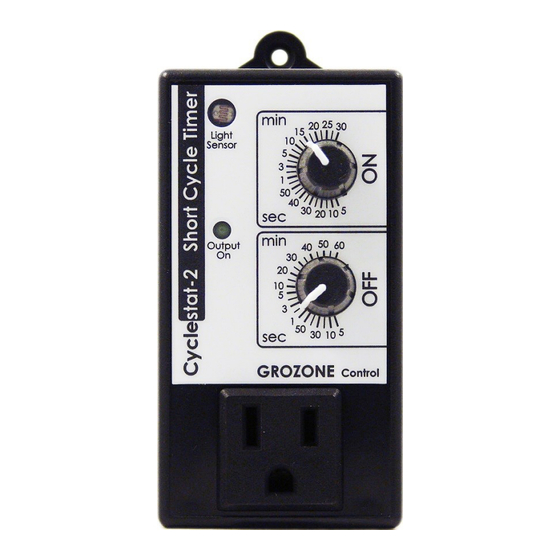

INSTALLATION & OPERATION Note: This unit has been set to perform in 24-hour control mode. For Night control only or Day control only, refer to Op onal se ngs. Set Values Light sensor (photocell) ON Time: 5 sec to 30 min. Dura on for which equipment will run. -
Page 5: Optional Settings/24-Hour Control
A. Unplug the unit. Set both values to minimum. B. Within 5 seconds, plug in the unit then set both values to maximum. C. "Output On" light turns ON or OFF according to actual se ng. CY2 is now in "24-hour control" mode... -
Page 6: Optional Settings/Day Control Only
B. Within 5 seconds, plug in the unit then set top value to minimum followed by bo om value to minimum. C. "Output on" light turns ON or OFF according to actual se ng. CY2 is now in "Day control only" mode... -
Page 7: Optional Settings/Night Control Only
B. Within 5 seconds, plug in the unit then set bo om value to minimum followed by top value to minimum. C. "Output on" light turns ON or OFF according to actual se ng. CY2 is now in "Night control only" mode... -
Page 8: Quick Troubleshooting Guide
QUICK TROUBLESHOOTING GUIDE... - Page 9 QUICK TROUBLESHOOTING GUIDE...
-
Page 10: Complete Troubleshooting Guide
COMPLETE TROUBLESHOOTING GUIDE Short Cycle mer with photocell 1 – Before you start *IMPORTANT: READ AND FOLLOW THESE INSTRUCTIONS BEFORE STARTING THE TEST. DO NOT CONNECT UNIT BEFORE STEP 1 OF THE TEST. · DO NOT CONNECT A LOAD INTO THE UNIT BEFORE STEP 4 OF THE TEST. ·... - Page 11 COMPLETE TROUBLESHOOTING GUIDE STEP HANDLING AND TEST DESCRIPTIONS EXPECTED RESULTS Cover the Light Sensor completely · Output On indicator with the palm of your hand or black will turn OFF a er 6-8 electrical tape (a single finger will seconds. NOT cover the sensor appropriately).
-
Page 12: Warranty & Customer Service
WARRANTY & CUSTOMER SERVICE DO YOU HAVE A PROBLEM WITH YOUR CONTROLLER ? PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE THEM FOR FUTURE REFERENCE. 1. I think my controller is damaged, or it simply does not work as indicated in the user guide, what should I do? Please refer to the troubleshoo ng steps. - Page 13 To avoid being charged for the accessories, be sure to include all pieces. Thanks for your coopera on. Any Grozone Control product that is returned with obvious signs of user · neglect will not be covered by the warranty. Grozone Control exercises the right to make final decisions in these ma ers.
-
Page 14: Product Details
PRODUCT DETAILS Opera on and Specifica ons ON me: 5 seconds to 30 minutes. OFF me: 5 seconds to 60 minutes. Starts with ON me when the controller is plugged into a power outlet. Timing precision +/- 1% Electrical Specifica ons: See the ra ng label on your product. - Page 15 NOTE...
