- Page 1 USER GUIDE Digital Timer www.grozonecontrol.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY NOTICE PRODUCT DETAILS INSTALLATION & OPERATION 5-6-7 QUICK TROUBLESHOOTING GUIDE COMPLETE TROUBLESHOOTING GUIDE 10-11-12 WARRANTY & CUSTOMER SERVICE 13-14... -
Page 3: Safety Notice
SAFETY NOTICE IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS. To reduce the risk of electric shock, disconnect power to the 120V electrical outlet before installing or removing the unit. When removing the electrical wall plate, it may fall across plug pins or become displaced. -
Page 4: Product Details
PRODUCT DETAILS Opera on and Specifica ons Input/Output voltage: 120V. Output current: rated 15A for general purpose load. DAY or NIGHT ON mes range from 5 seconds to 60 minutes. DAY or NIGHT OFF mes range from 1 minute to 12 hours. Unit starts with ON me at power up in DAY condi on. -
Page 5: Installation & Operation

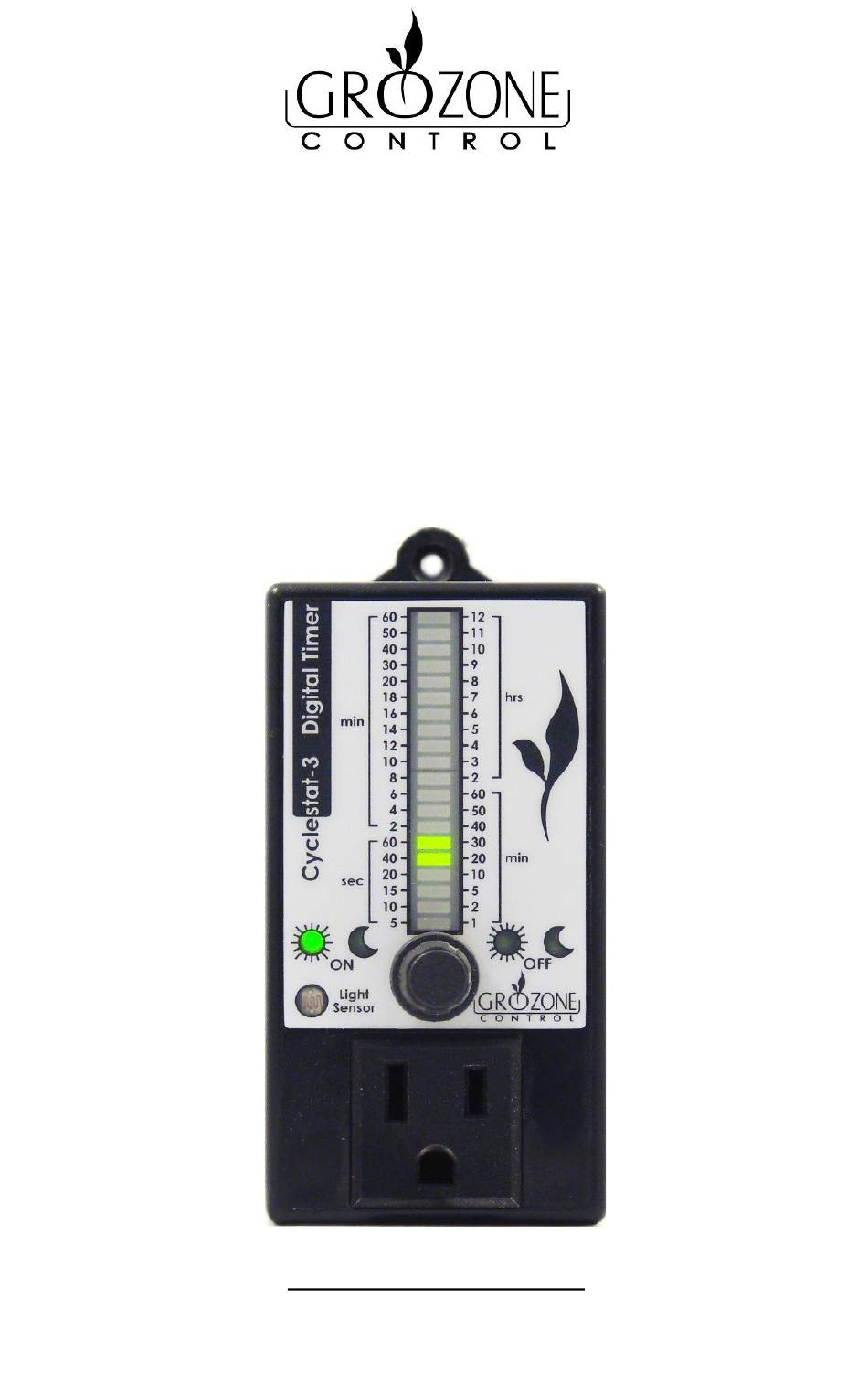

INSTALLATION & OPERATION Bargraph Display Use SCALE on LEFT SIDE for ON mes (5 seconds to 60 minutes) Use SCALE on RIGHT SIDE for OFF (1 minute to 12 hours) Light sensor (photocell) 120V Output plug DAY AND NIGHT DETECTION The photocell detects a NIGHT condi on when it senses darkness for a minimum period of 8 seconds. - Page 6 INSTALLATION & OPERATION Set Values Night ON Time Day OFF Time Indicator Indicator Night OFF Time Day ON Time Indicator Indicator Photocell Click knob to select mes and turn to set values in this order: ON me : Indicator is steady lit (not blinking), rotate knob to ·...
- Page 7 INSTALLATION & OPERATION Connect your equipment Connect your pump or other equipment into the 120V outlet in front of your mer. BLINKING INDICATOR AND TIME COUNTDOWN A blinking indicator shows you which " me" is currently running. Countdown is shown on display at all mes during normal cycle opera on. Exemple 1: DAY ON Indicator is blinking.
-
Page 8: Quick Troubleshooting Guide
QUICK TROUBLESHOOTING GUIDE... - Page 9 QUICK TROUBLESHOOTING GUIDE...
-
Page 10: Complete Troubleshooting Guide
COMPLETE TROUBLESHOOTING GUIDE Digital cycle mer with display 1 – Before you start *IMPORTANT: READ AND FOLLOW THESE INSTRUCTIONS BEFORE STARTING THE TEST. DO NOT CONNECT UNIT · Night ON Time Day OFF Time BEFORE STEP 1 OF THE TEST. Indicator Indicator CONNECT A LOAD INTO THE... - Page 11 COMPLETE TROUBLESHOOTING GUIDE HANDLING AND TEST STEPS EXPECTED RESULTS DESCRIPTIONS DAY ON me indicator is STEADY LIT. 2nd bar of display (from Click knob once to enter Times bo om) is STEADY LIT. · Se ngs Turn knob to set DAY ON me The load connected to 120V ·...
- Page 12 COMPLETE TROUBLESHOOTING GUIDE HANDLING AND TEST STEP EXPECTED RESULTS DESCRIPTIONS DAY ON me or DAY OFF me indicator is BLINKING, meaning ON or OFF me countdown is underway. The unit will cycle 10 seconds Click knob once to resume ON followed by 1 minute OFF. ·...
-
Page 13: Warranty & Customer Service
WARRANTY & CUSTOMER SERVICE DO YOU HAVE A PROBLEM WITH YOUR CONTROLLER ? PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE THEM FOR FUTURE REFERENCE. 1. I think my controller is damaged, or it simply does not work as indicated in the user guide, what should I do? Please refer to the troubleshoo ng steps. - Page 14 To avoid being charged for the accessories, be sure to include all pieces. Thanks for your coopera on. Any Grozone Control product that is returned with obvious signs of user · neglect will not be covered by the warranty. Grozone Control exercises the right to make final decisions in these ma ers.
- Page 15 NOTE...
- Page 16 Rev. 3.0 www.grozonecontrol.com...
