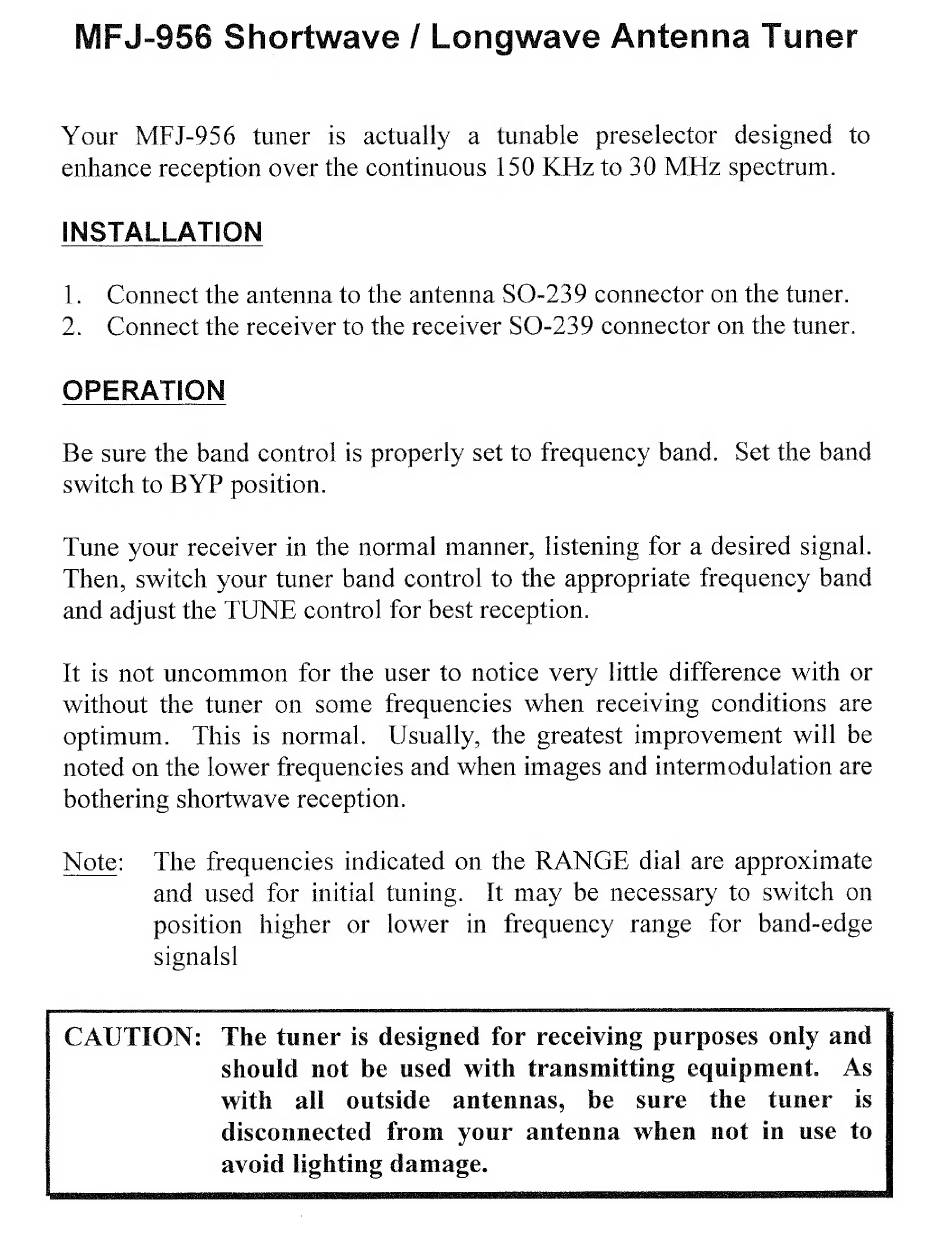

MFJ-956 Shortwave / Longwave Antenna Tuner
Your MFJ-956 tuner is actually a tunable preselector designed to
enhance reception over the continuous 150 KHz to 30 MHz spectrum.
INSTALLATION
1. Connect the antenna to the antenna SO-239 connector on the tuner.
2. Connect the receiver to the receiver SO-239 connector on the tuner.
OPERATION
Be sure the band control is properly set to frequency band. Set the band
switch to BYP position.
Tune your receiver in the normal manner, listening for a desired signal.
Then, switch your tuner band control to the appropriate frequency band
and adjust the TUNE control for best reception.
It is not uncommon for the user to notice very little difference with or
without the tuner on some frequencies when receiving conditions are
optimum. This is normal. Usually, the greatest improvement will be
noted on the lower frequencies and when images and intermodulation are
bothering shortwave reception.
Note: The frequencies indicated on the RANGE dial are approximate
and used for initial tuning. It may be necessary to switch on
position higher or lower in frequency range for band-edge
signals
| CAUTION: The tuner is designed for receiving purposes only and §
should not be used with transmitting equipment.
As |
with all outside antennas, be sure the tuner is |
disconnected from your antenna when not in use to |
avoid lighting damage.
