TABLE OF CONTENTS
Table of contents ..................................................................................................................................................1
Introduction ...........................................................................................................................................................1
Features:...........................................................................................................................................................1
Specifications:...................................................................................................................................................2
Installation.............................................................................................................................................................2
Power Wiring: ...................................................................................................................................................2
Splcd Ir Wiring: .............................................................................................................................................2
Splcd Wiring Over Cat5:...............................................................................................................................3
Ir Receiver Wiring:...........................................................................................................................................3
High Ir Out Wiring:...........................................................................................................................................4
INTRODUCTION

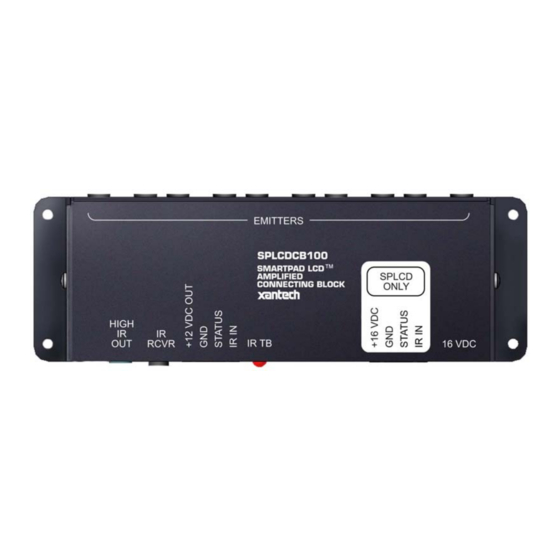

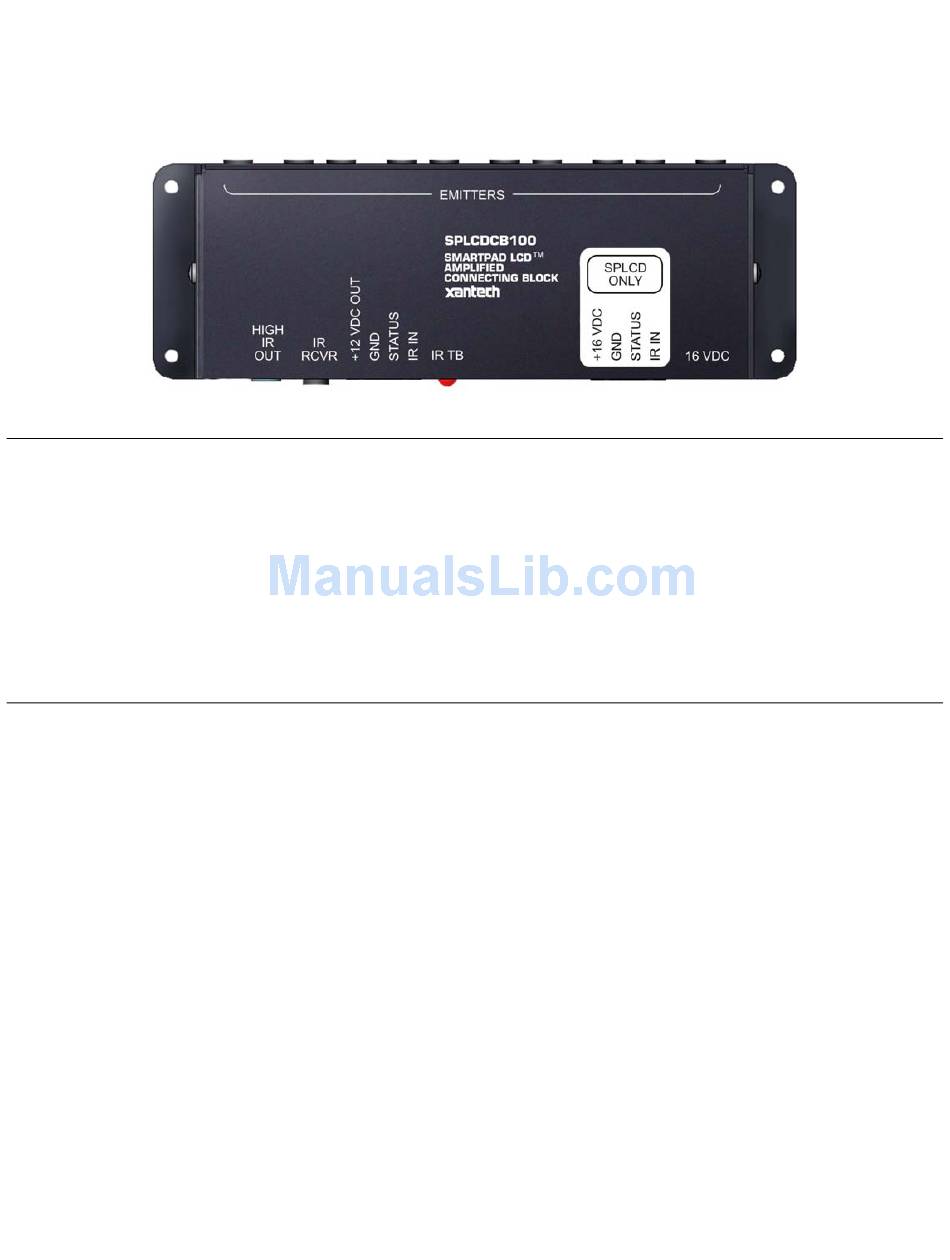

The SPLCDCB100 Connecting Block allows any combination of SmartPad LCD™ panels and standard Xantech IR
Receivers to be connected in parallel while providing 10 Amplified Emitter outputs (expandable to 100 Emitter Outputs).
The SPLCDCB100 allows central 16VDC powering (for SmartPad LCD™ panels) and includes a regulated 12VDC
Voltage output for powering all standard Xantech IR Receivers (such as the 291-90, 490-90, and 780-90 Plasma Series).
This enables all devices to be wired back to the head-end for centralized wiring distribution.
The SPLCDCB100 also features 10 amplified emitter outputs to assure proper emitter signal strength allowing for longer
emitter runs (up to 500ft with 18AWG wire). The SPLCDCB100 emitter output can also be expanded using Xantech's 790-
00 Emitter Expansion Block to accommodate any project.
FEATURES:
•
Screw-Terminal Connections for Voltage, Status, IR and GND for SmartPad LCD™ Connection
•
Built-In 12vDC Regulator for powering Xantech IR Receivers
•
10 Amplified Emitter Outputs for Xantech full line of IR Emitters (282M, 283M, 284M etc..)
•
3.5mm Quick-Connect Jack for easy IR Receiver Input (also screw-terminal connection for IR Receivers)
•
High IR OUT for expansion to Xantech 790-00 Connecting Block (Connect up to nine 790-00 for a total of 100-
Emitters)
•
IR Talk Back LED for system verification
•
Easily mounts to flat wooden, plastic, or metal surfaces using the included screws.
INSTALLATION INSTRUCTIONS
MODEL SPLCDCB100
SmartPad LCD™ Amplified IR Connecting Block
Advertisement
Table of Contents
Related Manuals for Xantech SPLCDCB100
Summary of Contents for Xantech SPLCDCB100
- Page 1 The SPLCDCB100 also features 10 amplified emitter outputs to assure proper emitter signal strength allowing for longer emitter runs (up to 500ft with 18AWG wire). The SPLCDCB100 emitter output can also be expanded using Xantech’s 790- 00 Emitter Expansion Block to accommodate any project.
- Page 2 SPLCD IR WIRING: 1. Wire 4-Conductor 18AWG from the SPLCD’s IR OUT, GND, STATUS (optional) and +16VDC terminals back to the appropriate terminals of the SPLCDCB100 Connecting Block. 18AWG can be run in excess of 1000ft. See Figure 1 for wiring examples.
- Page 3 GND terminals and confirm the voltage is between 13VDC and 16VDC. IR RECEIVER WIRING: 1. For IR Receivers with Xantech’s Quick-Connect Stereo Mini Plug, simply plug directly into the 3.5mm IR Receiver Jack on the SPLCDCB100 connecting block. 2. For all other wiring configurations, connect the 12VDC, GND, STATUS (optional), and IR Output wires to the appropriate of the SPLCDCB100 Connecting Block.
- Page 4 The HIGH IR OUT wiring is for emitter expansion to Xantech’s 790-00 passive Connecting Block. Up to nine 790-00 Connecting Blocks can be combined for a total of 100 emitter ports. 1. Use a Mono Mini cable from the SPLCDCB100 High IR Out connector to either of the two HIGH IR IN/OUT connectors on the 790-00 Connecting Block.
