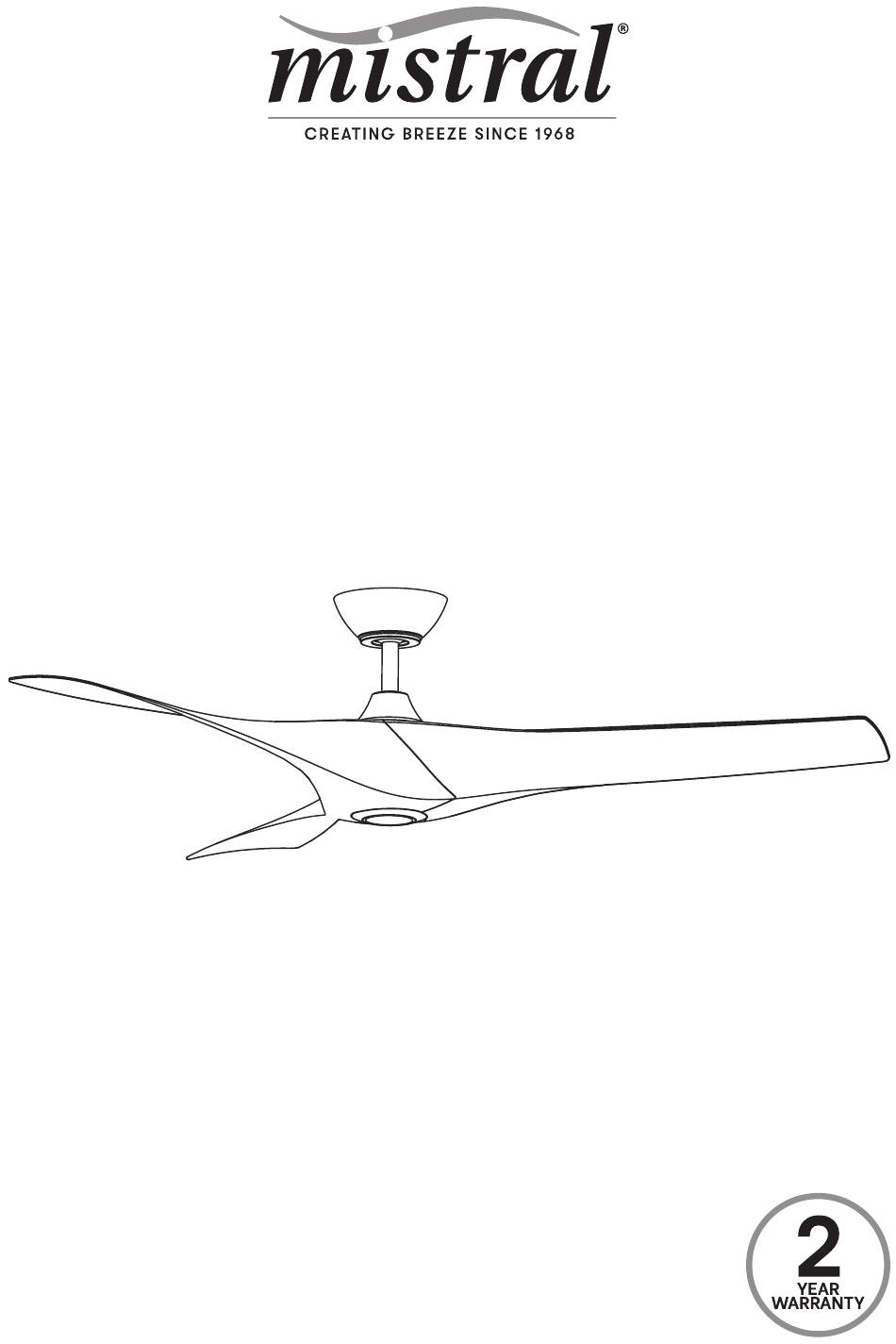

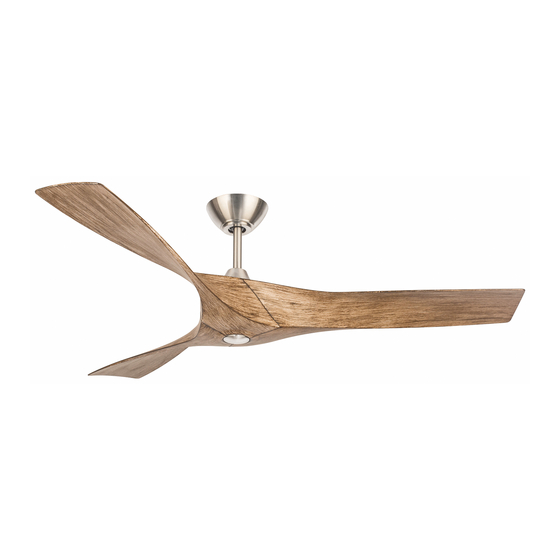

- Page 1 132cm Ceiling Fan with Remote Instruction Manual Model: MBF832...
-
Page 2: Important Safeguards
Important Safeguards • The structure to which the fan is to be mounted must be capable of supporting a weight of 20 kg. At the chosen mounting When using electrical appliances, in position, check to confirm if there is a ceiling order to reduce the risk of fire, electric joists to which the fan can be secured. If there shock and/or injury, these basic is no suitable supporting member, a mounting brace must be fitted between ceiling joists. safety precautions should always be followed: • The fan must be earthed for safe operation. • Do not connect the fan motor to a dimmer For Your Safety switch. This may give an unsatisfactory performance (motor hum) and cause damage Read all instructions carefully, even if you... -
Page 3: Preparing For Installation
Preparing for Installation WARNING: Consult only a licensed electrical contractor for installation. The mounting of the suspension system shall Warning: The ceiling fan must be installed be performed by the suitably qualified only by a licensed electrician. persons. Carefully unpack your fan to avoid damage to any WARNING: The structure to which the parts of the fan. - Page 4 Features of Your Ceiling Fan with Remote Control Remote receiver Mounting Bracket Remote control Canopy Canopy cover Coupling cover Remote control holder Battery for remote control Motor assembly Flywheel Flywheel cover Blade x 3 Downrod with ball joint...
- Page 5 Installing the Hanging 5. Attach the hanging bracket and secure with 5x38mm screws, washers and leveling pads Bracket onto Ceiling provided and tighten with screwdriver (Fig.2). Warning: The fan should be mounted so that the blades are at least 2.1 metres above the floor in Australia. The Ceiling fan must be installed in a location so that the blades are 30cm spacing from the tip of the blade at least to the nearest objects or walls.
- Page 6 Note: • Means of power supply isolator must be incorporated in the fix wiring, in accordance with the wiring rules. Incorrect conductor termination could cause damage to the unit. • An additional all-pole disconnection switch must be incorporated into in the fixed wiring, in accordance with local wiring rules.
- Page 7 3. Assemble this fan blade with flywheel to the motor assembly by using two previously removed upper blade fixing screws/washers (Fig.6b, 6c). Upper blade fixing screws Fig.6b Fig.5 Warning: Take care of supply wires when pull or pass through the downrod to avoid damage. Assembly of Ceiling Fan Blades Ensure to position and protect the motor assembly and blades from scratch/damage during blade installation process. 1. Remove six preassembled upper blade fixing screws/washers from the motor assembly and six preassembled flywheel fixing screws from the flywheel (Fig.6a). Fig.6c Flywheel 4. Assemble the rest of two fan blades onto motor assembly and flywheel by using the previously removed screws until completed.
- Page 8 Hanging the Ceiling Fan onto Hanging Bracket Warning: All set screws must be checked and retightened where necessary before Green/Yellow hanging. 1. Carefully lift the fan assembly and seat the hanger ball of the downrod on the hanging bracket. Ensure the groove in the ball joint is positioned to the tab on the hanging bracket to prevent fan from rotating when in Green/Yellow Gray operation. (Fig. 8,9,10) Yellow Fig. 11 Warning: All electrical connections for this ceiling fan must only be carried out by a Licensed Electrician.
-
Page 9: Installing The Remote Control
5. When the battery is less of power, please replace it with one new battery in time. Warning: Keep batteries away from children. Dispose of used batteries immediately. Battery must be recycled or disposed of properly. Do not dispose of battery in a fire, oven or near any flammable object as this may cause an explosion. - Page 10 • Winter Season: Reverse the motor and operate the ceiling fan at low speed in the clockwise direction. The airflow will be directed upwards Timer buttons assisting in the circulation of warm air, for Reverse button energy conservation in winter. Note: Power button • Turn off the ceiling fan and switch the Speed Control mains power supply off while it is not in buttons use or unattended. • Do not press the reverse button too often to avoid damage to the motor while the ceiling fan is running.
-
Page 11: Specification
Specification: • Use only a soft brush or lint free damp cloth to clean the fan to avoid scratching the finish. Power Supply: ........230-240V~ 50Hz • Never spray the appliance with liquids or submerge it in water or other liquid. Power consumption: ...........35W • DO NOT use gasoline, paint thinner or other Motor type: .......DC motor with Reversible chemicals to clean the fan. Speed:............. 1-6 settings • Motor has permanently lubricated ball bearing. Timer: ............2/4/8 hours No need to oil. Note: As a result of continual • Because of the fan’s natural movement, some connections may loosen. Check the hanging improvements, the design and bracket, set screws and blade fixing screws specifications of the product within may twice a year to make sure they are all secured. differ slightly to the unit illustrated on the If they are loose, tighten with a screwdriver. It is packaging. -
Page 12: Warranty Exclusions
Warranty Conditions for purchase in Australia & New Zealand Any claim under this warranty must be made within 2 years of the date of purchase of the product. To make a claim under the warranty in Australia, take the product (with proof of purchase) to any Bunnings store (see www.bunnings.com.au in Australia or www.bunnings.co.nz in New Zealand for store locations). GSM Retail Group bears reasonable, direct, expenses of claiming under the warranty in Australia. You may submit details and proof to a Bunnings store for consideration or contact our service agent below. This warranty is provided in addition to other rights and remedies you may have under law: our goods come with guarantees which cannot be excluded under the Australian Consumer Law (if purchased in Australia) or the Consumer Guarantees Act 1993 (if purchased in New Zealand). You are entitled to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The warranty excludes damage resulting from product misuse or product neglect. The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by GSM Retail Group ABN: 53007682475 For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ Warranty Exclusions Damage to the base or diffuser or any part through accident, misuse or negligence. Cat. No. MBF832 September 2021...
