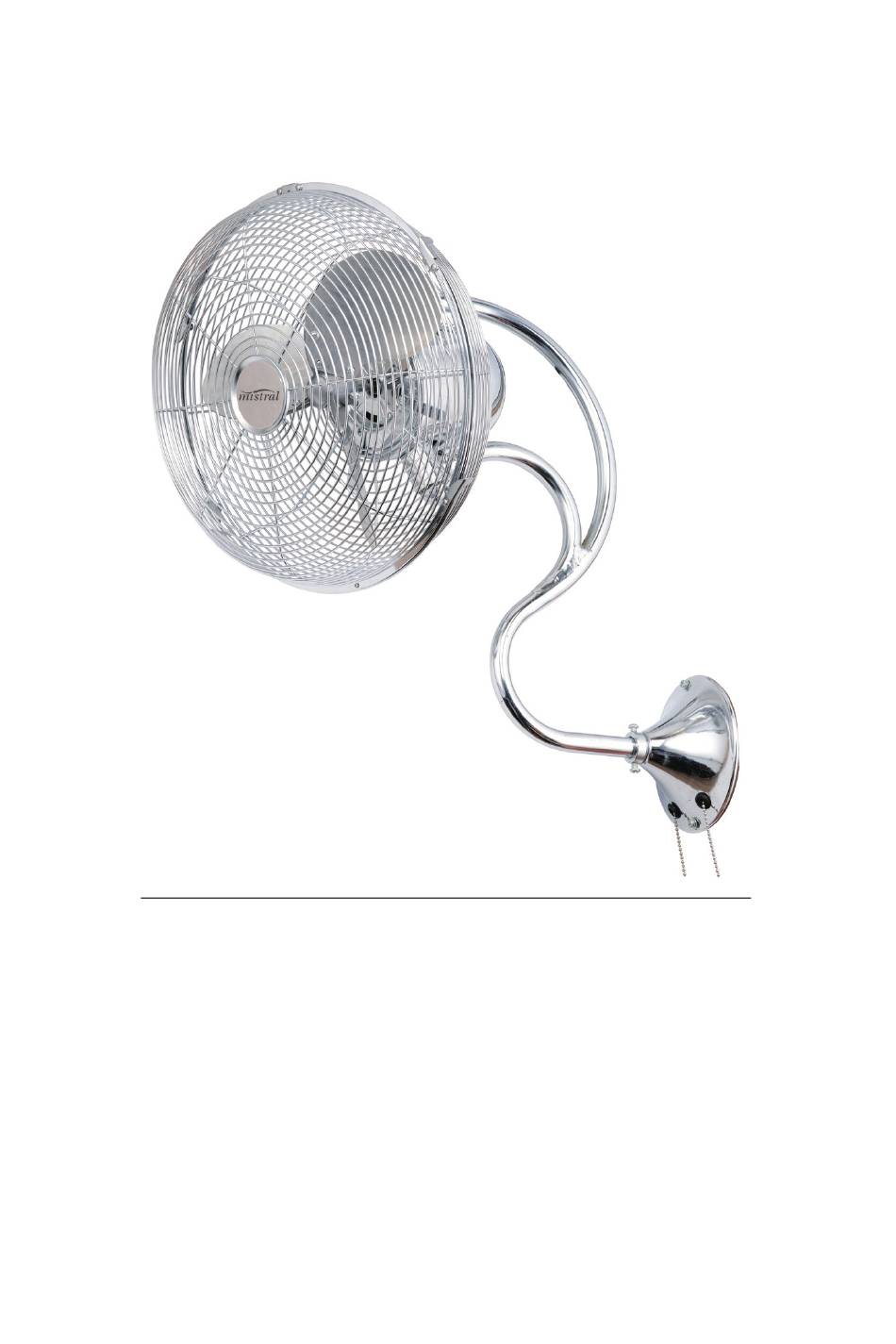

- Page 1 12” Metal Wall Fan USER MANUAL Model Number: MWF30...
-
Page 2: Product Overview
Product Overview Parts list Safety Grilles Fan Blades Motor Housing Fan Holding Arm Wall-Mounting Plate On/Off/Speed Pull Cord -- pull, gently, to switch on and select the fan speed Oscillation Pull Cord -- pull, gently, to activate fan oscillation 8mm Wall plugs and screws -- for wall-mounting... -
Page 3: Getting Started
Getting Started Unpacking • This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 4 Getting Started (Cont.) Insert the fan blade Tighten the screw to assembly into the motor control the fan blade. shaft. Wall-mounting instructions Now that your new 30cm Metal Wall Fan is assembled, it is ready for wall- mounting to an appropriately sturdy wall that can support the weight of the fan and has a power point in easy reach.
- Page 5 Instructions The 30cm Wall Fan features three speeds and can be set to oscillate. Once it is securely installed on a wall, operation is controlled by the two pull cords. Left pull cord: On/Off/Speed Pull the left power cord gently to switch on the fan. Pull it again to select a different fan speed (low, medium or high), or to switch off the fan.
-
Page 6: Other Useful Information
Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, and before removing a front or rear grille, switch off the fan and unplug it from the wall outlet. • Do not immerse the fan in water or other liquids. Do not spray it with liquids. -
Page 7: Technical Specifications
Other Useful Information (Cont.) Technical specifications Power 90W, 220-240V AC, 50Hz Fan speeds 3 (Low - Medium - High) Dimensions (mm) approx. 680 (H) x 360 (W) x 370 (W) Weight approx. 6.1kg Responsible disposal • At the end of its working life, make the appliance unserviceable by unplugging it from the power outlet and cutting the power cord.
