SCHUBERTH SC2 STANDARD Quick Start Manual

SCHUBERTH SC2 STANDARD Quick Start Manual

Hide thumbs Also See for SC2 STANDARD:

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
ENGLISH
SC2
STANDARD

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC2 STANDARD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCHUBERTH SC2 STANDARD

Summary of Contents for SCHUBERTH SC2 STANDARD

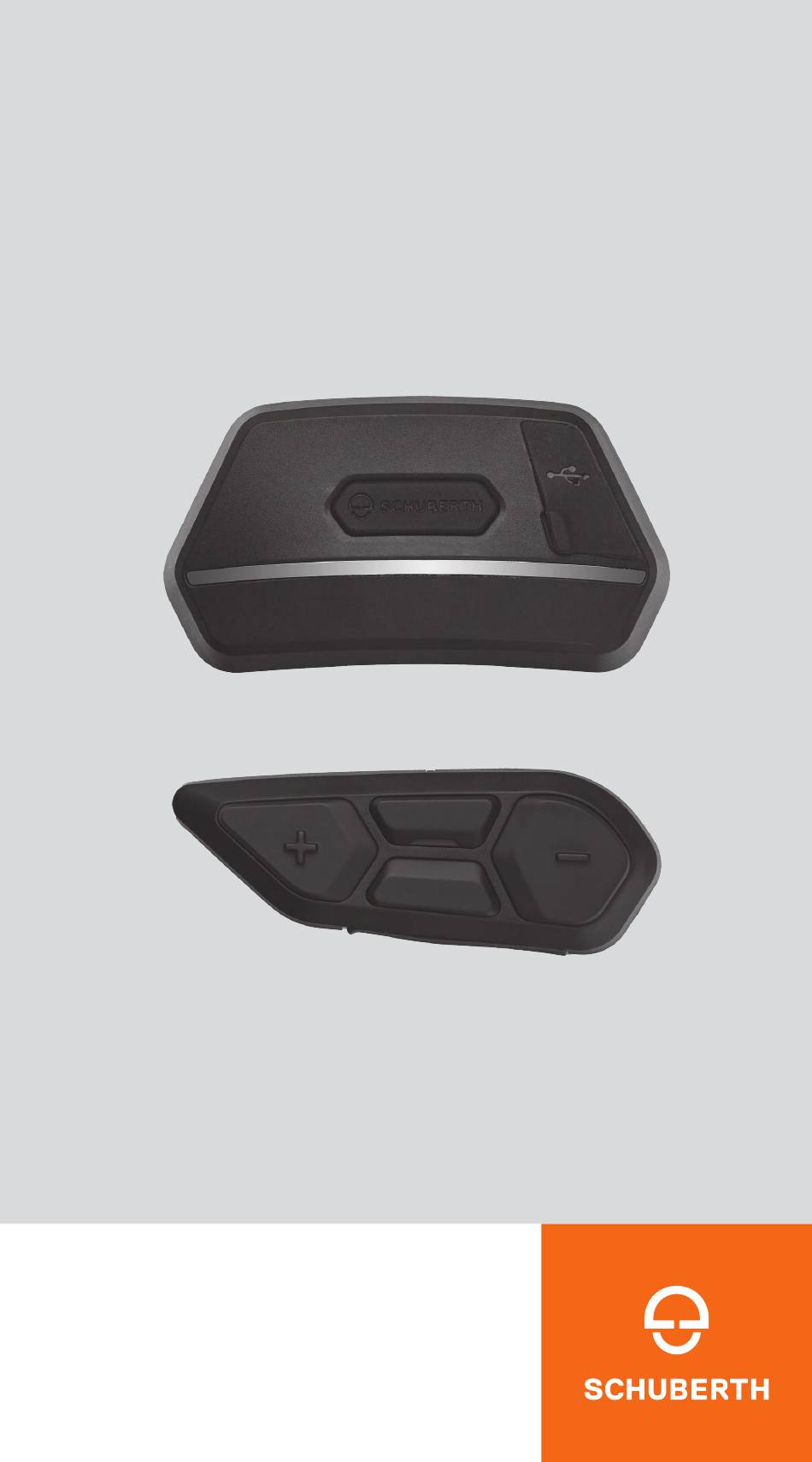

  • Page 1 QUICK START GUIDE ENGLISH STANDARD...

  • Page 2: Product Features

    SCHUBERTH SC2 APP App functions: Bluetooth Intercom, Music, Device settings, Language settings SCHUBERTH DEVICE MANAGER The SCHUBERTH Device Manager allows you to upgrade the firmware and configure its settings directly from your PC. Download the SCHUBERTH Device Manager from oem.sena.com/schuberth/.
  • Page 3 User’s Guide. A FULL VERSION OF THE USER’S GUIDE CAN BE DOWNLOADED AT oem.sena.com/schuberth/. APPROVED HELMET MODELS SC2 Standard is approved according to ECE 22.06 for the following SCHUBERTH helmets: Helmet model Approval number 0610510...
  • Page 4 ECE 22.06 SA LABEL approval mark approval number 06 10631-XXXX- YYYY-SAcc consecutive number batch number...

  • Page 5: Product Details

    PRODUCT DETAILS SC2 Standard Multi-function Button Status LED DC Power Charging & Firmware Upgrade Port SC2 Standard Remote Control (+) Button Center Button (-) Button Configuration Button Battery Slot Battery Release Hole...
  • Page 6 INSTALLING THE SC2 STANDARD REMOTE CONTROL Cover for the SC2 Standard Remote Control...
  • Page 7 INSTALLING THE SC2 STANDARD Note: The SC2 Standard is equipped with one antenna cable for connection to the helmet antenna for intercom.
  • Page 8 Click REMOVING THE SC2 STANDARD...
  • Page 9 Note: When you need to un-plug the connector, please wiggle and pull it. It will help the connector connection be released more easily.

  • Page 10: Installing The Microphone

    INSTALLING THE MICROPHONE Note: The microphone is pre-installed on the S3. Install the microphone by pressing firmly on the area marked with the orange circle.
  • Page 11 • Any USB charger can be used with the headset if the charger is approved by either the FCC, CE, or IC. • The SC2 Standard is compatible with 5 V/1 A input USB-charged devices only.

  • Page 12: Replacing The Battery

    REPLACING THE BATTERY CR 2016...

  • Page 13: Icon Legend

    Powering On & Off or “Good Bye” “Hello” To switch off the SC2 Standard, hold the Multi-function Button for 2 seconds until you hear the double beep. The remote control switches to sleep mode when you switch off the SC2 Standard.

  • Page 14: Checking The Battery Level

    Powering Off Note: The SC2 Standard and the SC2 Standard Remote Control come paired together. They will automatically connect to each other when the SC2 Standard and the SC2 Standard Remote Control are powered on. Volume Up & Down CHECKING THE BATTERY LEVEL When switching on, the LED flashes red to indicate the charge level.

  • Page 15: Phone Pairing

    PHONE PAIRING “ Configuration menu” “Phone pairing” Bluetooth SC2 Standard Device B Note: To pair your motorbike, please use phone pairing. To pair your phone with the SC2 Standard, please use second mobile phone pairing.

  • Page 16: Mobile Phone

    MOBILE PHONE Answer a Call End & Reject a Call Call a Voice Assistant (Siri or Google Assistant) “[Beep]” 1. Press the Center Button for 3 seconds until you hear “Beep” to enable “Voice Assistant.” 2. Say: For example, “Make a phone call” or “Play music.” MUSIC CONTROLS Play &...

  • Page 17: Bluetooth Intercom

    Pairing with Intercom B “ Intercom pairing” The SC2 Standard will automatically pair with a Sena headset. Flashing blue LED on SC2 Standard (main unit) twice simultaneously confirms intercoms are paired.

  • Page 18: Two-Way Intercom

    Note: Repeat the step above to pair with Intercom Friends C & D. TWO-WAY INTERCOM Last-Come, First-Served Start & End with Intercom Friend 1-3 Friend 1 Friend 2 Friend 3...
  • Page 19 You can preset FM stations with the SCHUBERTH SC2 App or the SCHUBERTH Device Manager. • If the SC2 Standard is installed on full Carbon helmets the electromagnetic interference shielding properties of the carbon fiber shell can influence the clarity of FM signals.

  • Page 20: Configuration Menu

    CONFIGURATION MENU Accessing the Headset Configuration Menu “Configuration menu” Navigating Between Menu Options “[Menu prompt]” Execute Menu Options TROUBLESHOOTING SC2 Standard Factory Reset “ Headset reset, Good bye” SC2 Standard Remote Control Factory Reset...
  • Page 21 Remote Control Pairing If you are using the SC2 Standard Remote Control other than the one included in the package, follow the procedure below to pair the SC2 Standard and the SC2 Standard Remote Control. “ Remote control pairing” 3. The SC2 Standard will “...

  • Page 22: Quick Reference

    QUICK REFERENCE SC2 Standard power on & off SC2 Standard Remote Control power on SC2 Standard Remote Control Basic power off Operations Volume up & down...
  • Page 23 Answer phone call End & reject phone call Mobile Phone Call a voice assistant Play & pause Track forward & backward Music...
  • Page 24 FM radio on & off Select preset Seek forward & backward FM Radio Scan up & stop scanning Intercom pairing Start & end intercom Intercom...
  • Page 25 Producer: Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu Seoul 06376, Republic of Korea Importer in Europe: SCHUBERTH GmbH Stegelitzer Straße 12 D-39126 Magdeburg, Germany Importer in US: SCHUBERTH North America 9920 Pacific Heights Blvd., Suite 150 San Diego, CA 92121 1.0.3_EN_February2025...
  • Page 26 Subject to change. No liability for mistakes and errors. WWW.SCHUBERTH.COM...
