1. INTRODUCTION
TCIDL1 – MID is a three-phase electricity meter with for DIN rail mounting and indoor
usage. This meter complies with the standard EN 50470 – 1/3 for accuracy class B
active energy. Its size is 76 mm for din rail.
It is intended for Mechanical environment M1 and Electromagnetic environment E2 in
accordance with the 2014/32/EU directive.
2. DISPLAY
TCIDL1 – MID meter has an LCD display of 55 x 14 mm, with backlight, for easy
reading in dark places.
The measured energy is displayed in six integers and two decimal digits format.

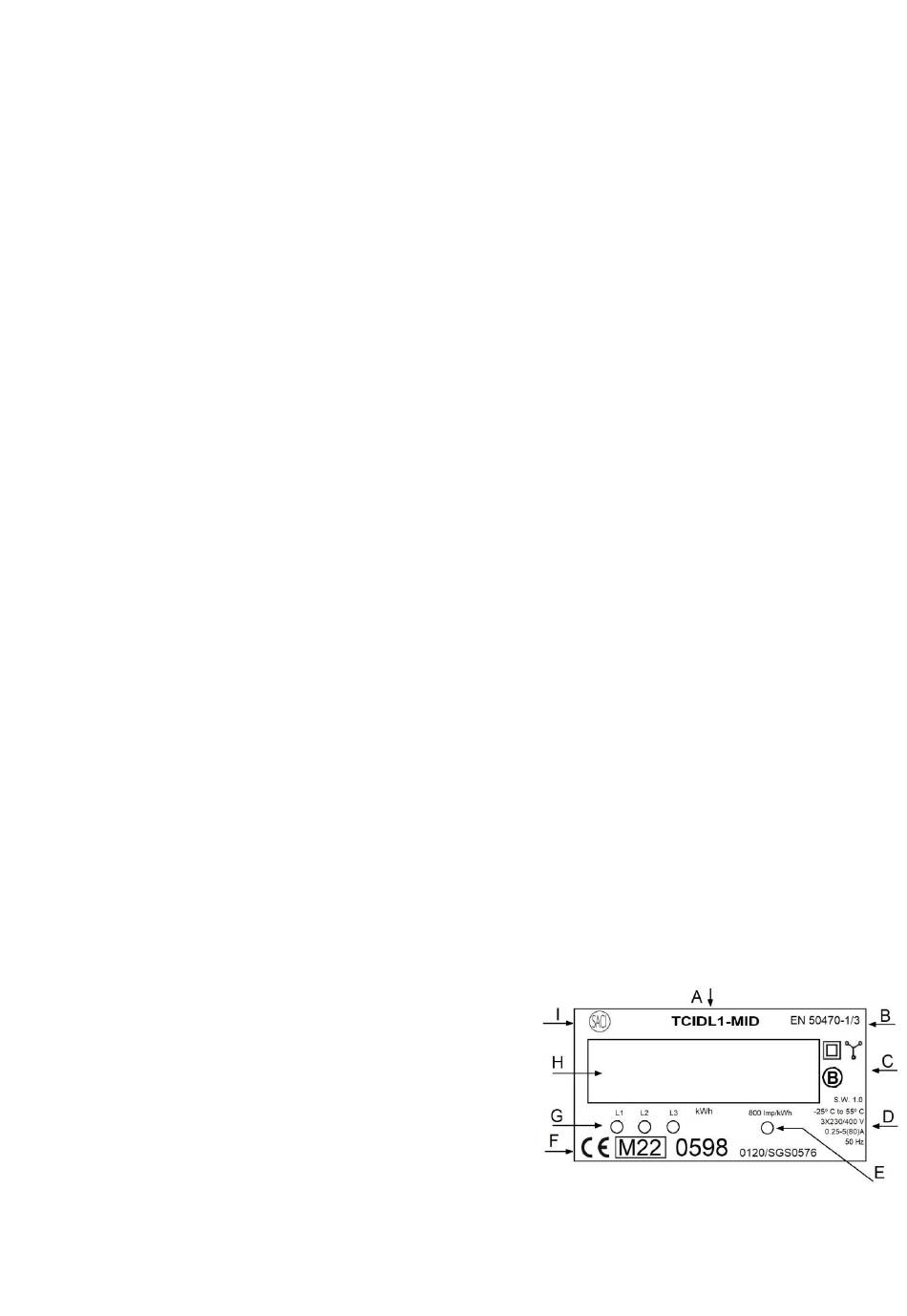

3. FRONT PANEL DESCRIPTION
A Model.
B Reference standards.
C Double insulation, three-phase and class symbols.
D Reference values and firmware version.
E Led for active energy verification.
F CE and metrological marking.
G Current detectors per phase.
H LCD display.
I SACI logo.
INS-TCIDL1– MID V.01 EN
2/4
28.07.22
