Saci DP35CP Instruction Manual

PROGRAMMABLE
DIGITAL INDICATOR
DP35CP

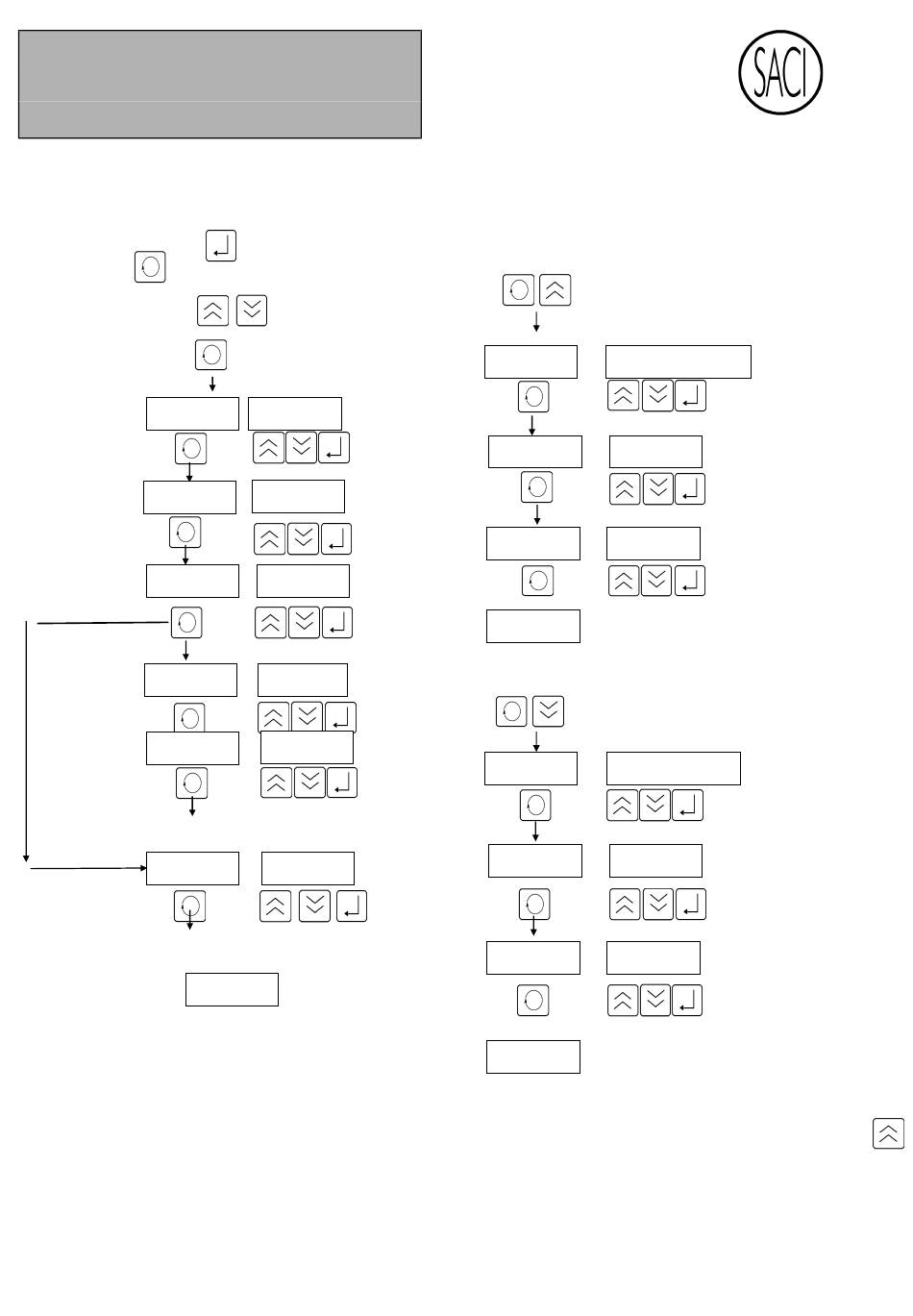

SETTING :
The parameters of DP35CP are setted using the
four keys in the front of the meter.
Enter key to validate
Cyclical key to pass to next parameter.
Up and down keys.
dEc
Decimal point
position.
SPn
Span value
OFF
Low value
Resting position
of the alarm
ALr
Close "C"
Opend "O"
SEC
Alarm delay
Seconds, two
decimals
0 - 4
Input low value
0.00mA o 4.00 mA.
Only for 20 mA
1.000
Measuring mode
During parameters setting the display is blinking.
Once in programming mode for any parameter, using
up and down keys set the desired value. Then press
enter key to validate.
Any value can be setted for the init and the end of the
range, going up or down, positive or negative.
1.999
1999
1999
NC o NO
0.00
0.00 o
INSTRUCTIONS
MANUAL
ALARM SETTING
PROGRAMACIÓN DE LA ALARMA:
DP35CP optionally has an alarm. The procedure
for programming the alarm is:
MAXIMUM VALUE ALARM
Enable
HI.A HA.E o HA.d
HA.S 1999
HA.r 1950
1.000
Measurement mode
MINIMUN VALUE ALARM
Enable
Lo.A
LA.E o
LA.S 1.000
LA.r 1.050
1.000
Measurement mode
The alarm can be set by upload, download or
both. Once an alarm state occurs, by pressing
the display will indicate which of them is HI.A
or Lo.A.
Disable
Activation
value
Deactivation
value
Disable
LA.d
Activation
value
Deactivation
value
