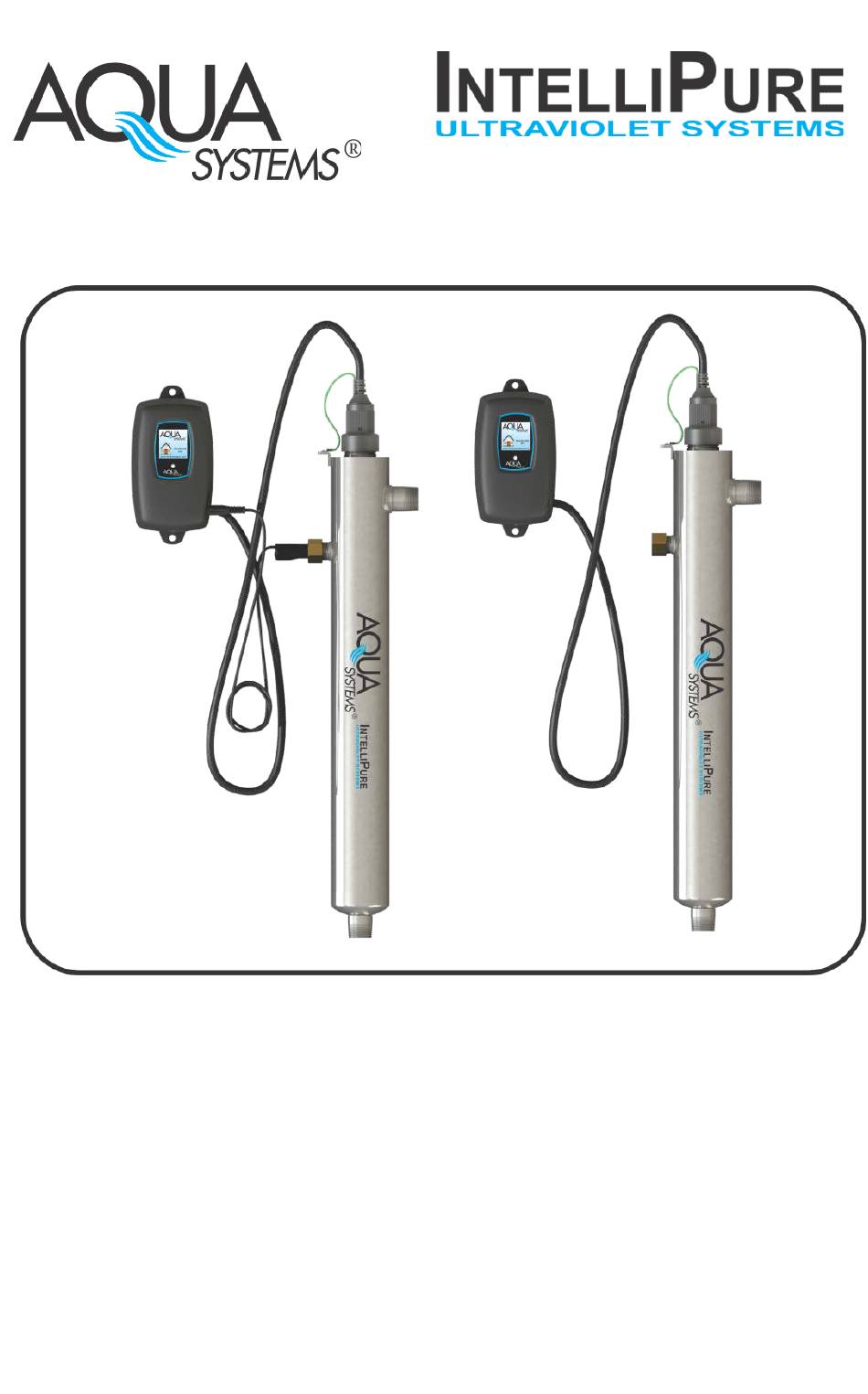

- Page 1 OWNERS MANUAL Operation & Installation Instructions IP5-03, IP5-06, IP5-10, IP5-15, IP5-20, IP6-06, IP6-10, IP6-15, IP6-20 www.ilovemywater.com...
- Page 2 Congratulations on purchasing this ultraviolet disinfection system. By purchasing a AQUA SYSTEMS UV Disinfection system you are receiving not only a high quality product but also peace of mind. Protecting your water supply with a UV system gives you reassurance that your family will have access to safe drinking water throughout your entire home with no chance of microbiological contamination.
-
Page 3: Table Of Contents
Failure Modes ........... 18 IntelliPure & IntelliPure QR Codes ............... 19 IntelliPure &IntelliPure Expansion Modules ..........20 Warranty Registration ..................21 AQUA SYSTEMS IntelliPure Specifications ............22 AQUA SYSTEMS IntelliPure Specifications ............23 Limited Warranty Statement: ................24 P a g e... -
Page 4: Safety Considerations
Safety Considerations Although your UV system has been manufactured to the highest safety standards, extreme care must be followed when operating and/or maintaining your system. Whenever you are servicing this equipment, always disconnect the power cord from the electrical outlet. As the energy given off by the UV lamp can be harmful to your eyes and skin, NEVER look directly at an illuminated UV lamp without adequate eye protection and always protect your skin from direct exposure to the UV light. -
Page 5: Water Quality Parameters
You can have your water tested at a private analytical laboratory or by your local dealer. It is always recommended to install pre-filtration of at least 5 microns prior to a AQUA SYSTEMS UV disinfection system. P a g e... -
Page 6: Assembly
System Sizing All AQUA SYSTEMS UV systems are rated for a specific flow rate under specific water quality parameters. The equipment has been designed to ensure that the appropriate dose will be delivered provided all parameters are followed. PLEASE NOTE that the flow rate for each system can be higher or lower than what the system is rated for however this will change the dose level that the system will deliver. -
Page 7: Location
If the water supply flow rate is unknown, it is recommended that you use a flow restrictor so that the rated flow of your particular AQUA SYSTEMS system is not exceeded and the UV dose is not compromised. The flow restrictor should be installed on the outlet port of the reactor. - Page 8 Although there are many methods of installation, this manual will provide a recommended procedure using copper plumbing and standard soldering methods. AQUA SYSTEMS recommends the use of unions, a by-pass assembly and shut-off valves as this will allow you to...
- Page 9 Step 7: Before you cut into the cold water line, measure and cut all piping as per the recommended layout. Once all the components are ready, start by installing the female adapters onto the ports of the reactor. To ensure a proper seal, the use of Teflon™ tape is recommended on all threaded connections.
- Page 10 Figure 5. UV Sensor Installation Figure 6. IEP Connection Step 12: The reactor is now ready for water flow. When all plumbing connections have been completed you should check for any possible leaks. Slowly turn on the water supply and check for leaks.
-
Page 11: System Disinfection
Figure 8. LUMI-Loc™ Connector Step 16: Affix the captive ground screw to the ground lug on the UV reactor to ensure proper grounding continuity. Figure 9. Ground Screw Connection Step 17: Your system is now ready to be plugged into the appropriate GFCI protected outlet. Plug the unit in and refer to the “System Disinfection”... -
Page 12: Cleaning The Quartz Sleeve
(by smell). Your home has now been completely disinfected with your AQUA SYSTEMS IntelliPure UV system ready to inactivate any microorganisms that enter the home. -
Page 13: Operation
Replace sensor as per instructions on page 9 of the manual. Operation The AQUA SYSTEMS IntelliPure system comes with a feature laden controller that incorporates both the lamp driver (ballast) and control features in one water-tight case. CAUTION: Prior to performing any maintenance on your UV system, you must always disconnect the power. -
Page 14: Intellipure 5.0 & Intellipure
IntelliPure & IntelliPure Power-up Sequence Upon start up, the 5.0 & 6.0 controller will run through a diagnostic start-up and the sequence will be displayed as follows on the colour LCD: Next, the controller checks for the installation of any optional modules that may be installed on the system. -
Page 15: Intellipure 5.0 Operational Screens
(without the UV monitor), the default screen shows the AQUA SYSTEMS Home Screen. At any point during operation the user is able to scroll through the AQUA SYSTEMS Home Screen, Lamp life remaining and QR Code/Contact Info screens by simply pressing the button located on the front of the controller. -
Page 16: Intellipure 6.0 Operational Screens
IntelliPure Operational Screens On systems that have the UV module installed (and on all IntelliPure systems), the default screen shows the % UV Intensity. At any point during operation the user is able to scroll through the % UV Intensity, Lamp life remaining and QR Code screens by simply pressing the button located on the front of the controller. -
Page 17: Intellipure 5.0 & Intellipure
Once the UV output drops below 56%, the numbers and warning sign switch to red and a 15 second intermittent audible chirp is given off by the ballast. When the output drops below 51%, the display switches to a solid red and a constant audible signal is provided. The screens alternate between this solid red screen and another screen indicating “water may be unsafe for consumption”. -
Page 18: Intellipure 5.0 & Intellipure
IntelliPure & IntelliPure Lamp Countdown Reset Sequence After changing the lamp on the IntelliPure & IntelliPure systems, the controller must be reset in order for the system to begin its countdown function on the newly installed lamp. To perform this reset, you must firmly depress the button on the front of the controller and then manually plug the power cord back into the wall outlet initiating power to the unit. -
Page 19: Intellipure & Intellipure Qr Codes
A QR code (abbreviated from Quick Response code) is a type of matrix barcode (or two-dimensional code) first designed for the automotive industry. AQUA SYSTEMS uses the QR code to store a link to a specific page on our website. Users with a camera phone equipped with the correct reader application can scan the image of the QR code and over a wireless network connect to a AQUA SYSTEMS web page in the phone's browser. -
Page 20: Intellipure 5.0 &Intellipure
IntelliPure & IntelliPure Expansion Modules As shown earlier in this manual, the IntelliPure and IntelliPure controller incorporate an “Infinite Expandability Port” (IEP) on the controller. It is through this port and via a custom communication protocol that the UV sensor and all expanison modules are connected. Each module (including the sensor) comes with both a male and female connection. -
Page 21: Warranty Registration
4-20 mA MODULE: Allows for a 4-20mA signal transfer of the UV output to a remote device such as a data logger or computer. Simply plug the supplied cable into any female IEP connections. Two screw terminals are supplied to connect the wire that leads to the receiving end of the signal. -
Page 22: Aqua Systems Intellipure Specifications
AQUA SYSTEMS IntelliPure Specifications IntelliPure , Residential UV systems, UV monitored MODEL IP6-061 IP6-101 (see "Plug Type" for all 230 volt IP6-06-12V IP6-201 IP6-10-24V "2" variants) IP6-06-24V 11.0 GPM 20 GPM 39.2 GPM Flow Rate (@ 16 mJ/cm 42 lpm... -
Page 23: Aqua Systems Intellipure 5.0 Specifications
AQUA SYSTEMS IntelliPure Specifications IntelliPure , Residential UV systems, UV monitored MODEL IP5-031 IP5-061 IP5-101 (see "Plug Type" for all 230 volt IP5-03-12V IP5-06-12V IP5-201 IP5-10-24V "2" variants) IP5-03-24V IP5-06-24V 6 GPM 11.0 GPM 20 GPM 39.2 GPM Flow Rate (@ 16 mJ/cm... -
Page 24: Limited Warranty Statement
(proper documentation required for verification). AQUA SYSTEMS warrants that it will repair, replace or refund, at AQUA SYSTEMS’ sole option, any ultraviolet system or component that is defective in materials or workmanship for the period as outlined above, subject to the “Limitations of Warranty”... - Page 25 Unless otherwise provided, the Dealer or Distributor will contact AQUA SYSTEMS for instructions on returning the product. Any defective product to be returned to AQUA SYSTEMS must be sent freight prepaid; documentation supporting the warranty claim and/or a Return Material Authorization must be included if so instructed.
- Page 26 Aqua Systems 7785 E US HWY 36 Avon, IN 46123 Phone: (800) 447-5582 Web: www.ilovemywater.com PN#910035 26 | P a g e...
