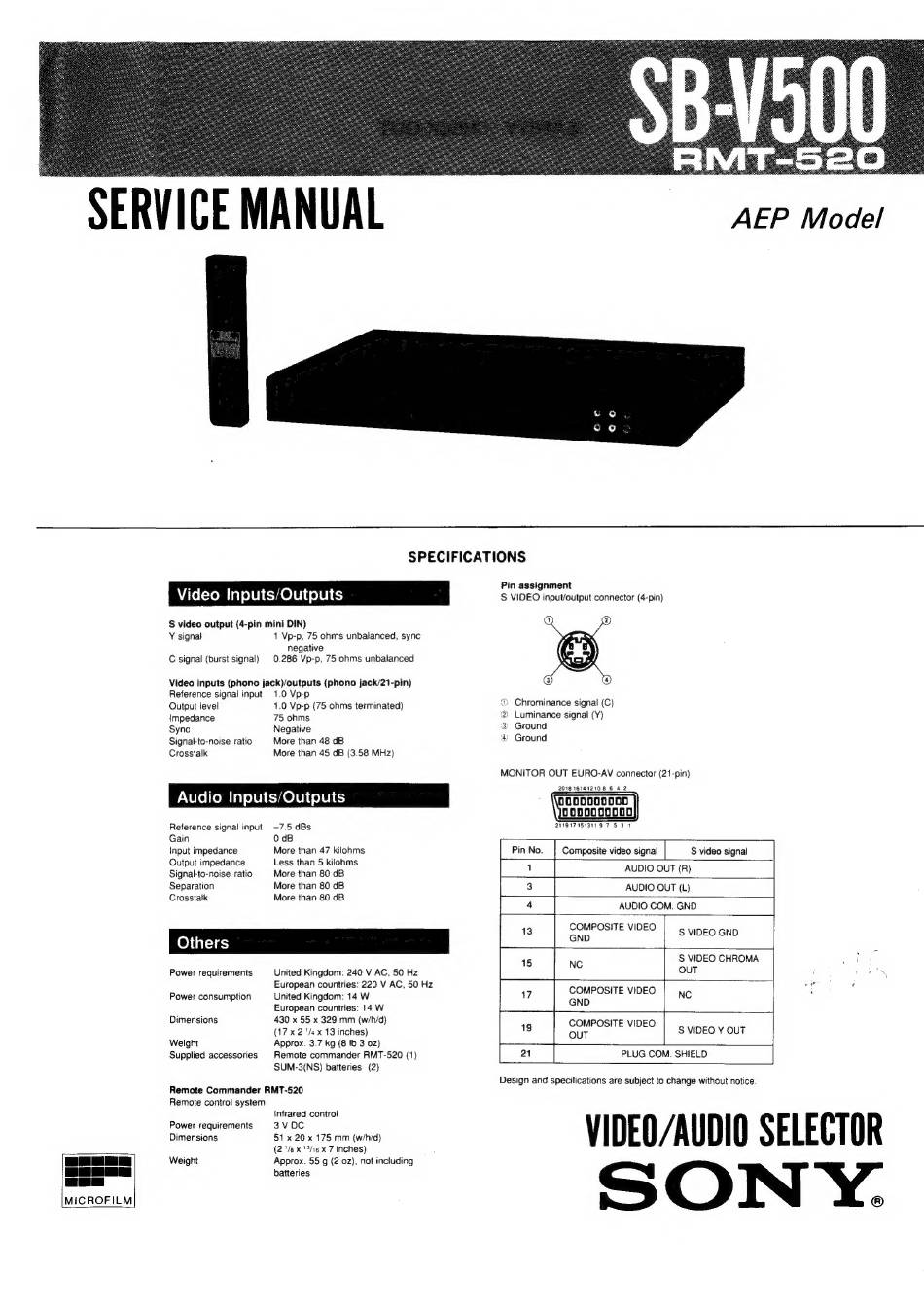

Sony SB-V500 Service Manual

SERVICE MANUAL
MICROFILM
AEP Model
SPECIFICATIONS
Video Inputs/Outputs
S video output (4-pin mini DIN)
Y signal
C signal (burst signal)
1 Vp-p, 75 ohms unbalanced, sync
negative
0.286 Vp-p, 75 ohms unbalanced
Video inputs (phono jack)/outputs (phono jack/21-pin)
Reference signal input
Output level
Impedance
Sync
Signal-to-noise ratio
Crosstalk
1.0 Vp-p
1.0 Vp-p (75 ohms terminated)
75 ohms
Negative
More than 48 dB
More than 45 dB (3.58 MHz)
Audio Inputs/Outputs
Reference signal input
Gain
Input impedance
Output impedance
Signal-to-noise ratio
Separation
Crosstalk
-7.5 dBs
0dB
More than 47 kilohms
Less than 5 kilohms
More than 80 dB
More than 80 dB
More than 80 dB
Power requirements
Power consumption
Dimensions
Weight
Supplied accessories
United Kingdom: 240 V AC, 50 Hz
European countries: 220 V AC, 50 Hz
United Kingdom: 14 W
European countries: 14 W
430 x 55 x 329 mm (w/h/d)}
(17 x 2 '/s x 13 inches)
Approx. 3.7 kg (8 Ib 3 02)
Remote commander RMT-520 (1}
SUM-3(NS) batteries (2)
Remote Commander RMT-520
Remote control system
Power requirements
Dimensions
Weight
Infrared control
3V DC
51 x 20 x 175 mm (w/h/d)
(2 "/s x "5/16 x 7 inches)
Approx. 55 g (2 02), not including
batteries
Pin assignment
S VIDEO input/output connector (4-pin)
Chrominance signal (C)
Luminance signal (Y)
Ground
Ground
iS)
ew
MONITOR OUT EURO-AV connector (21-pin)
2018 161412108 6 4 2
oooooooood
ooooo00000
2119171513119 7534
Pin No. Composite video signal | S video signal
1 AUDIO OUT (R)
3 AUDIO OUT (L)
4 AUDIO COM. GND
-
COMPOSITE VIDEO
13
GND S VIDEO GND
+
S$ VIDEO CHROMA
1
: OUT
17 COMPOSITE VIDEO | co
GND
COMPOSITE VIDEO
19
OUT S VIDEO Y OUT
21 PLUG COM. SHIELD
Design and specifications are subject to change without notice.

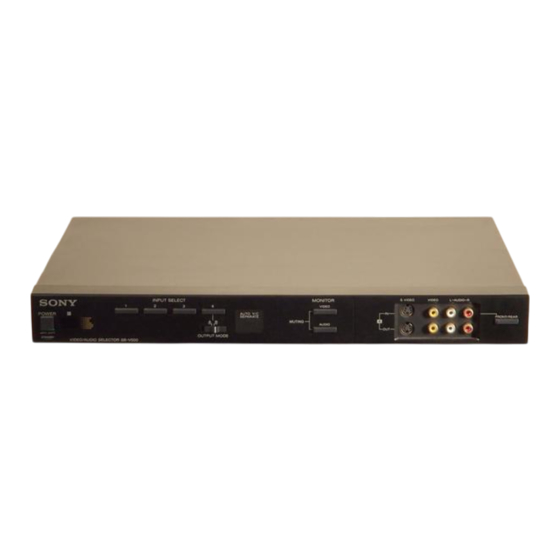

VIDEO/AUDIO SELECTOR
ON Y.
