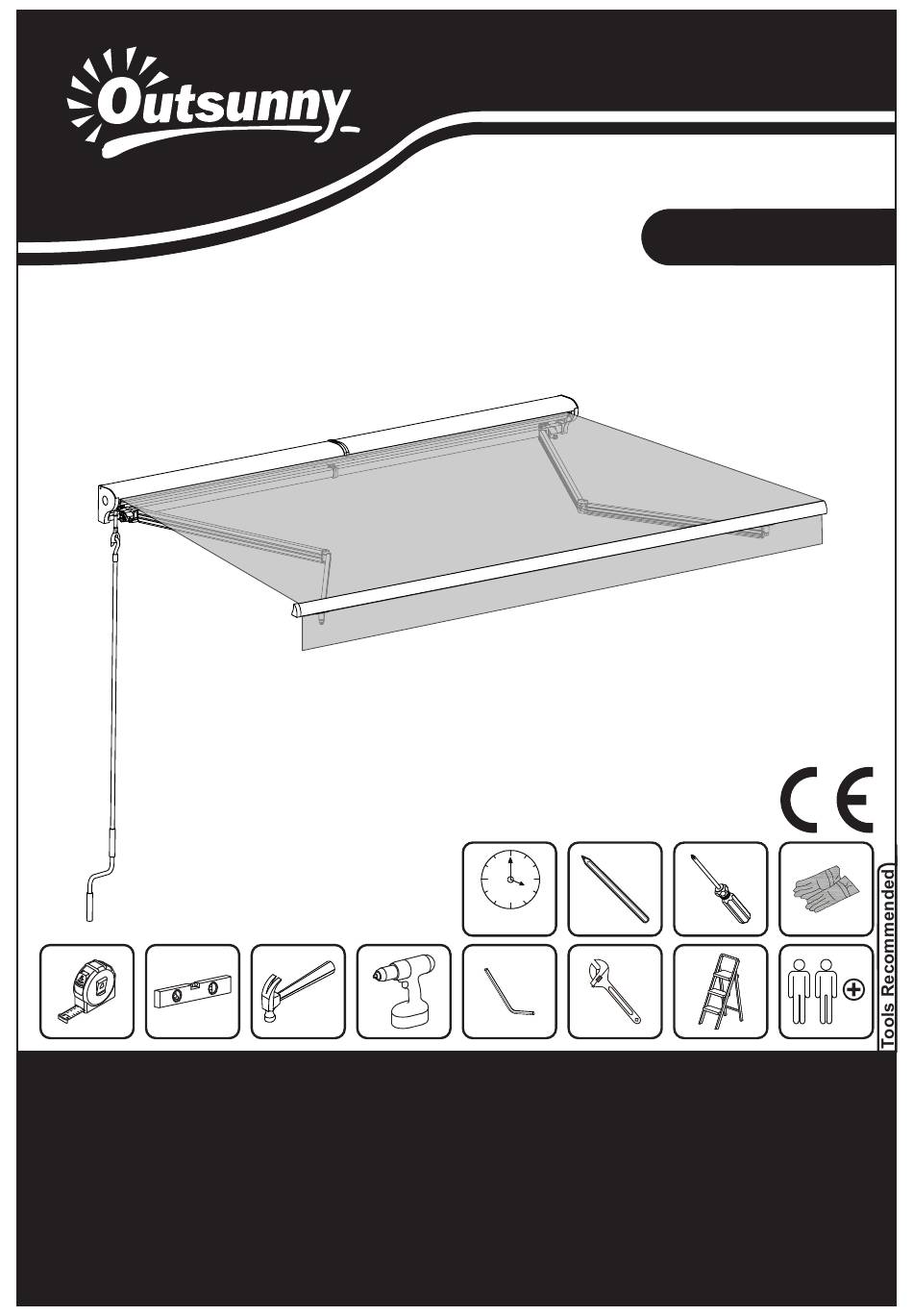

IN231100616V01_UK_840-256V73
EN_IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
FR_IMPORTANT:A LIRE ATTENTIVEMENT ET À CONSERVER POUR CONSULTATION
ULTÉRIEURE.
ES_IMPORTANTE, LEA Y GUARDE PARA FUTURAS REFERENCIAS.
PT_IMPORTANTE, RETER PARA REFERÊNCIA FUTURA: LEIA ATENTAMENTE.
DE_WICHTIG! SORGFÄLTIG LESEN UND FÜR SPÄTER NACHSCHLAGEN AUFBEWAHREN.
IT _ IMPORTANTE! CONSERVARE IL PRESENTE MANUALE PER FUTURO RIFERIMENTO E
LEGGERLO ATTENTAMENTE.
IN231100616V01_UK
360
MIN
US_CA
US_CA
Advertisement
Related Manuals for Outsunny 840-256V73
Summary of Contents for Outsunny 840-256V73
- Page 1 IN231100616V01_UK IN231100616V01_UK_840-256V73 EN_IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. FR_IMPORTANT:A LIRE ATTENTIVEMENT ET À CONSERVER POUR CONSULTATION ULTÉRIEURE. ES_IMPORTANTE, LEA Y GUARDE PARA FUTURAS REFERENCIAS. PT_IMPORTANTE, RETER PARA REFERÊNCIA FUTURA: LEIA ATENTAMENTE. DE_WICHTIG! SORGFÄLTIG LESEN UND FÜR SPÄTER NACHSCHLAGEN AUFBEWAHREN. IT _ IMPORTANTE! CONSERVARE IL PRESENTE MANUALE PER FUTURO RIFERIMENTO E LEGGERLO ATTENTAMENTE.
- Page 2 Maintenance recommendations ●Metal: Wash with mild soapy water and rinse with clean water. Dry with a lint free cloth. Avoid using detergents and acidic products. ●Fabric: Dry cleaning. ●Plastic: Dust regularly with a clean, soft, and dry cloth. Avoid using any corrosive products. Required tools: screwdriver, hammer, drill bit, wrench (roller, inner hexagon) Important reminder: Before starting to assemble furniture, make sure to receive all the parts.
- Page 3 safety wrap EN_AWNING ARMS WILL CAUSE INJURY!ONLY CUT AWNING ARMS TAPES AFTER AWNING FULLY ASSEMBLED!!! FR_AVERTISSEMENT LES BRAS DE L'AUVENT PEUVENT PROVOQUER DES BLESSURES NE COUPER LES RUBANS DES BRAS DE L'AUVENT QU'UNE FOIS L'AUVENT COMPLETEMENT MONTÉ ES_¡ATENCIÓN! ¡LOS BRAZOS DEL TOLDO PUEDEN CAUSAR LESIONES!CORTE LAS CINTAS DE LOS BRAZOS DEL TOLDO SÓLO...
- Page 5 ① 4*16 ② ③ ④ ⑤ ⑥ ⑦ 8*55 ⑧ ⑨ ⑩ 10*40 4*16...
- Page 6 NOTE...
- Page 7 Connect arm support and arms. Connect arms and square bar.
- Page 8 Fix the arm. The angle of the awning can be adjusted using this screw. Connect the left arm and square bar connector. Connect the power cord inside the square bar,...
- Page 9 Connect the square bar. Connect the rollers.
- Page 10 Connect the front bars, Insert the fabric into the roller and front bar as shown in the figure. Profile View...
- Page 11 Roll up the fabric Installate the fabric fixer. Profile View Profile View...
- Page 12 Connect the motor power cord and insert it into the square bar. (The excess power cord have been hidden to avoid confusion). Installate the left bracket. Tighten the screw to fix the bracket and front bar,...
- Page 13 Installate the right bracket. Fix the motor with the motor pin Representation without AA section for better understanding. Insert the motor pin Bend the motor pin...
- Page 14 Install the rainproof. Insert the connector into the front bar.
- Page 15 Fix the connecter. Use hand tools to tighten firmly.Don't be too tight. Install the front bar fabric. Install the End Cap of Front Bar.
- Page 16 1.Description of the remote control. HAUL DOWN Learn button LIGHTING 2. Technical data ●Power supply: excluding 3V CR2032 type ●Working temperature: -10 C to+60 C (LCD transmitter) ●Working temperature: -20 C to+60 C (non LCD transmitter) ●Current:≤12mA ●Code: Scroll Code ●Frequency;: 433.92MHz 3.
- Page 17 AC Power 1) When ignited, the engine will vibrate. 3) The remote control can control the awning. Note: a) The programming power supply is only applicable to tubular motors, which have not received any transmitter codes. (b) If the engine has already received the transmitter code, it cannot receive another transmitter code.
- Page 19 Preparations Make sure that no children and pets are present during mounting. They could get hurt by lain out parts or tools. Carefully remove the awning from the box and remove the styrofoam protectors from the awning.Remove the plastic bags and plastic guards from the awning and carefully place the awning aside to avoid having it damaged by scratches or otherwise damaged or soiled during assembly.
- Page 20 Step 2: Mark Drilling Holes After choosing mounting position you can mark where you need to drill holes for the brackets. Draw a horizontal line at the height of the required place. Use a long taper measure, a level and chalk. We already marked where and with what width brackets need to be mounted.
- Page 21 287cm Note: The number of attachments may vary depending on the length of the product. To avoid errors, the dimensions specified in the text may be distorted, and the installation position of the boom should be Horizontal installation on the same wall. maintained at the specified middle position.
- Page 22 Please contact an authorized service center for repair and if you have any further questions. Normally it is not necessary to lubricate moving parts of the awning. However, if it will be come necessary on day, e. g. because of abnormal noise or because extracting is difficult, do only use lubricants that can be used for plastic materials, do not use lubricants that are based on petroleum.
