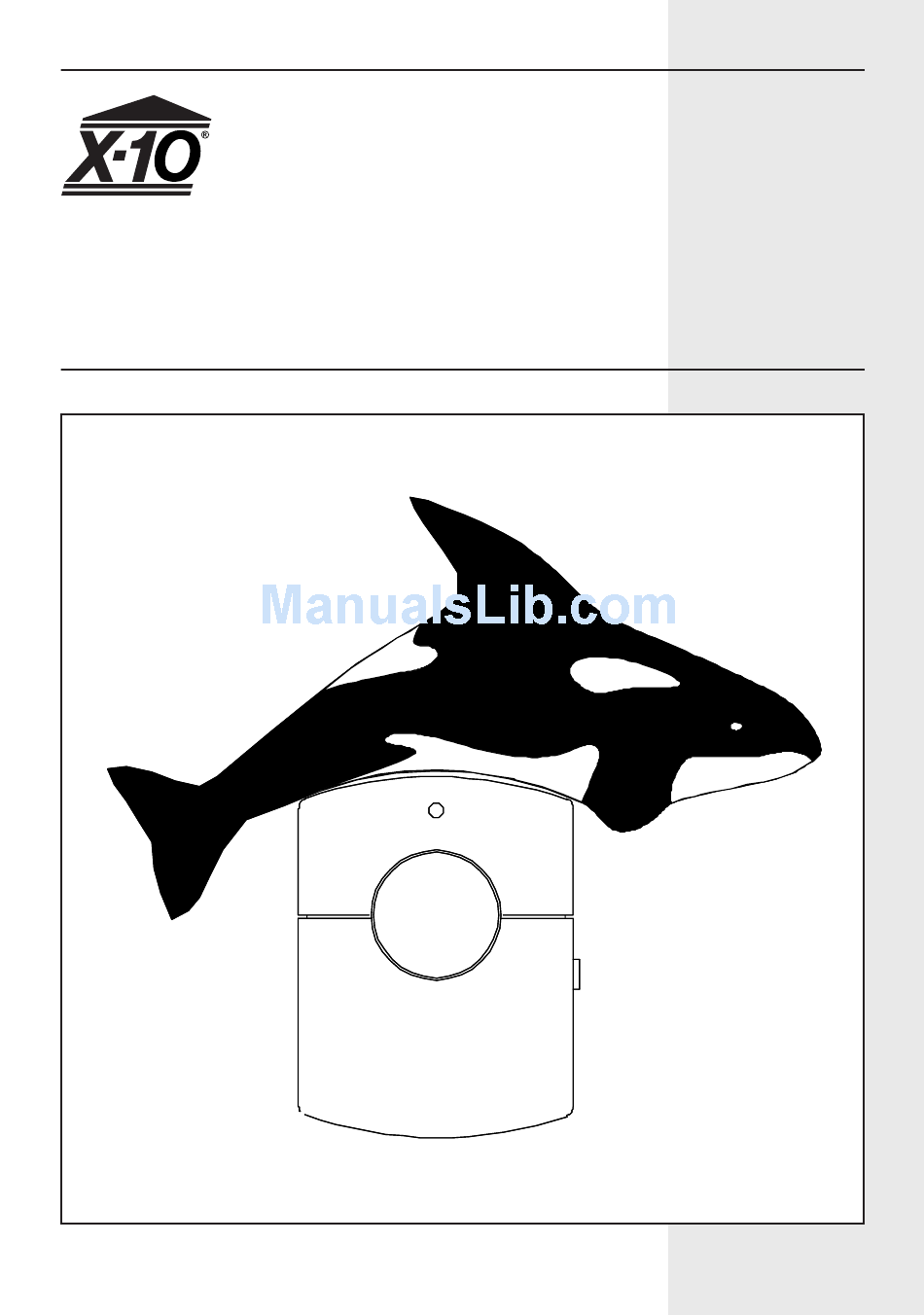

- Page 1 ORCA ™ Panic System Owner's Manual ORCA Panic System Model ORCA 2000...
- Page 2 READ THIS FIRST This equipment generates and uses radio frequency energy, and if not installed and used properly, that is, in strict accordance with the manu facturers instr uctions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for remote control security devices in accordance with the specifications in Sub-Parts B and C of Part 15 of FCC Rules , which are...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ... 4 SETTING UP THE CONSOLE ... 5 SETTING UP KEY CHAIN REMOTE AND PANIC BUTTONS ...7 SETTING UP REMOTE MODULE AND POWERHORN ...8 SETTING UP FOR THE MONITORING STATION ... 9 USING THE SYSTEM ... 12 TURNING LIGHTS ON AND OFF REMOTEL Y ... 13 BATTERY BACK UP ... -
Page 4: Introduction
INTRODUCTION Your X-10 ORCA Panic System makes you feel secure. The system includes a Console with a digital communicator that connects to ORCA Monitoring Services when you press a Panic Button. The system includes 6 Panic Buttons, a Lamp Module, a Powerhorn, and a Keychain Remote Control. -
Page 5: Setting Up The Console
SETTING UP THE CONSOLE Choosing a location for the Console Living Room Before you select a location for the Console, think of the areas in your home where you would be most likely to use the Panic Buttons. Select a location that is central to those areas and that is within the Console’s range (up to 100 feet). - Page 6 Setting up the Console 1. Slide off the battery compartment cover and clip a 9V battery onto the battery contacts. 2. Slide the battery into the battery compartment and replace the cover. 3. Plug one end of the supplied telephone cord into the Console and the other end of the telephone cord into a modular telephone jack.
-
Page 7: Setting Up Key Chain Remote And Panic Buttons
SETTING UP KEYCHAIN REMOTE & PANIC BUTTON The Keychain Remote and Panic Buttons are shipped with the batteries fitted and the units pre-installed into the Console, so everything should work straight out of the box. If you need to re-install anything (after changing batteries for example) follow the steps below. -
Page 8: Setting Up Remote Module And Powerhorn
Setting up Lamp Modules When the alarm trips, lamps connected to Lamp Modules set to A-1 (or other codes on request from the monitoring station - see pages 10 and 11) flash on and off for the duration of the alarm. After 4 minutes (or when you stop the alarm) the lamps stop flashing and remain on. -
Page 9: Setting Up For The Monitoring Station
SETTING UP FOR MONITORING BY ORCA Introduction to digital monitoring The ORCA Panic System incorporates the same digital communicator technology found in expensive high-end security systems. Features supported include remote configuration and alarm type confirmation. When the Console is tripped, a loud piercing siren sounds and lights connected to Lamp Modules flash on and off. - Page 10 Options downloaded by ORCA Monitoring Services The options that are downloaded to your Console when you register it are listed below. You can have most of the default options changed by calling ORCA Monitoring Services and following the instructions given to you. 1.
- Page 11 13. Daylight Savings Date- Date for daylight savings time. 14. Panic Dialing ON/OFF- If this option is set to ON, the Console will dial out whenever PANIC is pressed on the optional SH624 remote. If this option is set to OFF, the Console will only dial out when PANIC is pressed and the system is armed.
-
Page 12: Using The System
USING THE SYSTEM Console Indicators Zone indicators - The Console displays the status of its 16 zones (8 at a time). These zone indicators are only used if you add optional Door/Window Sensors or Motions Detectors (sold separately) and are explained in the instructions that accompany them. -
Page 13: Turning Lights On And Off Remotel Y
TURNING LIGHTS ON AND OFF Keychain Remote Press LIGHTS ON or LIGHTS OFF to turn on or off Lamp Modules set to A-1 (or other codes on request from ORCA Monitoring Services - see pages 10 and 11). Turning lights on/off from the Console Press LIGHTS ON or LIGHTS OFF on the Console to turn on or off X-10... -
Page 14: Battery Back Up
BATTERY BACK-UP The Console’s backup battery allows the system to work during a power outage. The BATTERY LOW indicator on the Console lights when you need to replace the backup battery. Installed remotes, Panic Buttons, and Central Station phone numbers are stored in Electrically Erasable Programmable Read Only Memory (EEPROM) which will not lose its data... -
Page 15: Care And Maintenance
CARE AND MAINTENANCE Your Panic System is an example of superior design and craftsmanship. The following suggestions will help you care for your system so you can enjoy it for years. • Handle your system components gently and carefully. Dropping them can cause them to work improperly. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM Lights will not turn on or off from the LIGHTS ON or LIGHTS OFF buttons on the Keychain Remote, Panic Buttons, or Console. If appliances turn off during an alarm. If the battery indicator on the Console is on. SOLUTION •... - Page 17 PROBLEM If the system Arms, Disarms, or trips by itself. If the armed indicator is flashing. If the POWERHORN does not trip when the alarm trips. The MONITOR light is flashing. If you lose your Keychain Remote. SOLUTION A neighbor may have a compatible system.
- Page 18 Special Notes Intercom Systems Intercom systems which send voice signals over existing electrical wiring may interfere with the ability to control Lamp Modules from your Panic System with the intercom in use. If the intercom system has its own separate wiring it will not cause a problem.
- Page 19 NOTES...
- Page 20 X-10 (USA) Inc. 91 Ruckman Rd. Closter, NJ 07624. Web sites: http://www.x10.com http://www.activehome.com http://www.orcaweb.com CANADA X-10 Home Controls Inc. 1200 Aerowood Drive, Unit 20 Mississauga, Ontario L4W 2S7 DR/ORCA2000-8/25/97...
