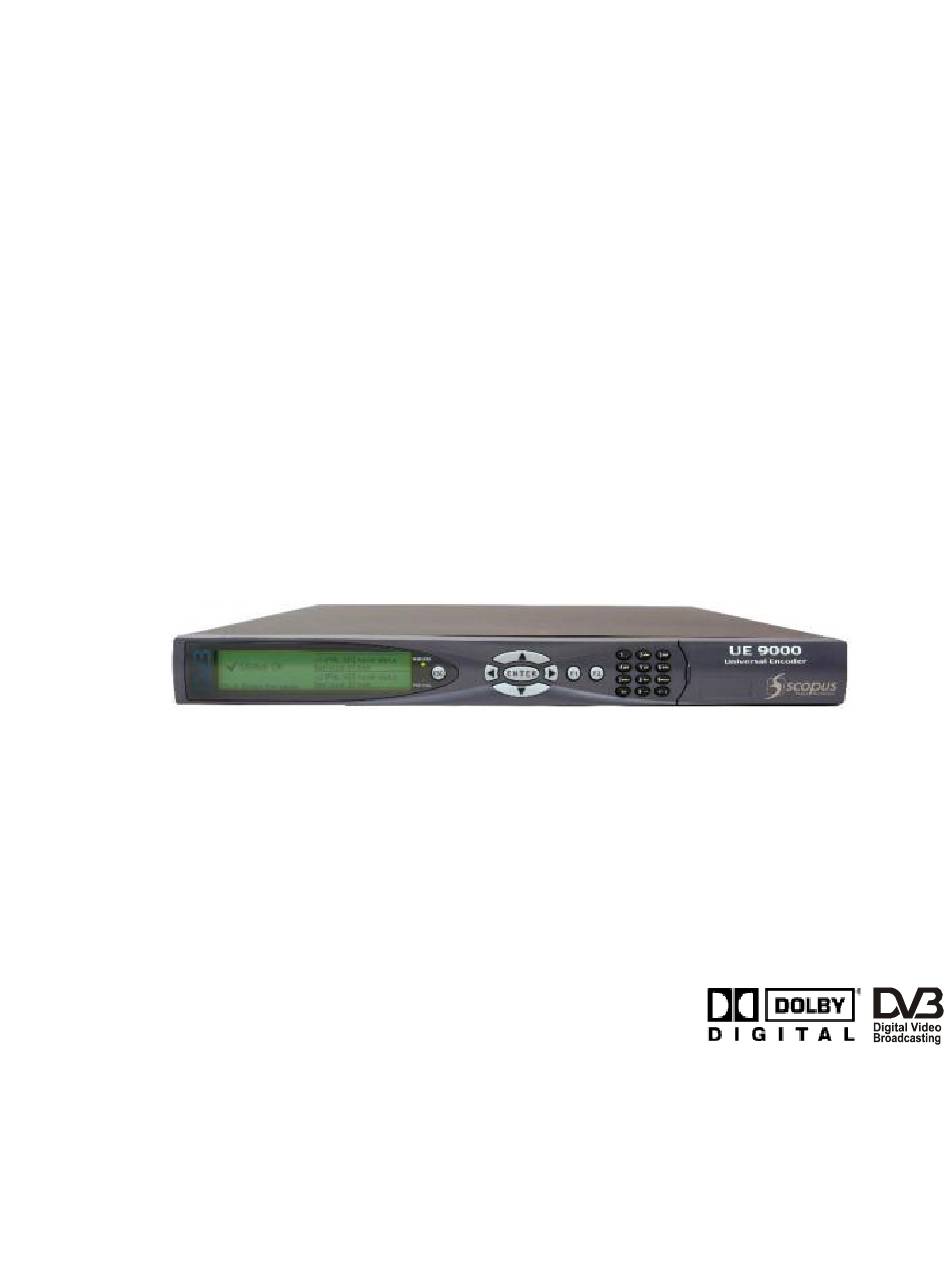

UE-9000
Universal Encoder Platform
U
M
SER
ANUAL
S
D
(P/N 100673)
COPUS
OCUMENTS
(R
. 6.0/ SW
2.3.5/ F
2008)
EV
V
EBRUARY
777

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UE-9000 and is the answer not in the manual?

Questions and answers

Related Manuals for Scopus UE-9000

Summary of Contents for Scopus UE-9000

  • Page 1 UE-9000 Universal Encoder Platform ANUAL (P/N 100673) COPUS OCUMENTS . 6.0/ SW 2.3.5/ F 2008) EBRUARY...
  • Page 3 UE-9000 Universal Encoder Platform ANUAL (P/N 100673) COPUS OCUMENTS . 6.0/ SW 2.3.5/ F 2008) EBRUARY...
  • Page 4 Specifications and features sets are for technical information and are not legally biding. UE-9000 is a registered trademark of Scopus Video Networks Ltd. in Israel, Germany, France, U.K. U.S.A. and Japan. All references to registered trademarks of other vendors are the property of their respective owners.

  • Page 5: Table Of Contents

    UE-9810 Interfaces and Features ........1-25 1.5.13. UE-9818 Interfaces and Features ........1-26 1.6. Characteristics and Capabilities ........1-27 1.6.1. Encoder Inputs ............. 1-27 1.6.2. Encoder Outputs ............1-28 1.6.3. Modulator Characteristics ..........1-29 1.6.4. Processing Capabilities ..........1-30 Scopus Documents (P/N 100673) Page i...
  • Page 6 Safety Precautions ............2-1 2.2. Inventory Check ............. 2-2 2.3. Site Preparation ............. 2-3 2.4. Preparing the 19" Rack and mounting UE-9000 units ..2-4 2.4.1. Installing the Brackets ............ 2-4 2.4.2. Installing the “L” shape slides .......... 2-4 2.4.3.
  • Page 7 Video Input ..............6-3 6.1.1. Video Format ..............6-5 6.1.2. Video Test Pattern ............6-7 6.1.3. Aspect Ratio ..............6-8 6.1.4. VBI Menu ...............6-9 6.1.5. Analog Interface Menu ..........6-16 6.2. Video Engine ..............6-23 6.2.1. General menu ............... 6-24 Scopus Documents (P/N 100673) Page iii...
  • Page 8 User Manual Front Matter 6.2.2. Capped-VBR Menu ............6-33 6.2.3. Dual Pass – VBR Menu ..........6-35 6.2.4. Advanced Menu ............6-38 ............7-1 Chapter 7. Audio Menu 7.1.1. Source ................7-7 7.1.2. Test ................7-9 7.1.3. Volume ................ 7-10 7.1.4.
  • Page 9 Drop Entry Menu (front-panel) ........8-35 8.5.4. Adding and Dropping Entries (web-management) .... 8-36 8.6. Alarm Configuration Menu ..........8-39 8.6.1. Alarm Setting Menu ............8-40 8.7. Display Contrast Menu ..........8-42 8.7.1. Set Contrast ..............8-42 Scopus Documents (P/N 100673) Page v...

  • Page 10: List Of Figures

    Front Matter LIST OF FIGURES Figure 1-1: UE-9000 Device ............... 1-7 Figure 1-2: UE-9000 Front View ............1-7 Figure 1-3: UE-9210 Rear New – MPEG-2 DVB Analog ......1-9 Figure 1-4: UE-9210 Rear View – New MPEG-2 CV+SDI DVB ....1-9 Figure 1-5: UE-9210 Rear View –New MPEG-2 DVB ......
  • Page 11 Universal Encoder Platform Figure 4-1: "Save Changes" and "Drop Changes" Buttons ....4-27 Figure 4-2: UE-9000 Root Menu Tree ..........4-30 Figure 4-3: Web-Based Management Display – Main Menu ....4-31 Figure 4-4: Web-Based Management Main Menu Tree Structing ... 4-32 Figure 4-5: Preset Menu Tree ............
  • Page 12 User Manual Front Matter Figure 5-5: Scrambling Menu Display ..........5-8 Figure 5-6: Scrambling Activation Field Display ........5-11 Figure 5-7: PID List Table Display ............5-14 Figure 5-8: Services Menu Display – Add Service ....... 5-17 Figure 5-9: Services Menu Display – Drop Service ......5-20 Figure 6-1: Video Parameters Menu Display –...
  • Page 13 Compact Flash-Treiber ............C-8 Abbildung C-4: Netzversorgung Abdrückschraube (Ground Jackscrew) zum Erdungsanschluss ............C-10 Figure D-1: Adding a New Elementary Stream ........D-2 Figure D-2: Bit-Rate Consumption Calculation Formula ......D-2 Figure E-1: UE-9000 Clock Interface Synchronization ......E-1 Scopus Documents (P/N 100673) Page ix...
  • Page 14 User Manual Front Matter LIST OF TABLES Table 1-1: UE-9000 User Manual Terms and Abbreviations......xii Table 6-1: VBI Lines Available Values ..........6-13 Table 6-2: Automatic Resolution Values ..........6-29 Table 7-1: Channel #1 Source Vs. Channel #2 Source ......7-8 Table 7-2: Channel #2 Source Vs.

  • Page 15: Site Preparation

    UE-9000 Universal Encoder Platform INTRODUCTION Scopus Video Networks Ltd. takes great pride in delivery of its products and makes every endeavor to ensure your full satisfaction. On behalf of the whole Scopus team, we would like to extend our congratulations on your investment in the UE-9000 Series of Universal Encoders.
  • Page 16 User Manual Front Matter ERMS AND BBREVIATIONS Table 1-1: UE-9000 User Manual Terms and Abbreviations ESCRIPTION ESCRIPTION Asynchronous Serial Interface Program Association Table ATSC Advanced Television Systems Pulse Code Modulation Committee Composite Video interface Program Clock Reference Conditional Access Packet Identifier...
  • Page 17 • Send the item to Scopus Video Networks with the number included in the accompanying documentation (shipping and customs forms). Customer Support Contact Information Scopus Video Networks Ltd.
  • Page 18 User Manual Front Matter EC Declaration of Conformity Page xiv (Rev. 6.0/ SW v2.3.5/ February 2008)
  • Page 19 (6) months from date of repair or until the end of the original warranty period, whichever is the later date. SCOPUS Video Networks Ltd. sole liability under this warranty shall be limited to the repair or replacement with equivalent units at SCOPUS Video Networks Ltd. facilities, of any product or parts thereof that do not conform to SCOPUS Video Networks Ltd.
  • Page 20 Green Procurement Policy As part of its commitment to comply with global environmental initiatives, Scopus will continue to actively work with its supply chain to ensure the ongoing compliance with EU directives as well as the procurement and utilization of reliable, environmentally responsible alternatives to hazardous substances.

  • Page 21: Chapter 1. Overview

    The platform enables a smooth migration path from MPEG-2 to H.264, allowing either or both encoding formats to be transmitted concurrently over ASI or IP networks. The UE-9000 can be integrated into an open or closed-loop statistical- multiplexing architecture to provide superior image quality.

  • Page 22: Highlights And Options

    1.1. IGHLIGHTS AND PTIONS The UE-9000 Universal Encoder, housed in a one-rack unit platform, provides broadcasters with a smooth migration path from MPEG-2 to H.264 format. Even so, enables concurrent transmission of either or both formats. The Universal Encoder platform provides broadcasters with the following capabilities: •...

  • Page 23: Applications

    UE-9217 - includes MPEG-2 encoding with DVB-S, DVB-DSNG standards, and migration path to DVB-S2 standards. It provides IF or L-Band, as well as IP outputs. Thus encoder is featured by having low-delay mode, cascading capabilities, and outstanding video quality. Scopus Documents (P/N 100673) Page 1-3...

  • Page 24: Ue-94X0 - H.264 Encoding

    The UE-94x0 families also consists of the UE-9410, a single encoder supporting one CBR H.264 channel. H.264 statistical multiplexing will be available in future release. For more information, please contact Scopus marketing. 1.2.4. UE-93xx Hybrid H.264 and MPEG-2 encoding The UE-93xx family is a hybrid encoder that enables smooth migration between MPEG- 2 and H.264 Encoding.

  • Page 25: Ue-98X0 - Hd H.264 Encoder

    • PC Terminal Control - Supports PC terminal control from a standard PC terminal (over RS-232). The terminal provides access to control and monitor functionalities that are not available when using any UE-9000 front panel feature. AUTION PC T SING...

  • Page 26: Remote Management

    Where IP_address is the IP address of the UE-9000. • Scopus NMS-control – provides a menu and dialog-driven interface which allows controlimg, modifing, and upgrading the UE-9000. • SNMP – Allows managenet though SNMP commands.

  • Page 27: Mechanical Structure

    ECHANICAL TRUCTURE Housed in a true 1RU slim-line chassis and featuring power consumption of less then 30W per channel, the Universal Encoder fully integrates with the Scopus product platform. Figure 1-1: UE-9000 Device 1.4.1. Front Panel The front panel allows control using: four-way touch pad, an [Enter] key, and an [Esc] key.

  • Page 28: Rear Panel

    The rear panel contains all required input and output connectors. The AC connector and power switch are also located on the rear panel. The different UE-9000 Series modules present various rear panels, as requirements of inputs and connectors vary. The following images illustrate examples of rear panels: •...

  • Page 29: Figure 1-3: Ue-9210 Rear New - Mpeg-2 Dvb Analog

    UE-9000 Universal Encoder Platform Figure 1-3: UE-9210 Rear New – MPEG-2 DVB Analog Figure 1-4: UE-9210 Rear View – New MPEG-2 CV+SDI DVB Scopus Documents (P/N 100673) Page 1-9...

  • Page 30: Figure 1-5: Ue-9210 Rear View -New Mpeg-2 Dvb

    User Manual 0BOverview Figure 1-5: UE-9210 Rear View –New MPEG-2 DVB Figure 1-6: UE-9240 Rear View –QUAD MPEG-2 DVB SD1 Page 1-10 (Rev. 6.0/ SW v2.3.5/ February 2008)

  • Page 31: Figure 1-7: Ue-9240 Rear View -Quad Mpeg-2 Dvb Analog

    UE-9000 Universal Encoder Platform Figure 1-7: UE-9240 Rear View –QUAD MPEG-2 DVB Analog Figure 1-8: UE-9240 Rear View –QUAD MPEG-2 DVB CV+SD1 Figure 1-9: UE-9500 Rear View –new Audio Scopus Documents (P/N 100673) Page 1-11...

  • Page 32: Figure 1-10: Ue-9818 Rear View

    User Manual 0BOverview Figure 1-10: UE-9818 Rear View Page 1-12 (Rev. 6.0/ SW v2.3.5/ February 2008)

  • Page 33: Model Options

    UE-9000 Universal Encoder Platform 1.5. ODEL PTIONS The following sections detail each UE-9000 Series module for basic and software- licensed features. The available modules in the UE-9000 Series are: • UE-9210 – MPEG-2 single encoder (Section 1.5.1.) • UE-9220 – MPEG-2 dual encoder (Section 1.5.2.) •...

  • Page 34: Ue-9210 Interfaces And Features

    User Manual 0BOverview 1.5.1. UE-9210 Interfaces and Features The UE-9210 is an MPEG-2 encoder supporting a single video-channel – C/V and/or SDI inputs 1 and two Analog stereo channels or four digital Stereo audio channels. The UE-9210 basic and software-licensed features are the following: Basic Features: Software-Licensed Features: •...

  • Page 35: Ue-9220 Interfaces And Features

    Dual MPEG-2 video-channels • 1 statistical-multiplexing channel encoding • Video format 4:2:0 • Analog and/or SDI inputs Consult Scopus for migration to statistical including TBC multiplexing channel. • audio channels • ASI cascading and multi-services (MPEG-1 Layer 2 or AAC-LC dual channels) •...

  • Page 36: Ue-9240 Interfaces And Features

    User Manual 0BOverview 1.5.3. UE-9240 Interfaces and Features The UE-9240 is a quadrate encoder supporting up to four video channels and eight digital or four analog audio channels. . The UE-9240 basic and software-licensed features are the following: Basic Features: Software-Licensed Features: •...

  • Page 37: Ue-9310 Interfaces And Features

    DVB subtitle Hardware options • • DS3 Leased-line connection (ATM AAL-1 protocol) • 48 Volt Power Supply (instead of 110/220 Volt) • Dual Quad Audio Card 8 Digital/Embedded stereo inputs OR 8 analog stereo inputs Scopus Documents (P/N 100673) Page 1-17...

  • Page 38: Ue-9410 Interfaces And Features

    User Manual 0BOverview 1.5.5. UE-9410 Interfaces and Features The UE-9410 is an H.264 encoder supporting a single video-channel – C/V Channel 1 and two analog or four digital audio channels. The UE-9410 basic and software-licensed features are the following: Basic Features: Software-Licensed Features: •...

  • Page 39: Ue-9420 Interfaces And Features

    DVB subtitle Hardware options • DS3 Leased-line connection (ATM AAL-1 protocol) • 48 Volt Power Supply (instead of 110/220 Volt) • Dual Quad Audio Card 8 Digital/Embedded stereo inputs OR 8 analog stereo inputs Scopus Documents (P/N 100673) Page 1-19...

  • Page 40: Ue-9215 Interfaces And Features

    User Manual 0BOverview 1.5.7. UE-9215 Interfaces and Features The UE-9215 is an MPEG-2 encoder supporting one video-channel, as well as analog or two digital audio channels. Video interface can be either: dual SDI, dual C/V, or a single SDI and a single C/V. The UE-9215 basic and software-licensed features are the following: Basic Features: Software-Licensed Features:...

  • Page 41: Ue-9216 Interfaces And Features

    DVB subtitle Hardware options • DS3 Leased-line connection (ATM AAL-1 protocol) • 48 Volt Power Supply (instead of 110/220 Volt) • Dual Quad Audio Card 8 Digital/Embedded stereo inputs OR 8 analog stereo inputs Scopus Documents (P/N 100673) Page 1-21...

  • Page 42: Ue-9217 Interfaces And Features

    User Manual 0BOverview 1.5.9. UE-9217 Interfaces and Features The UE-9217 is an MPEG-2 encoder supports a single video-channel and DVB-S interface. The UE-9217 basic and software-licensed features are the following: Basic Features Software-Licensed Features • 1 video-channel encoding • ASI cascading MPEG-2 •...

  • Page 43: Ue-9318 Interfaces And Features

    VITC, and Teletext inputs OR 8 analog stereo inputs • low-latency mode (Only for MPEG-2) • Web-management • GPI dry contact alarm output • low speed data • Exteranl SNMP control • DVB subtitle Scopus Documents (P/N 100673) Page 1-23...

  • Page 44: Ue-9500 Interfaces And Features

    User Manual 0BOverview 1.5.11. UE-9500 Interfaces and Features The UE-9500 is an audio-only encoder supporting eight digital or four analog audio channels. The UE-9500 basic and software-licensed features are the following: Basic Features Software-Licensed Features • Up to 8 audio channels (MPEG-1 •...

  • Page 45: Ue-9810 Interfaces And Features

    • 48 Volt Power Supply (instead • low speed data of 110/220 Volt) • Exteranl SNMP control • Dual Quad Audio Card 8 • DVB subtitle Digital/Embedded stereo inputs OR 8 analog stereo inputs Scopus Documents (P/N 100673) Page 1-25...

  • Page 46: Ue-9818 Interfaces And Features

    User Manual 0BOverview 1.5.13. UE-9818 Interfaces and Features The UE-9818 is an MPEG-2 encoder supports a single video-channel and DVB-S interface. The UE-9818 basic and software-licensed features are the following: Basic Features Software-Licensed Features • Single H.264 video-channel • DVB-DSNG 8PSK/16QAM encoding modulation •...

  • Page 47: Encoder Inputs

    Interface – ITU-R 656 SPECT ATIO • 16:9 • UDIO • Input formats: Analog AES/EBU Embedded ASI I NPUT • Built-in multiplexer for encoder cascading • Passive loop-through for cascading redundancy • Up to 50 Mbps Scopus Documents (P/N 100673) Page 1-27...

  • Page 48: Encoder Outputs

    User Manual 0BOverview EATURE APABILITIES LOCK • Black Burst (C/V) formats: • • NTSC • Level – 1.0 Vpp • Impedance – 75Ω unbalanced • Interface – ITU-R 624 1.6.2. Encoder Outputs EATURE APABILITIES ASI O UTPUTS • Physical line rate – 270 Mbps •...

  • Page 49: Modulator Characteristics

    ODULATOR • IF output 70 to 140 MHz (50 to 180 MHz) • Output power ranges from -35 dBm to 5 dBm – 1 dB step • L-band monitor -45 dBm at IF frequency Scopus Documents (P/N 100673) Page 1-29...

  • Page 50: Processing Capabilities

    User Manual 0BOverview EATURE APABILITIES UE-9216 IF M ODULE • QPSK per DVB-S (EN 300-421) • Optional 8PSK and 16 QAM • Output frequency: 70±18 MHz • Symbol-rate range: 1-15 Msps • Output power: 0-(-12) dBm (1dB steps) • L-band monitor: -40 dBm at L-band frequency 1.6.4.
  • Page 51 48 KHz • Audio mode: • L,R Mono • Mono Stereo • Single Channel • Dual Channel • Joint Stereo UDIO THROUGH • Dolby-E pass through • Linear PCM pass through • Dolby Digital 5.1 Scopus Documents (P/N 100673) Page 1-31...
  • Page 52 User Manual 0BOverview EATURE APABILITIES ULTIPLEXING • PSI/SI tables: PAT, PMT, CAT, NIT, SDT, EIT, TDT • Advanced Multiplexing – Up to 8 services • Encoding and multiplexing is compliant with: ISO/IEC 13818(MPEG-2) DVB MPEG-2 implementation guidelines (DVB 001) UDIO IDEO ELAY •...

  • Page 53: Control And Monitoring

    1 configurable output for statuses and faults (GPI/O) ONFIGURATION ETUPS • Up to 5 different setup configurations 1.6.6. BIT (Built In Tests) EATURE APABILITIES UDIO • Audio test tone IDEO • Video test patterns: Color Bar Blue Black Flicker 1.6.7. Scopus Documents (P/N 100673) Page 1-33...

  • Page 54: Power And Physical Specifications

    User Manual 0BOverview Power and Physical Specifications EATURE APABILITIES IMENSIONS 1U height, 19”width 439x44x489 mm (WxHxD) EIGHT 10 lbs; 5 kg • Voltage: OWER • 90 - 260V AC • -48 DC (optional) • Power consumption: • UE-9210 – Up to 60W •...

  • Page 55: Chapter 2. Installation

    Do not move or ship equipment unless it is correctly packed in its original wrapping and shipping containers. • Only Scopus trained personnel can undertake equipment service and maintenance. • To prevent damage by lightning, ground the unit according to local regulations.

  • Page 56: Inventory Check

    American code cable (U.S.) • Power cable (other countries) DC power cable (for DC-powered encoders) Power Cable User Manual for UE-9000 Universal Encoders Platform RJ-45 to DB9 converter AUTION F ANYTHING IS MISSING OR DAMAGED DO NOT CONTINUE WITH THE INSTALLATION...
  • Page 57 It is recommended to install the encoder within 1.5m (approx. 5 feet) from an easily accessible grounded AC outlet. For rack installation, ensure that a designated 19" rack is fully prepared for installation. Ensure sufficient space behind the rack for easy access with installation and maintenance procedures. Scopus Documents (P/N 100673) Page 2-3...

  • Page 58: Preparing The 19" Rack And Mounting Ue-9000 Units

    ACK AND UE-9000 MOUNTING UNITS The following sections detail the installation of a UE-9000 unit in a 19" rack using the Scopus mounting slides. 2.4.1. Installing the Brackets To prepare the UE-9000 for rack installation, perform the following: 1. Fasten a pair of brackets to both side rails of the rack housing by using two flat-washer screws for each side.

  • Page 59: Mounting Ue-9000 Units In The 19" Rack

    To Load the 19”/42U rack with the UE-9000 units perform the following: 1. Verify using of appropriate brackets and L” shape slides according to 2.4.1 and 2.4.2.sections. 2. Mount the UE-9000 in groups of five units (maximum) upon each pair of brackets. 3. Leave ‘one-unit-space’ between each group of five units.

  • Page 60: Installaing The Cf Card

    CARD AILING TO DO SO CAN RESULT IN CURRUPTION OF DATA ON THE CARD 1. Open the plastic protector on the right side of the UE-9000 front panel. 2. Firmly insert CF card into the drive to ensure contact. Page 2-6...

  • Page 61: Electrical Installation

    Connecting an AC power cable to the UE-9000 AC connector makes the encoder ground connection. If the UE-9000 is fitted with a –48V DC power supply, see section 2.6.1.2. When the UE-9000 is rack mounted, the jackscrew (see Figure 2-4) must be connected to the rack housing, which in turn must be correctly grounded.

  • Page 62: Figure 2-4: Power Supply Jackscrew Ground Connection

    AC P ONNECTING TO OWER OURCE 1. Connect the AC power cable to the UE-9000 power connector on the rear (see Figure 2-4). 2. Connect the other end of the cable to the AC power source. 2.6.1.2. DC Power and Ground Connections The -48 DC power and ground connections to the encoder must be supplied by an external 48v DC power supply.

  • Page 63: Initialization And Configuration

    In order to establish a connection and start initial encoder configuration of the encoder, perform the following: 1. Connect an Ethernet cable connection from the UE-9000 to a PC station or a VLAN connection. The Ethernet cable is connected to the Ethernet management port (see Figure 2-5).
  • Page 64 User Manual 1BInstallation 2. Initialize a unit control interface: • To initiate work with the front panel interface, browse the menus, while Section 3.1 details the front-panel control interface objects and elements. Chapter 4 to Chapter 8 detail the different menus, options, and parameters.
  • Page 65 RONT ANEL ONTROL NTERFACE The front panel of the UE-9000 provides extensive local control abilities along with convenient monitoring of statuses and operations. The section is divided as follows: • Control and Displays – Details the front-panel touchpad keys and their functions (see Section 3.1.1)

  • Page 66: Chapter 3. Control Interfaces

    User Manual 2BControl Interfaces 3.1.1. Controls and Displays The front panel interface allows setting the encoder parameters through the control elements, indicators, and display, located on the front panel (see Figure 3-1). Figure 3-1: Front Panel The front panel contains the following display and control elements: •...

  • Page 67: Figure 3-2: Alphanumeric Touch Pad

    The [F2] short cut key is currently used only for DSNG units. • Alphanumeric Touch Pad – Use for entering both numbers and letters, when configuring menus and parameters. Figure 3-2: Alphanumeric Touch Pad Scopus Documents (P/N 100673) Page 3-3...

  • Page 68: Screen Types

    User Manual 2BControl Interfaces • [1] To [9] Keys – Each alphanumeric key contains four to five different characters, encompassing the entire English alphabet. Selecting a specific character located in a certain key is performed by repeatedly pressing the key until the relevant character is displayed. •...
  • Page 69 (or green) for the visible four items and light grey for the scrolled items. The two screen-shot types are separated by a scroll icon ( ). The following sections detail the different front panel screen types. Scopus Documents (P/N 100673) Page 3-5...

  • Page 70: Figure 3-3: Menu Navigation Screen Example

    User Manual 2BControl Interfaces 3.1.2.1. Menu Navigation Screen The Menu Navigation screen enables navigating through the tree structure of the encoder. Although this menu may contain parameters, it is characterized by leading to other menus (see Figure 3-3). Configuration Transport Stream Video Audio Output Interface...

  • Page 71: Figure 3-4: Edit Menu Screen Example

    Press [Enter] to select the highlighted editable option (editable options are marked with a pencil icon ); a parameter-editing screen is displayed. For information on the different Edit Screens, see Sections 3.1.2.4 - 3.1.2.5. Scopus Documents (P/N 100673) Page 3-7...

  • Page 72: Figure 3-5: Table Menu Screen Example

    User Manual 2BControl Interfaces 3.1.2.3. Table Menu Screen The Table Menu screen displays information about the menu’s parameters in a table format. Configurable tables enable to select an item from a chosen table and access an Edit Menu screen for setting the entry values (see Figure 3-5). Service Element Rate...

  • Page 73: Figure 3-6: Edit Value Screen Example

    [Enter]. • Once setting parameter's.value, the user must save the changes within 60 seconds or the new configuration is lost. For details on saving the changes, see Section 4.1.1. Scopus Documents (P/N 100673) Page 3-9...

  • Page 74: Figure 3-7: Select Value Screen Example

    User Manual 2BControl Interfaces 3.1.2.5. Select Value Screen The Select Value screen displays a list of values and enables selecting one of the parameter’s new values (see Figure 3-7). Title Choice Choice 2 Choice 3 Choice 4 Figure 3-7: Select Value Screen Example A.

  • Page 75: Initializing The Front Panel

    If all systems function, the Status OK message is displayed in the idle screen. Whenever an alarm is raised, the idle screen displays an Alarm Active message. Press [Enter]. The UE-9000 Root menu is displayed. • The following image displays the root menu of the UE-9210 unit:...

  • Page 76: Figure 3-8: Web-Based Management Window - General View

    User Manual 2BControl Interfaces 3.2. ASED ANAGEMENT ONTROL NTERFACE The encoder's Web-Based Management interface allows controlling, configuring, and monitoring of the Encoder through a remote computer, accompany with a standard web browser and a PC. (See Figure 3-8). Figure 3-8: Web-Based Management Window – General View The web-based management is best viewed by Internet Explorer 6.0.

  • Page 77: Controls And Displays

    For additional parameters, such as advanced configuration parameters, another parameter-section is displayed in the Explorer window (see Figure 3-9). Figure 3-9: Web-Based Management Window – Status and Configuratiin Sections The following sections detail the various web-management display objects. Scopus Documents (P/N 100673) Page 3-13...

  • Page 78: Figure 3-10: Web-Based Management Title

    The web-based management is divided into display sections for easy orientation and to enable user-friendly control interface. The following paragraphs detail the various sections. ITLE A static title to the web-based management, displays the Scopus logo and the device's type (UE-9000, see Figure 3-10). Figure 3-10: Web-Based Management Title ENU AND The tabs surround the Explorer window section (see the following paragraph).
  • Page 79 The parameters are listed in the Explorer-window section. The list of parameters is framed with a light blue line. If there is more than one parameter group, the groups are listed in different frames. Each frame is titled according to its parameters group. Scopus Documents (P/N 100673) Page 3-15...
  • Page 80 User Manual 2BControl Interfaces • Dynamic Sub-Menu and Parameter Section Displays: The available sub-menus are listed on the left side of the Explorer window (these lists are usually dynamic and may allow adding and dropping entries from the list). When selecting a hyperlink from the list, the hyperlink is highlighted and its related parameter sections are displayed on the right side of the Explorer window.

  • Page 81: Figure 3-12: Status Menu

    Section 3.2.1.2. Figure 3-13: 'Save' Bar Once setting paramete's value, the user must save the changes within 60 seconds or the new configuration is lost. For details on saving the changes, see Section 4.1.1. Scopus Documents (P/N 100673) Page 3-17...

  • Page 82: Figure 3-14: Main-Menu Tabs

    2BControl Interfaces 3.2.1.2. Control Elements The different display sections use different control elements to navigate, view, and manage the UE-9000 configuration. The main-menu tabs are light blue tabs allowing the user to select one of the main menus in the encoder (such as video, audio, unit, and so on).

  • Page 83: Figure 3-16: Sub-Menu Hyperlink

    The hyperlinks allow adding new encoded service to the service list. In such cases, the hyperlink does not lead to a new parameter-Explorer window but displays the parameter sections in the same Explorer window (see Figure 3-17). Figure 3-17: Dynamic Hyperlink Scopus Documents (P/N 100673) Page 3-19...

  • Page 84: Figure 3-18: Edit-Value Parameter

    User Manual 2BControl Interfaces ALUE ARAMETER The parameter sections in the Explorer window display lists of editable parameters, available for user configuration. The edit-value parameters provides a free text field for typing the required value (from within a given range). The edit-value parameter is divided into two sections: •...
  • Page 85 The 'Save' bar holds the 'Refresh' button (see Section 3.2.1.1). Clicking this button refreshes the web page. This is useful for updating changes that were configured in the front panel. This button is available at all times. Figure 3-22: Refresh Button Scopus Documents (P/N 100673) Page 3-21...

  • Page 86: Initializing Web-Based Management

    Scopus strongly recommends the user to change these default parameters as soon as possible, to prevent information or security problems. 3.2.2.1. Configuring the Ethernet Parameters 1. Power up the UE-9000, and Wait for the LCD screen to display the initialization screen. Rate 4.620 Res F720 Status OK...

  • Page 87: Operation And Management

    Once the IP definitions are set according to the network, the user can access the web-based management interface by performing the following: 1. Launch the web browser. 2. In the Address field, enter the UE-9000 IP Address, in the following format: http://xxx.xxx.xxx.xxx (where xxx.xxx.xxx.xxx is the IP address of the Management port).
  • Page 88 (such as alarms status, permissions list, and so on. See Section 4.6.) The front panel control interface contains all the existing UE-9000 control parameters, while the web-management interface allows easy access to the same parameters from a remote computer. Therefore these two interfaces are intertwined.

  • Page 89: Saving Configuration

    ONFIGURATION Whether it's entering new parameters through the front panel or submitting them through the web, many UE-9000 configuration procedures require saving. Encoder Changes can be saved within 60 seconds after the most recent change. During these 60 seconds, the UE control interfaces remind the user to save with a blinking LED (the Warning LED) on the front panel and a shifting background for the Save and Drop buttons in the web-management.

  • Page 90: Front Panel Save Menu

    4.1.1. Front Panel Save Menu The Save menu allowing recent configuration. When changing a parameter in the UE-9000, the Warning LED blinks green for 60 seconds. During this time, the user must save the change. After executing any option from the Save menu – Save, Drop, or Cancel – the display returns to the initial idle screen.

  • Page 91: Web-Based Management Save Procedure

    • The Refresh button (to the right of the Save Changes button) allows refreshing all parameter values. This is useful for when new configuration setting has been set and saved through the front panel. Scopus Documents (P/N 100673) Page 4-27...

  • Page 92: Root Menu

    User Manual 3BOperation and Management 4.2. All encoder parameters are organized within navigation menus, sub-menus, and edit menus, categorized according to parameters type and affected interfaces. The Root menu is a general name for the initial screen enabling access to all other menus.

  • Page 93: Front Panel Root Menu

    (see Section 4.5). • Status Menu – Allows the user to monitor the encoder information, such service information, unit, alarms, temperature, access authorizations (see Section 4.6). Scopus Documents (P/N 100673) Page 4-29...
  • Page 94 3BOperation and Management Figure 4-2 illustrates the front panel tree structure from the Root menu. Figure 4-2: UE-9000 Root Menu Tree The Modulator menu is available for encoder modules equipped with a modulator card. The menu options change according to the modulator type (L-Band or IF).

  • Page 95: Web-Based Management Main Screen

    These tabs are displayed specifically according to the selected menu tab (for example, Audio menu tabs has the Aud1, Aud2, Aud3, and Aud4 sub-tabs). Selecting a sub-tab displays its general parameters and Scopus Documents (P/N 100673) Page 4-31...
  • Page 96 Explorer window (see details in Section 4.4 and 4.5). Figure 4-4 illustrates the Root Menu of the UE-9000 web-based management. The figure is divided into different sections, displaying the main and sub-menus of the Configuration section as well as the informative tables in the Status section.

  • Page 97: Preset Menu

    Universal Encoder Platform 4.3. RESET The Preset menu allows the user to save, load, delete, and rename the UE-9000 preset files containing the setup parameters. The Preset menu contains the following menus (see the tree structure in Figure 4-5): •...
