Scopus CODICO E-1710 User Manual

Compact dsng encoders
Hide thumbs Also See for CODICO E-1710:

Advertisement

Quick Links

Download this manual
®
CODICO
E-1710&1720
Compact DSNG Encoders
U
M
SER
ANUAL
S
D
(
/
100401)
COPUS
OCUMENTS
P
N
R
. 1.3 / J
2005)
EV
ULY

Advertisement

loading
Need help?

Need help?

Do you have a question about the CODICO E-1710 and is the answer not in the manual?

Questions and answers

Related Manuals for Scopus CODICO E-1710

Summary of Contents for Scopus CODICO E-1710

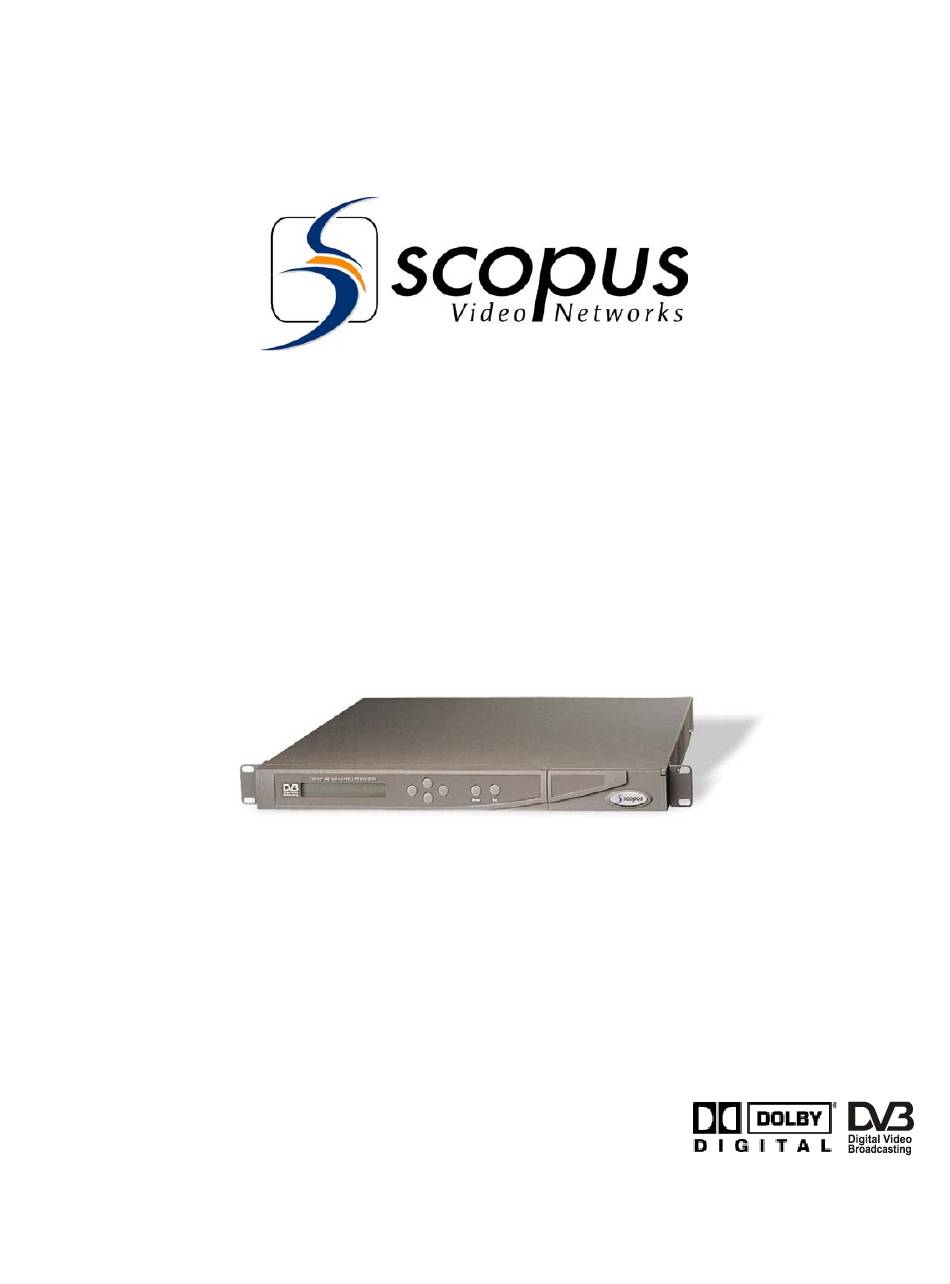

  • Page 1 ® CODICO E-1710&1720 Compact DSNG Encoders ANUAL 100401) COPUS OCUMENTS . 1.3 / J 2005)
  • Page 3 ® CODICO E-1710&1720 Compact DSNG Encoders ANUAL 100401) COPUS OCUMENTS . 1.3 / J 2005)
  • Page 5 © 2005 Scopus Video Networks Ltd. All rights reserved. Scopus Video Networks Ltd. Reserves the rights to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty.
  • Page 7 Scopus Video Networks Ltd. takes great pride in delivery of its products, and makes every endeavor to ensure its clients full satisfactory. On behalf of all the Scopus team, we would like to extend our congratulations on your investment in the CODICO E-1710/1720 Compact DSNG Encoders.
  • Page 8 User Manual Front Matter RODUCT ESCRIPTION RSW-7x00 Series Redundancy Switches NMS-4000 Family Complete Network Management System CAS-5000 Series Conditional Access System SM-30x0 Series Statistical Multiplexing Systems SI-3050 Series PSI/SI Generator Applications Page ii Rev. 1.3 / July 2005)
  • Page 9 E-1710&1720 Compact DSNG Encoders MANUAL SCOPE AND STRUCTURE The User Manual for the CODICO E-1710/1720 Compact DSNG Encoders provides instructions for qualified installation, service and operation technicians to facilitate optimum performance of the E-1710/1720 in a Digital Video Broadcasting System.
  • Page 10 Send the item to Scopus Video Networks with the RMA Number included in the accompanying documentation (shipping and customs forms). Customer Support Point Of Contact (POC) Scopus Video Networks Inc.
  • Page 11 SCOPUS Video Networks Ltd. sole obligation under this warranty is to be the supplier of the product to the CUSTOMER and to provide such services as set out in this warranty on the SCOPUS Video Networks Ltd. terms and conditions provided for herein. In no event will SCOPUS Video Networks Ltd.
  • Page 12 User Manual Front Matter TABLE OF CONTENTS Chapter 1 Overview ..................... 1-1 1.1. General Information ....................... 1-1 1.1.1. Highlights and Benefits..................1-2 1.1.2. Applications ......................1-5 1.1.2.1. Single Path DSNG Uplink Application ............1-5 1.1.2.2. Cascading E-1710 Encoders ................1-7 1.1.2.3. Input Encoding Capability ................1-7 1.2.
  • Page 13 Video Configuration Menu................. 3-10 3.2.2.1. Video Format Configuration ................3-12 3.2.2.2. Video Source Configuration................3-12 3.2.2.3. Output Rate Configuration ................3-13 3.2.2.4. Video Rate Configuration................3-13 3.2.2.5. Video Resolution Configuration..............3-14 3.2.2.6. Video Profile Configuration ................3-15 Scopus Documents (p/n 100401) Page vii...
  • Page 14 User Manual Front Matter 3.2.2.7. Luminance Temporal Configuration...............3-15 3.2.2.8. Chrominance Temporal Configuration ............3-16 3.2.2.9. Luminance Vertical Configuration ..............3-16 3.2.2.10. Chrominance Decimation Configuration .............3-17 3.2.2.11. Horizontal Filter Configuration ..............3-17 3.2.3. Audio Configuration Menu.................3-18 3.2.4. Audio MUSICAM Configuration Sub-Menu .............3-20 3.2.4.1. Audio #1, #2 Source Configuration ..............3-20 3.2.4.2.
  • Page 15 3.3.2.5. Audio Channels Display................. 3-59 3.3.2.6. DVB Scrambler Board Display ..............3-59 3.3.2.7. Temperature Display ..................3-59 3.4. Encoder Test Menu .......................3-60 3.4.1. Test menu Audio test..................3-61 3.4.2. Test menu Video test ..................3-61 3.5. Modulator Menu......................3-62 Scopus Documents (p/n 100401) Page ix...
  • Page 16 User Manual Front Matter 3.5.1. Modulator Configuration Menu ................3-64 3.5.1.1. Symbol Rate Configuration ................3-64 3.5.1.2. Output Rate Configuration................3-64 3.5.1.3. Modulation Set-Up..................3-65 3.5.1.4. FEC Modulator Set-Up ...................3-65 3.5.1.5. IF Frequency Set-Up..................3-65 3.5.1.6. L Band Frequency Set-Up................3-66 3.5.1.7. KU Frequency Set-Up..................3-66 3.5.1.8. Output Level Set-Up ..................3-67 3.5.1.9.

  • Page 17: List Of Figures

    E-1710&1720 Compact DSNG Encoders LIST OF FIGURES Figure 1-1: The CODICO E-1710 Compact DSNG Encoders – General View ....1-1 Figure 1-2: Single Path DSNG Uplink Application............1-5 Figure 1-3: CODICO E-1710/1720 Compact DSNG Encoders in an SCPC application..1-7 Figure 1-4: DSNG Encoder - Functional Block Diagram ..........
  • Page 19 E-1710/1720. Figure 1-1: The CODICO E-1710 Compact DSNG Encoders – General View For any type of SNG uplink system, the E-1710/1720 fits neatly into the rack, occupying only 1U with no need to provide space for ventilation above or below.
  • Page 20 User Manual Overview 1.1.1. Highlights and Benefits The E-1710/1720 offers 10 bit coding at data rates of up to 52 Mbps while the versatile on-board modulator can handle QPSK transmissions with 8-PSK or 16-QAM modes as an option. A variety of video resolutions are available as standard, as is advanced DNR (Digital Noise Reduction).
  • Page 21 150 mSec (Option). The E-1710 supports the cascading of multiple encoders for a Multi Channel Encoder single MPTS (Multiple Program Transport Stream)-stream Cascading (E-1710 option) output containing programs. Scopus Documents (p/n 100401) Page 1-3...
  • Page 22 User Manual Overview The E-1710/1720 offers variable transmission modes to Satellite Bandwidth increase the bandwidth efficiency: Efficiency Inner Coding Modulation Schemes Baseband Shaping The E-1710/1720 DSNG Encoder offers Frame Synchronization, Frame Synchronization which ensures recovery of sync timing in cases of video signal dropouts.
  • Page 23 CAMERA Analog PRODUCTION or SDI L-Band IRD DECODER SWITCHER MONITOR Monitor E-1710 COMPACT Analog DSNG ENCODER or SDI 70 MHZ - SHF AUDIO MIXER UP CONVERTER DSNG Application using the E-1720 L-Band DSNG Encoder Scopus Documents (p/n 100401) Page 1-5...
  • Page 24 User Manual Overview CAMERA Analog PRODUCTION or SDI L-Band IRD DECODER SWITCHER MONITOR Monitor E-1720 L-BAND Analog DSNG ENCODER or SDI L-BAND BROADCAST AUDIO MIXER Page 1-6 Rev. 1.3 / July 2005)
  • Page 25 (SCPC) or multiple channels (MCPC), multiplexed and/or encrypted and scrambled. Figure 1-3 shows an illustration of an SCPC application. Figure 1-3: CODICO E-1710/1720 Compact DSNG Encoders SCPC application. Scopus Documents (p/n 100401) Page 1-7...
  • Page 26 Technical Support for your particular system requirements. ® The CODICO E-1710/1720 Compact DSNG Encoder is based on the CODICO E-1000 Series Encoders and a built-in DSNG Modulator Unit. Figure 1-4 illustrates the functional structure of the E-1710/1720 and the signal flow path.
  • Page 27 RS-422 OUTPUT (E-1710) (OPTION) CLOCK ASI 1 OUT HIGH SPEED DATA PROGRAM RS-232 IN (E-1710 ONLY) L-BAND OUT SATELLITE MONITORING 24V DC MODULATOR UP-CONVERTER L-BAND OUT MONITOR 10MHz REF CLOCK IF OUT SCR(OPTION) SCRMAMBLER (OPTION) SCR(OPTION) Scopus Documents (p/n 100401) Page 1-9...

  • Page 28: Front Panel

    User Manual Overview 1.3. ECHANICAL TRUCTURE 1.3.1. Enclosure The E-1710/1720 is housed in a ruggedized industrial enclosure, 1 U by 19” (Rack Mount). Featuring heat dissipation capabilities, the E-1710/1720 may be installed without the necessity for spacing between units. This allows increased flexibility for installation of a large number of encoders into limited-space environments.

  • Page 29: Rear Panel

    Video Input Interfaces, see Paragraph 1.4.1. Audio Input Interfaces see Paragraph 1.4.2 E-1710 Data Input Interface, see Paragraph 1.4.3. E-1710 Output Interfaces, see Paragraph 1.4.4. E-1720 Output Interfaces, see Paragraph 1.4.5. E-1710/1720 Control Interfaces, see Paragraph 1.4.6. Scopus Documents (p/n 100401) Page 1-11...
  • Page 30 User Manual Overview 1.4. E-1710/1720 I NTERFACES 1.4.1. Video Input Interfaces The E-1710/1720 DSNG Encoders are provided with a wide range of optional video input panels: Composite/SDI Video Input Panel. Composite/Component Video Input Panel. 1.4.1.1. Composite/SDI Video Input Panel (Option) The Composite/SDI Video Input panel for the E-1710/1720 DSNG Encoders provides full range of video inputs, including analog super-video (S-VHS) interface, analog composite video (CV) interface and serial digital video interface...
