Anzzi FAWN FR-AZ074 Installation Manual

FR-AZ074
Installation Guide
For more information visit
TM
www.ANZZI.com or call
1-844-44-ANZZI
FAWN 4 PC ROMAN TUB FILLER FAUCET

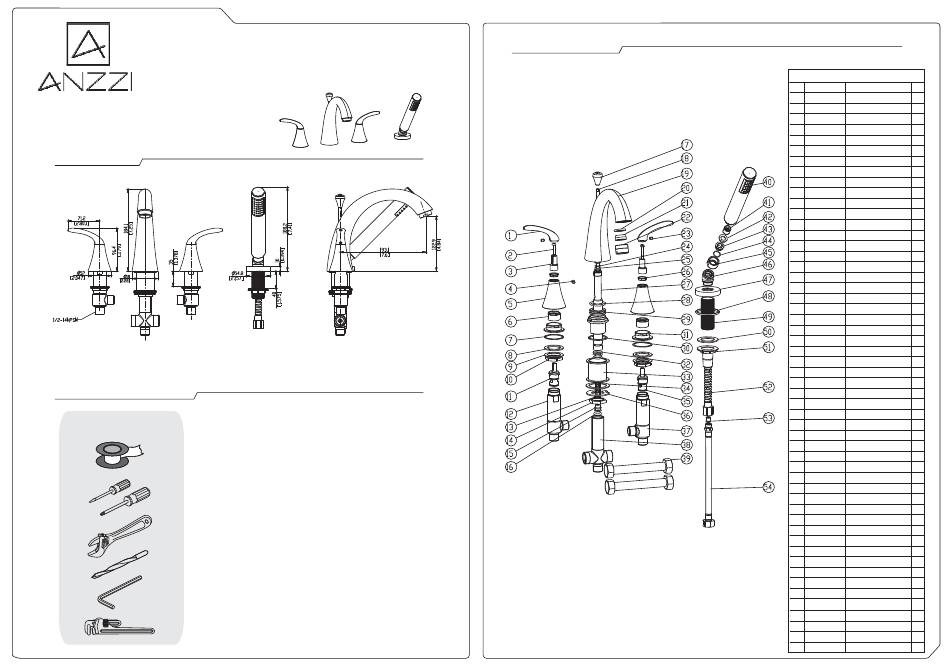

DIMENSIONS

n For Reference only (unit = mm [inch] )

FAUCET MAINTENANCE

CARE INSTRUCTIONS

RECOMMENDED TOOLS
To keep your faucet looking its best, please follow
these simple care instructions:

DO:

1. Remove as much surface dirt and film using
2. Use any of the following to remove tough
3. Once clean, rinse faucet with clear water to

DO NOT:

1. Use abrasive cleansers, cloths, or paper towels.
2. Use any cleaning agents containing acids, polish,
clear water and a soft cotton cloth.
surface film and build-up:
- Mild liquid detergent
- Non-acidic, non-abrasive gentle liquid cleanser
- Non-abrasive liquid polisher.
thoroughly remove cleaner or polish and blot
dry with soft cotton cloth.
waxes, alcohol, ammonia, bleach, solvents or any
other corrosive or harsh chemical cleansers.

EXPLODED DRAWING

Please read the followings before installing and usage.
n Notes For reference only. We reserve the right
:
to make changes without any notice.
NO. Part No Qty
Part Desc
2
CTHZ0474 HANDLE
01
2
CTST0182 SCREW
02
2
03 CTCZ0237 STEM
1
CTST0137 SCREW
04
2
05 CTCZ0163 CAP
2
CTNZ0004 NUT
06
2
CTWR0347 WASHER
07
2
CTWR0276 WASHER
08
2
CTWT0065 WASHER
09
2
10 CTNT0022 NUT
1
ATBA0128 CARTRIDGE
11
1
12 CTPB0500 VAVLE
1
CTBT0070 SPRING
13
1
14 CTNB0156 NUT
1
15 CTDB0133 STOP
1
16 CTRR0139 O-RING
1
17 CTHB0119 PULL ROD
1
CTMT0032 PULL POLE
18
1
19 CTFB0220 BODY
1
20 CTWR0018 WASHER
2 1 1
CTQP0030 AERATOR
1
22 CTXB0021 AERATOR COVER
2
23 CTST0117 SCREW
1
24 CTWB0089 WASHER
2
25
CTRR0138 WASHER
2
26 CTCP0429 CAP
1
27 CTPB0405 SHANK
1
28 CTRR0137 O-RING
1
29 CTTB0035 SEATING
1
30 CTWR0060 WASHER
2
31 CTNB0326 NUT
3
32
CTRR0082 O-RING
1
33 CTCT0035 HOUSING
1
34
CTWR0115 WASHER
1
35 ATBA0127 CARTRIDGE
1
36 CTWT0038 WASHER
1
37
CTPB0501 VAVLE
1
38 CTPB0427 SHANK
2
39
ATBP0157 HOSE
1
40 ATBE0141 SHOWER
1
41
ATBA4028 VAVLE
1
42
CTWR0341 WASHER
1
43
CTSB0157 STEM
1
44
CTRR0009 O-RING
1
45
CTNB0338 NUT
1
46
CTPB0573 CONNECTOR
1
47
CTCB0638 SUPPORTER
1
48
CTWR0114 WASHER
1
49
CTPB0499 CONNECTOR
1
50
CTWR0061 WASHER
5 1 1
CTNB0016 NUT
5 2 1
ATBP0070 HOSE
5 3 1
ATBA0100 VAVLE
5 4 1
ATBP0071 HOSE
