Anzzi FR-AZ975 Installation Manual

FR-AZ975
Installation Guide
For more information visit
www.ANZZI.com or call
1-844-44-ANZZI

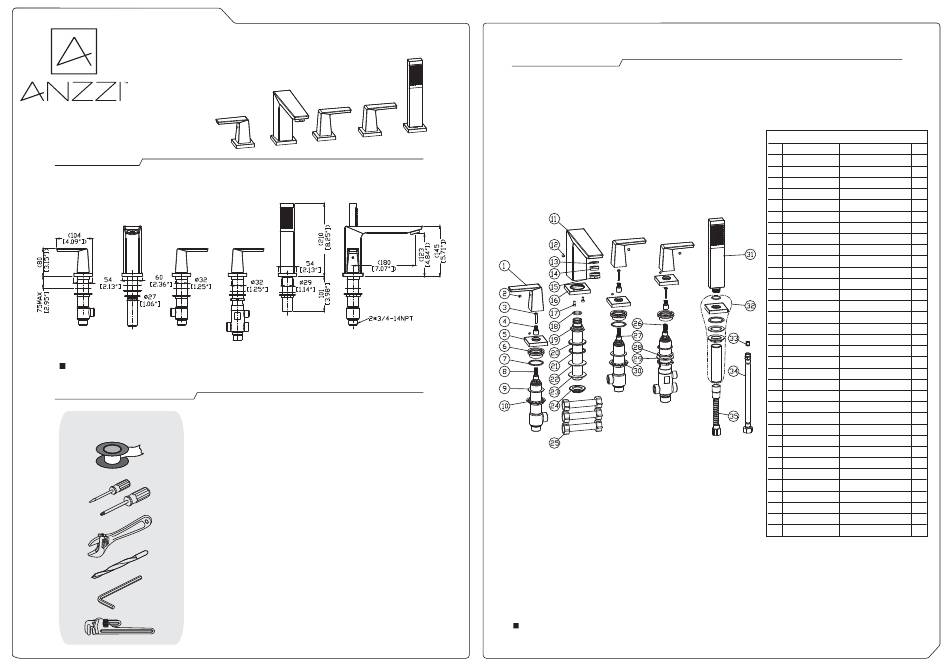

DIMENSIONS

For Reference only (unit = mm [inch] )

FAUCET MAINTENANCE

CARE INSTRUCTIONS

RECOMMENDED TOOLS

To keep your faucet looking its best, please follow
these simple care instructions:
DO:
1. Remove as much surface dirt and film using
clear water and a soft cotton cloth.
2. Use any of the following to remove tough
surface film and build-up:
- Mild liquid detergent
- Non-acidic, non-abrasive gentle liquid cleanser
- Non-abrasive liquid polisher.
3. Once clean, rinse faucet with clear water to
dry with soft cotton cloth.
DO NOT:
1. Use abrasive cleansers, cloths, or paper towels.
2. Use any cleaning agents containing acids, polish,
waxes, alcohol, ammonia, bleach, solvents or any
other corrosive or harsh chemical cleansers.
thoroughly remove cleaner or polish and blot

EXPLODED DRAWING

Please read the followings before installing and usage.
Notes For reference only. We reserve the right :
to make changes without any notice.
NO. Part No Part Desc Qty
CTHZ0350 HANDEL
01 3
CTST4101 SCREW
02 6
CTST1013 SCREW
03 3
CTMB0328 ADAPTER
04 3
CTLZ0020 FLANGE
05 3
06 CTDB0394 BASE SEAT 3
CTWR0060 WASHER
07 3
ATBQ0226 CARTRIDGE(HOT)
08 1
CTWQ0007 WASHER
09 2
10 CTNP0046-XR NUT 1
11 CTFB0224 SPOUT 1
CTST0137 SCREW
12 1
CTWR0036 WASHER
13 1
14 CTQP0030 FLOW REGULATOR 1
15 CTCB0173 HOUSING 1
CTDZ0078 BASE SEAT
16 1
CTST0221 SCREW
17 2
18 CTRR0013 O-RING 1
19 ATBP0182 SHANK 1
20 CTWB0102 GASKET 1
CTWR0270 WASHER
21 1
22 CTWR0090 WASHER 1
23 CTWT0038 WASHER 1
24 CTNB0059 NUT 1
25 ATBP0013 HOSE 3
26 ATBY0174 DIVERTER 1
27 ATBQ0225 CARTRIDGE(COLD) 1
28 CTWR0259 WASHER 1
29 CTWT0053 WASHER 1
30 1
CTNP0046-XD NUT
31 ATBE0210 SHOWER 1
32 ATBD0080 HOLDER 1
33 ATBA0100 CHECK VALVE 1
34 1
ATBP0071 HOSE
1
35 ATBP0070 HOSE
